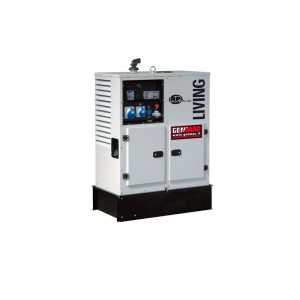

GENMAC LIVING G9KS-M5 THREE-PHASE GENERATOR 8,1KVA

The generator GENMAC Living G9KS-M5 three-phase is equipped with a diesel-powered Kohler stage V engine capable of delivering 8,1KVA with AVR voltage regulator.

The GENMAC Living G9KS-M5 professional high quality silenced diesel generator of the residential series. The Genmac generator is equipped with Kohler oversized motor with water cooling.

Generators GENMAC Living G9KS-M5 are highly reliable machines, built with quality components to be used in professional field, where reliability is essential.

The Stage V engine allows the use of the generator set also for mobile use, for example for road construction sites and rental services. The generator is suitable for applications in different contexts such as: hospitals, industries, shopping centers, hotels, airports, banks, universities, stadiums, offices, etc..

The diesel engine maintains the standard engineering performance expected from Kohler. An advanced injection system uses fuel more efficiently, while high efficiency combustion greatly reduces emissions.

The 8,1KVA Genmac generator is equipped with a liquid-cooled, three-cylinder, horizontal shaft, aluminum head and multiple PTO points for maximum performance.

AVR Voltage Regulator

The AVR is essential to make the generator work at its best, in fact it all needs an electronic control system, an AVR in fact, which ensures the proper functioning of the machine and the electrical network behind it.

The purpose of the AVR, in a current generator, is to keep the output stable. And if its operation is very simple when resistive loads are fed, more complex is the matter in case of mainly inductive loads: the delayed phase shift current counteracts the inductor magnetic field, causing a voltage drop at the alternator terminals; to compensate for this phenomenon, the AVR intervenes automatically by increasing the excitation current, until the output returns to the nominal value. If the load is capacitive, the current acts as a magnetizer for the inductor causing an increase in voltage, and the AVR intervenes by reducing the excitation current.

TECHNICAL CHARACTERISTICS GENERATOR GENMAC Living G9KS-M5 8,1KVA

Phase Type: SinglePhase/ThreePhase
SinglePhase Continuous Power: 2.6KVA / 2KW
SinglePhase Maximum Power: 2.7KVA / 2.2KW
ThreePhase Continuous Power: 7.8KVA / 6.2KW
ThreePhase Maximum Power: 8.1KVA / 6.5KW
Motor: Kohler KDW1003
Emissions Standard: Stage V
Starting: Electric
Power Supply: Diesel

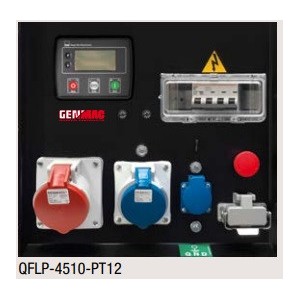

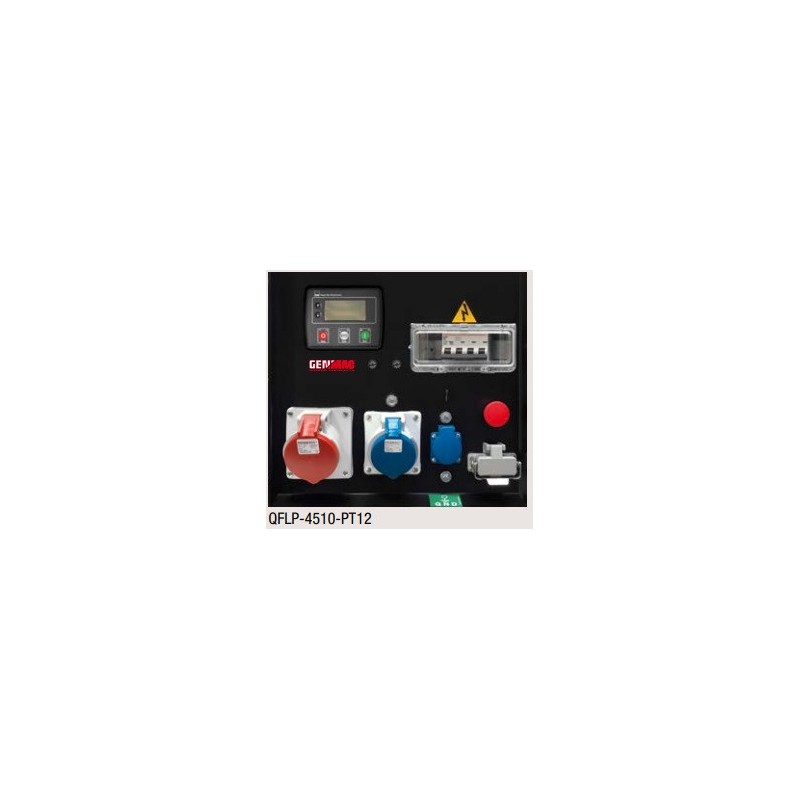

Receptacle Panel: 1 x Schuko 16A 230V - 1 x 32A 230V - 1 x 32A 400V
Voltage: 230 / 400 V
Frequency: 50 Hz
Motor RPM: 1500 rpm
Tank Capacity: 76 l
Autonomy @ 75%: 38 h fixed revolutions
Voltage regulator : AVR
Sound pressure @7m: 61 dBa
Length (mm): 1056
Width (mm): 590
Height (mm): 1442
Dry weight (Kg): 388

If you are looking for another product then you can consult other terrestrial generators in our catalog.

Images and technical data are not binding.
