Data sheet

Phase

Single phase

Maximum power single phase (KW)

9.6

Maximum power single phase (KVA)

12

Fuel

Gasoline

Frequency (Hz)

50

Voltage (V)

230

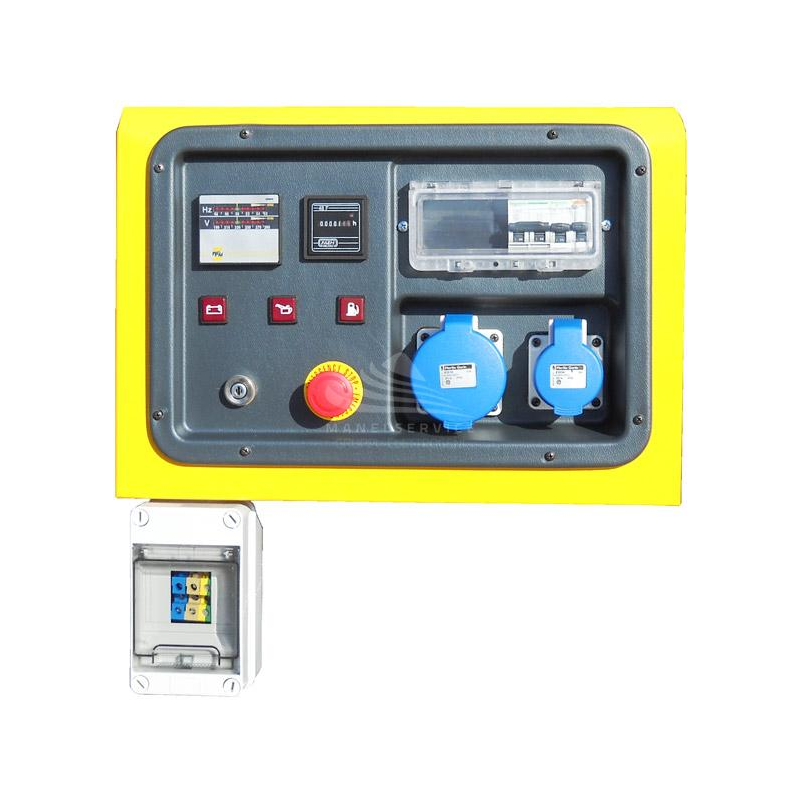

Sockets configuration

1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE

Engine

Honda GX690R

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

688

Number cylinders

2

Oil capacity (L)

1.9

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

4.6 at 100% of the load

Running time (h)

4.34 at 100% of the load

Acoustic power

100 dB(A)

Acoustic pressure

75 dB(A) at 7 m

Length (mm)

990

Width (mm)

550

Height (mm)

670

Dry weight (Kg)

130

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Honda
