CGM CX5000E SINGLE-PHASE GENERATOR 5KVA
      CGM CX5000E SINGLE-PHASE GENERATOR 5KVA
      CGM CX5000E SINGLE-PHASE GENERATOR 5KVA

      CGM CX5000E SINGLE-PHASE GENERATOR 5KVA

      CGM CX5000E

      Phase Type: Single Phase
      Maximum power: 4.95 KW
      Continuous power: 4.5 KW
      Maximum power: 5.5 KVA
      Continuous power: 5 KVA
      Fuel: Gasoline
      Voltage: 230 V
      Frequency: 50 Hz
      Engine: HONDA GX270
      Engine revs: 3000 rpm
      Starter: Electric
      Voltage regulator system: AVR
      Consumption: 1.6 Lt/h at 75% of the load
      Tank capacity: 5.3 Lt
      Autonomy: 3.3 h at 75% load
      Length: 825 mm
      Width: 550 mm
      Height: 530 mm
      Weight: 78 Kg
      AVR

      List price
      3,611.20 € tax incl.
      2,960.00 € tax excl.
      Discounted Price
      2,095.35 € tax incl.
      1,717.50 € tax excl.
      Shipping from 30.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: CGM CX5000E SINGLE-PHASE GENERATOR 5KVA

      PERSONAL DATA


      Ask a question
      Product: CGM CX5000E SINGLE-PHASE GENERATOR 5KVA
      Offer on letterhead
      Product: CGM CX5000E SINGLE-PHASE GENERATOR 5KVA
      CGM
      CGM CX5000E

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      4.95
      Continuous power single phase (KW)
      4.5
      Maximum power single phase (KVA)
      5.5
      Continuous power single phase (KVA)
      5
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230
      Sockets configuration
      1 x 230V 16A 3P CEE - 1 x 230V SCHUKO
      Engine
      Honda GX270
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      270
      Number cylinders
      1
      Alternator
      Made in Italy
      Poles
      2
      Fuel tank capacity (L)
      5.3
      Consumption (L/h)
      1.6
      Running time (h)
      3.3
      Length (mm)
      825
      Width (mm)
      550
      Height (mm)
      530
      Dry weight (Kg)
      78
      Silenced
      No
      Super silenced
      No
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Honda

      Specific References

      New

      GENERATOR CGM CX5000E Single-phase 5 KVA AVR

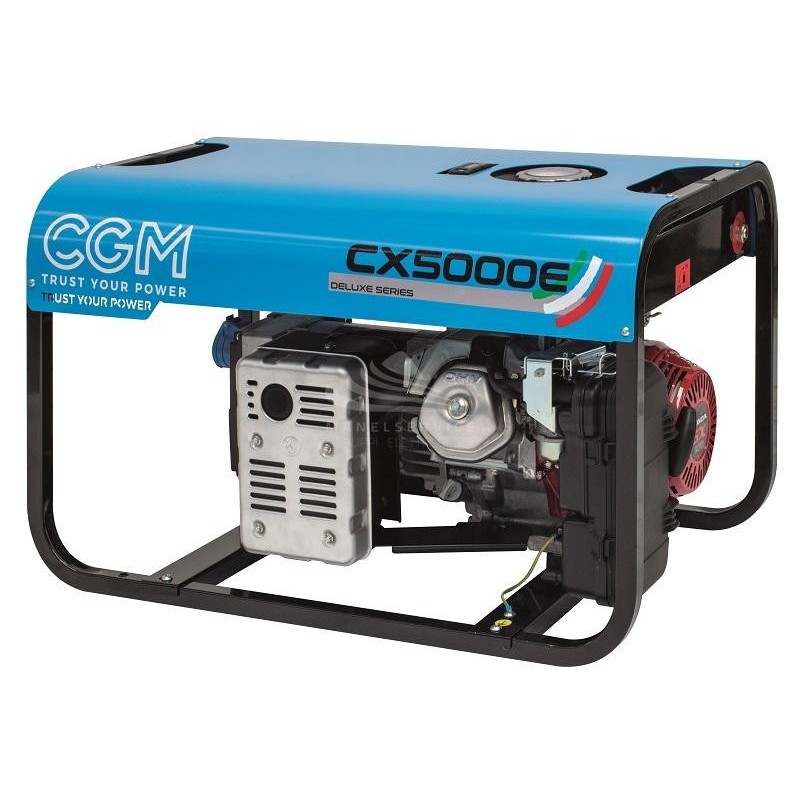

      Generator CGM CX5000E single-phase 5 KVA set with Honda engine powered by STAGE V gasoline at 3000 rpm, compact and easy to use, mounted on a fixed base with sturdy rain cover and vibration dampers.

      The CGM CX5000E generator set is composed of a Made in Italy Linz or NSM alternator, self-excited without brushes and with an AVR regulator. The AVR regulator allows the voltage to be stabilized and does not ruin the connected sensitive devices. The CGM CX5000E generator set is equipped with electric start but also manual recoil start with recoil starter and low fuel consumption, in fact it consumes only 1.6 liters/hour at 75% load. This generator CX5000E is perfect for outdoor use such as for hobby use.
      The generator CGM CX5000E is part of the DELUXE series and is easily adaptable to various uses such as homes, mobile facilities, camping, hobbies, construction sites, etc.. The CX5000E generator set at 3000 rpm is suitable for emergency use only. It is not recommended to be used for more than 6 hours continuously and for more than 500 hours per year.

      Technical specifications of CGM CX5000E generator set:
      Phase Type: Single Phase
      Maximum power: 4.95 KW
      Continuous power: 4.5 KW
      Maximum power: 5.5 KVA
      Continuous power: 5 KVA
      Fuel: Gasoline
      Voltage: 230 V
      Frequency: 50 Hz
      Engine: HONDA GX270
      Engine revs: 3000 rpm
      Starter: Electric
      Voltage regulator system: AVR
      Consumption: 1.6 Lt/h at 75% of the load
      Tank capacity: 5.3 Lt
      Autonomy: 3.3 h at 75% load
      Length: 825 mm
      Width: 550 mm
      Height: 530 mm
      Weight: 78 Kg
      AVR

      Discover the full range reserved for generators of CGM or other top brands by browsing our catalog to find the one that best suits your needs.

      Images and technical data are not binding.
