GENMAC MAGNUM G350IS-E3 THREE-PHASE 344 KVA DIESEL - MOTOR IVECO STAGE 3A

Name: GENMAC MAGNUM G350IS-E3 THREE-PHASE 344 KVA DIESEL - MOTOR IVECO STAGE 3A
Brand: GENMAC
SKU: MAGNUM G350IS-E3-MOTORE IVECO-AVR
Price: 46461.87 EUR
Availability: InStock

Reference MAGNUM G350IS-E3-MOTORE IVECO-AVR

Phase Type: Single-phase / Three-phase
Maximum power LTP: 380 KVA
Maximum power LTP: 304 KW
Continuous power PRP: 344 KVA
Continuous power PRP: 275 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 / 400 V
Engine: Fpt-Iveco CURSOR13TE1F
Engine rpm: 1500 rpm
Cooling: Water
Length: 4500 mm
Width: 1666 mm
Height: 2250 mm
Weight: 4300 Kg
Super silenced
AVR

List price

85,455.51 € tax incl.

70,045.50 € tax excl.

Discounted Price

46,461.87 € tax incl.

38,083.50 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MAGNUM G350IS-E3-MOTORE IVECO-AVR

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 304
Continuous power three phase (KW): 275
Maximum power three phase (KVA): 380
Continuous power three phase (KVA): 344
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Emissions Regulations: Stage 3A
Engine rpm (rpm): 1500
Speed governor: Electronic
Engine capacity (cm³): 12880
Number cylinders: 6
Oil capacity (L): 29
Cooling: Water
Alternator: Mecc Alte
Length (mm): 4500
Width (mm): 1666
Height (mm): 2250
Dry weight (Kg): 4300
AVR: Yes
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Specific References

Condition New

GENMAC MAGNUM G350IS-E3

The GENMAC MAGNUM G350IS-E3 is a 344 KVA super-silenced single-phase/three-phase diesel generator with Mecc Alte alternator and AVR voltage regulator.
Thanks to its diesel fuel supply, the GENMAC MAGNUM G350IS-E3 can only consume 8.1 m³/h at full load and has a low environmental impact, making it one of the best in its class.
The long life and reliability of the GENMAC MAGNUM G350IS-E3 is due to a special control procedure during the various stages of production.
The GENMAC MAGNUM G350IS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

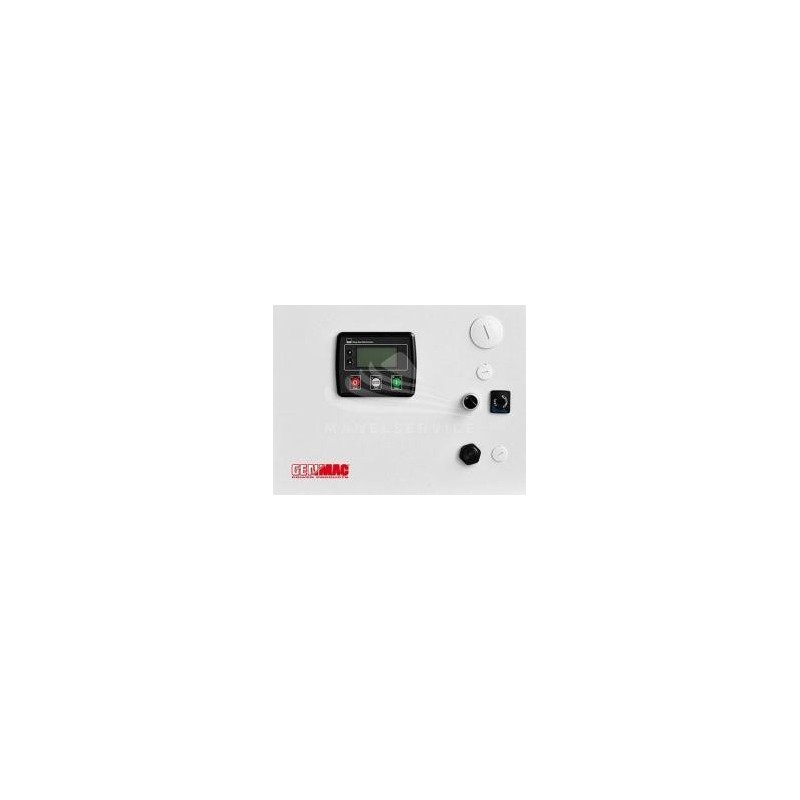

Control panel features

QT2A-4520

Self-standing tower with IP65 metal box

Circuit breaker

AMF controller DSE4520

- Voltmeter, Frequencymeter, Ammeter

- Generator power (kW, kV Ar, kV A & pf) monitoring

- Hour meter

- Fuel level meter

- Overload (kW & kV Ar) protection

- Low oil pressure protection

- High coolant temperature protection

- Low fuel level protection

- Battery charger alternator fault

- Rpm protection

Emergency stop button

Audible alarm

Terminal board for ATS connection

Can Bus reading Port (if standard on the engine)

Battery charger

On/off switch

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
