Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

3.68

Maximum power single phase (KVA)

4.6

Maximum power three phase (KW)

11.2

Maximum power three phase (KVA)

14

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230 / 400

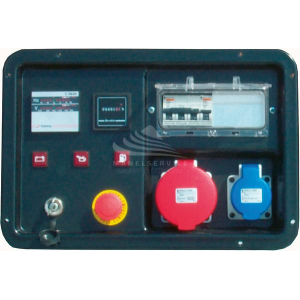

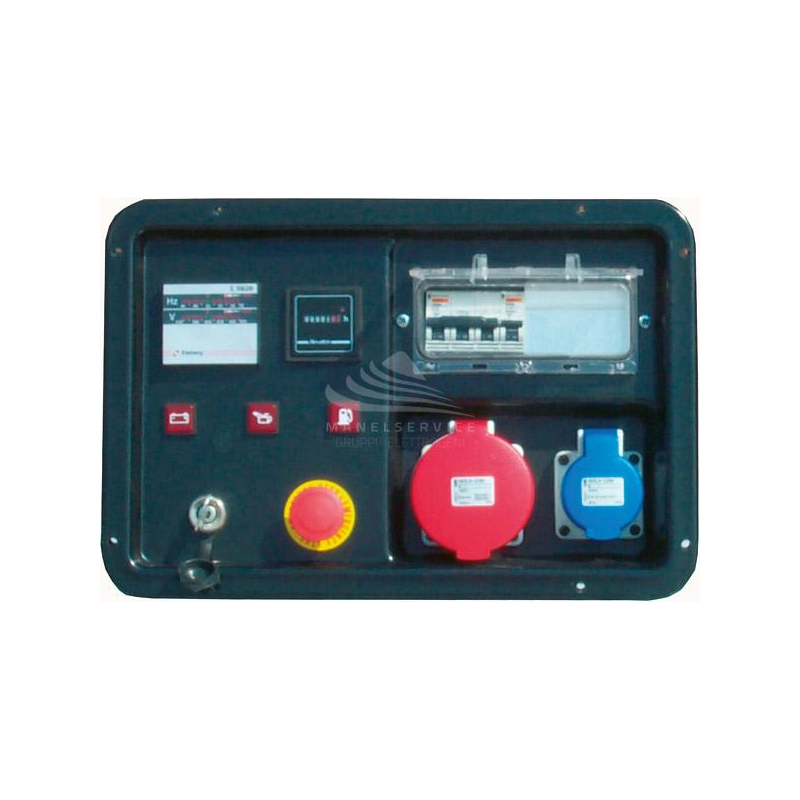

Sockets configuration

1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Lombardini 12LD477

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

954

Number cylinders

2

Oil capacity (L)

3

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

4.4 at 100% of the load

Running time (h)

4.54 at 100% of the load

Acoustic power

110 dB(A)

Acoustic pressure

85 dB(A) at 7 m

Length (mm)

1000

Width (mm)

550

Height (mm)

670

Dry weight (Kg)

181

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Lombardini
