Generator Set Genmac Queen G130IS-E3 Mecc Alte- Stage 3A

Name: Generator Set Genmac Queen G130IS-E3 Mecc Alte- Stage 3A
Brand: GENMAC
SKU: QUEEN G130IS-E3 M
Price: 23053.12 EUR
Availability: InStock

Reference QUEEN G130IS-E3 M

Type of phase: Single-phase / Three-phase
Power:
Continuous power PRP: 122 kVA / 98 kW
Stand-by power LTP: 134 kVA / 108 kW
Power factor:
Cos φ: 0.8
Voltage:
VAC: 400/230
Frequency:
Hz: 50
Amperage:
PRP/LTP: 176 / 194 A
Revolutions per minute:
RPM: 1500
Dimensions and Noise Level
Dimensions:
Length: 2950 mm
Width: 1056 mm
Height: 1900 mm
Weight:
Net weight: 1643 kg
Gross weight: 1678 kg
Sound level:
Sound pressure at 7 m: 70.00 dBA
Data reference
Model: G130IS

List price

45,432.80 € tax incl.

37,240.00 € tax excl.

Discounted Price

23,053.12 € tax incl.

18,896.00 € tax excl.

Shipping from 616.10 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference QUEEN G130IS-E3 M

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 108
Continuous power three phase (KW): 98
Maximum power three phase (KVA): 134
Continuous power three phase (KVA): 122
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Emissions Regulations: Stage 3A
Engine rpm (rpm): 1500
Speed governor: Mechanical
Engine capacity (cm³): 4.50
Number cylinders: 4
Cooling: Water
Alternator: Mecc Alte
Length (mm): 2950
Width (mm): 1056
Height (mm): 1900
Dry weight (Kg): 1643
AVR: Yes
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Specific References

Condition New

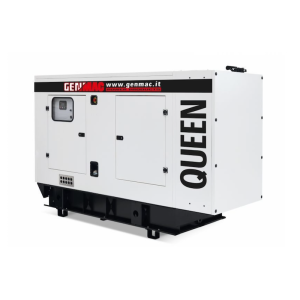

Generator Set GENMAC QUEEN G130IS-E3

Generator Set GENMAC QUEEN G130IS-E3 generator set is a 134 KVA super-silenced single/three-phase diesel generator GENMAC QUEEN G130IS-E3 set

with Mecc Alte alternator and AVR voltage regulator.

It is powered by Diesel fuel,

The long service life and reliability of GENMAC QUEEN G130IS-E3 generator set is due to a special control
procedure during the various stages of production.

GENMAC QUEEN G130IS-E3 is suitable for applications in various contexts such as: hospitals, industries,
shopping centres, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine also allows generator set to be used for mobile use, e.g. for road construction sites and rental services.

Technical characteristics GENMAC QUEEN G130IS-E3 Generator Set :

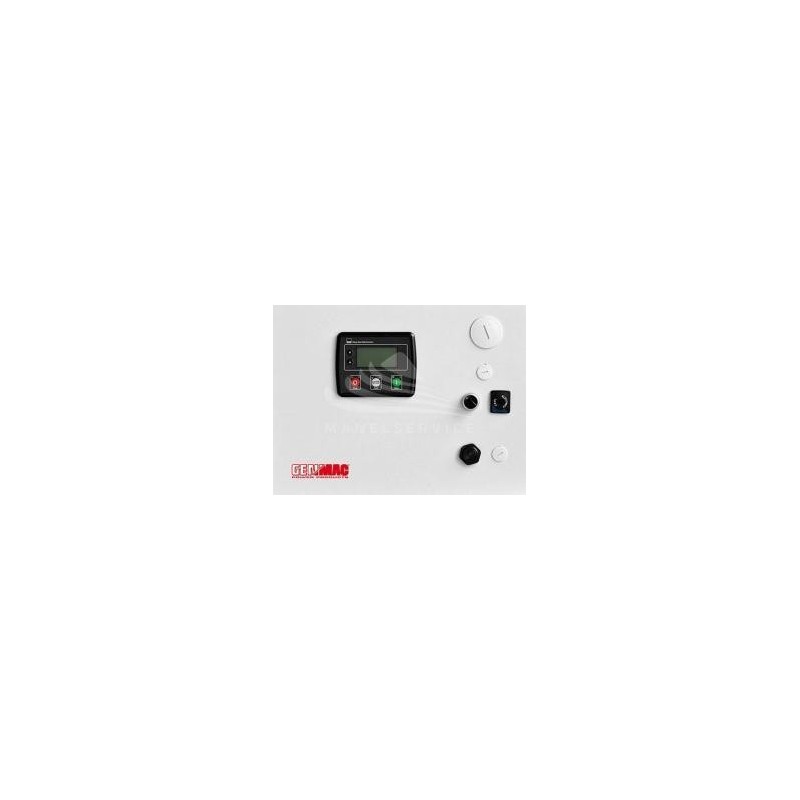

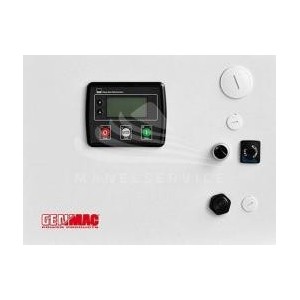

GENMAC QUEEN G130IS-E3 Switchgear Features

QT2A-4520

Self-supporting IP65 metal turret

Thermal-magnetic circuit breaker

DSE4520 Automatic Control Unit

Voltmeter, Frequency Meter, Ammeter

Generator power reading (kW, kV Ar, kV A & pf) - Hour meter

Fuel gauge

Overload protection (kW & kV Ar)

Low oil pressure protection

High coolant temperature protection

Low fuel level protection

Battery charging alternator failure

Overspeed protections

Emergency Stop button

Siren

Terminal block for Automatic Panel connection Can Bus readout port (if provided by engine) Battery charger

On/off switch

Generator Set GENMAC QUEEN G130IS-E3 generator set is an intelligent and durable choice,

capable of meeting your energy needs for many years to come.

Equipped with all the necessary protections for safe and reliable operation, in compliance with the most stringent regulations.

If you are looking for a similar product click HERE.

Non-binding images and technical data.

""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
