MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

Name: MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV
Brand: MASE
SKU: 002739
Price: 19425 EUR
Availability: InStock

Phase type: Single phase/ Three phase
Single-phase maximum power: 6.3 KVA / 5 KW
Single-phase continuous power: 5.7 KVA / 4.5 KW
Three-phase maximum power: 19.1 KVA / 15.28 KW
Three-phase Continuous Power: 17.4 KVA / 13.9 KW
Fuel: Diesel
Voltage: 230 - 400 V
Frequency: 50 Hz

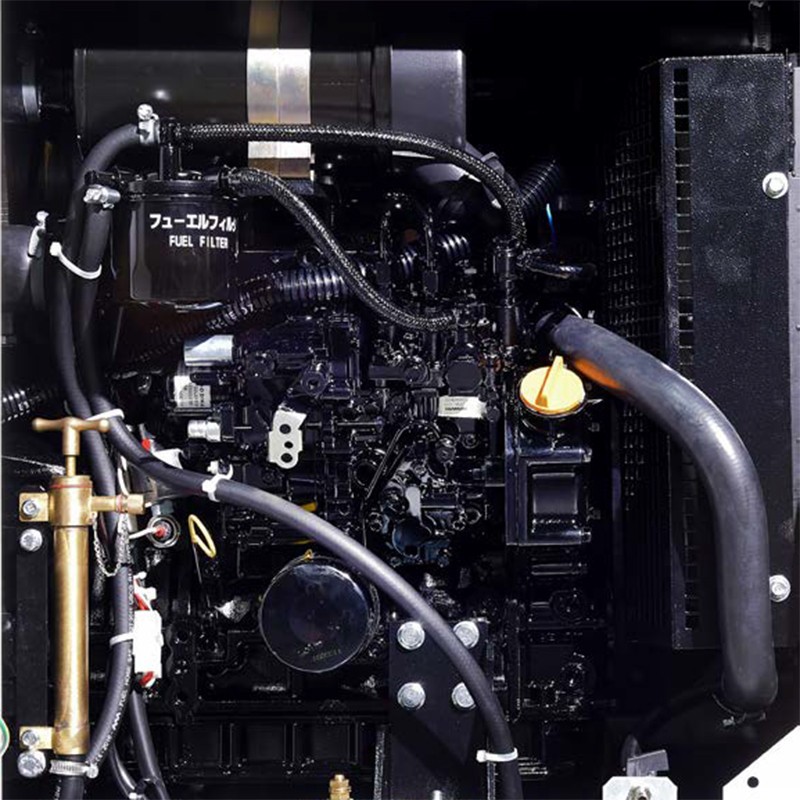

Engine: Yanmar 4TNV88
Mechanical power: 24.1 Hp
Number of cylinders: 4
Displacement: 2190 cc
Engine rpm: 1500 rpm
Emissions standard: StageV
Consumption: 3.5 l / h at 75% of the load
Acoustic Pressure: 62 dBA @ 7 m
Voltage regulator: AVR

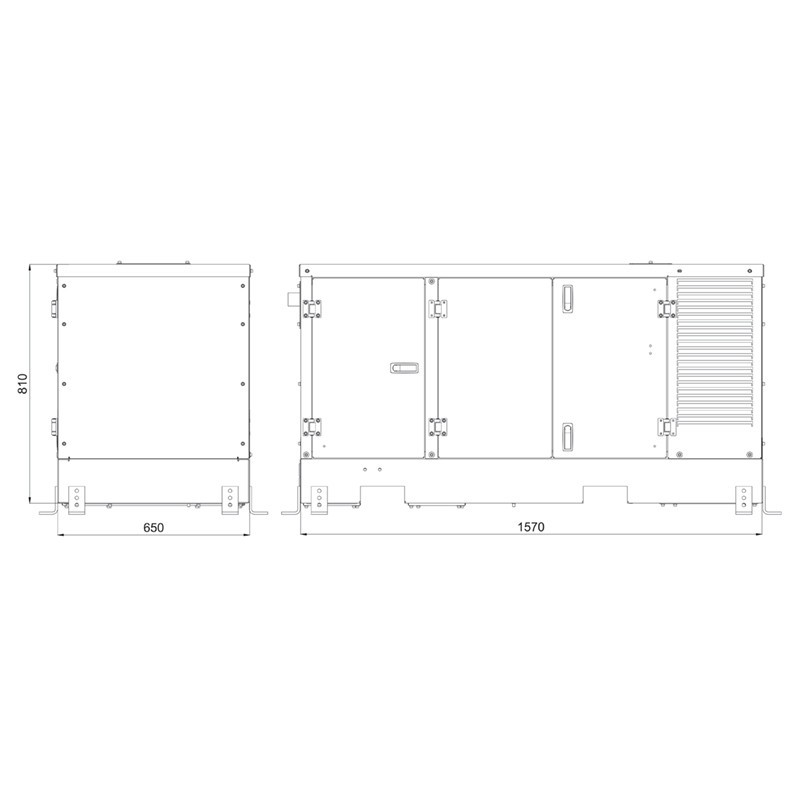

Length: 1570 mm
Width: 650 mm
Height: 810 mm
Weight: 550 Kg

List price

23,698.50 € tax incl.

19,425.00 € tax excl.

Discounted Price

23,698.50 € tax incl.

19,425.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 002739

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 5
Continuous power single phase (KW): 4.5
Maximum power single phase (KVA): 6.3
Continuous power single phase (KVA): 5.7
Maximum power three phase (KW): 15.28
Continuous power three phase (KW): 13.92
Maximum power three phase (KVA): 19.1
Continuous power three phase (KVA): 17.4
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Yanmar 4TNV88, 4 stroke naturally aspirated
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 2190
Number cylinders: 4
Oil capacity (L): 7.4
Cooling: Water
Alternator: Sincrono, autoeccitato, autoregolato, senza spazzole
Poles: 4
Consumption (L/h): 5 at 100% of the load
Acoustic pressure: 62 dB(A) at 7 m
Length (mm): 1570
Width (mm): 650
Height (mm): 810
Dry weight (Kg): 550
Silenced: Yes
Super silenced: Yes
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

MASE VOYAGER 20 DT GENERATOR 19.1KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

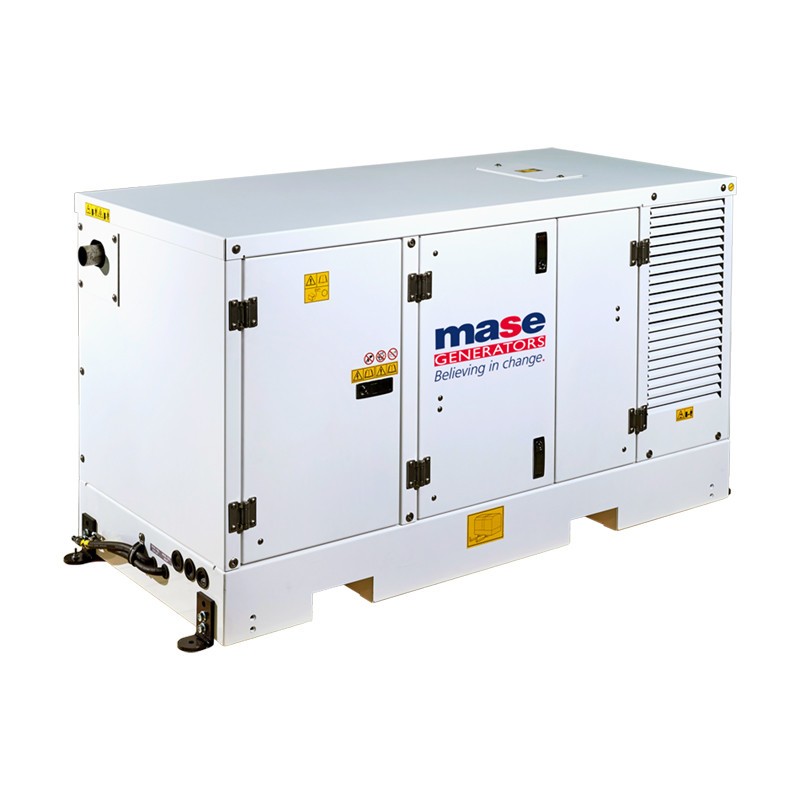

MASE VOYAGER 20 DT single / three-phase vehicle generator with diesel-powered Yanmar 4TNV88 engine StageV delivers a power of 19.1KVA, complete with AVR voltage regulator.

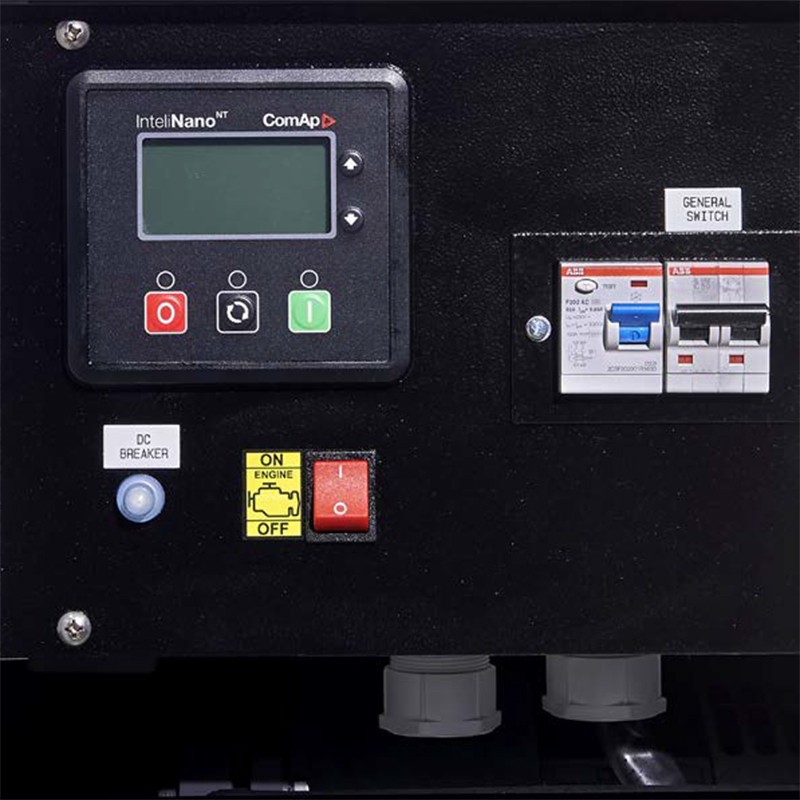

MASE VOYAGER 20 DT is equipped with a ComAp InteliNano control unit that allows you to control and verify all the main functions of the unit and, if necessary, will report any failure or error in the operation of the machine.

MASE VOYAGER 20 DT is designed with a soundproof booth that makes it super silenced . The soundproofing cabin of the MASE VOYAGER 20 DT generator consists of a supporting structure in aluminum profile which supports extremely light and extremely light 5754 painted marine aluminum panels with very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance interventions easier even with the generator installed in confined spaces.

STAGEV EMISSIONS REGULATION

MASE VOYAGER 20 DT is equipped with a "mobile" STAGEV motorization, as required by the 2016/1628 European Regulation. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction of the environmental impact of 200% compared to standard engines.

TECHNICAL FEATURES MASE VOYAGER 20 DT:

Phase type: Single / Three phase
Singlephase maximum power: 6.3 KVA / 5 KW
Singlephase continuous power: 5.7 KVA / 4.5 KW
Threephase maximum power: 19.1 KVA / 15.28 KW
Threephase Continuous Power: 17.4 KVA / 13.9 KW
Fuel: Diesel
Voltage: 230 - 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV88
Mechanical power: 24.1 Hp
Number of cylinders: 4
Displacement: 2190 cc
Engine rpm: 1500 rpm
Emissions standard: StageV
Consumption: 3.5 l / h at 75% of the load
Acoustic Pressure: 62 dBA @ 7 m
Voltage regulator: AVR
Length: 1570 mm
Width: 650 mm
Height: 810 mm
Weight: 550 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to MASE vehicle generators or other specialized brands.

Non-binding images and technical data.
