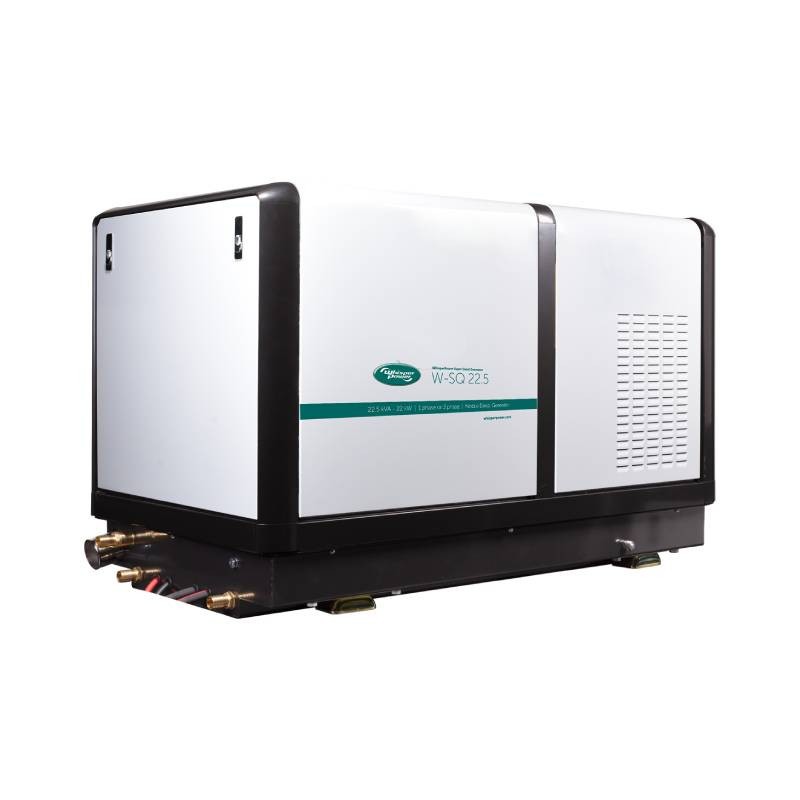

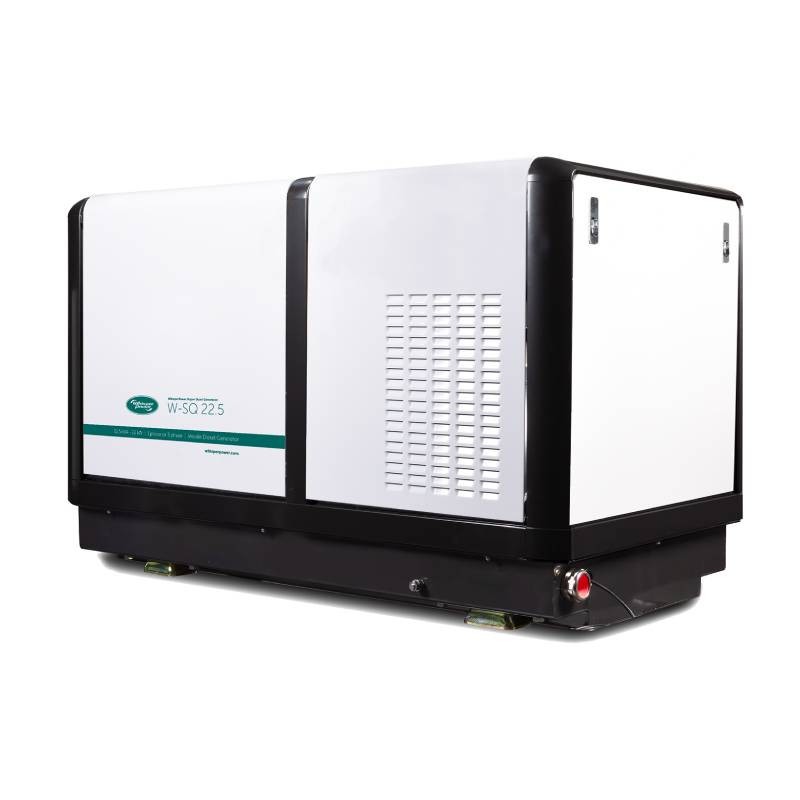

WHISPER W-SQ 22,5 MOBILE GENERATOR 22KW SINGLE-PHASE AVR

WHISPER W-SQ 22,5 Single-phase mobile generator with diesel-powered Mitsubishi S4S engine, delivers a power of 22KW, complete with AVR voltage regulator.

The WHISPER W-SQ 22,5 vehicle generator is designed for use in the vehicle. equipped as standard with a robust acoustic enclosure with anti-corrosion metal plating and heavy insulation material for optimal sound reduction. Hearing protection is a must. equipped with easy access to all sides of the generator and offers access to all maintenance-related components from one side only.

Thanks to the AVR technology electrical stabilizer that works at very low distortion, WHISPER W-SQ 22.5 delivers constant current loads without voltage peaks that could damage electrical and electronic devices. Another advantage of the inverter is; that of working with variable engine revolutions, based on the need; of current to be supplied, optimizing fuel consumption, gas emissions and wear of mechanical parts.

AVR VOLTAGE REGULATOR

WHISPER W-SQ 22,5  equipped with AVR which, mounted on an alternator, allows a generator set or current generator to stabilize the output voltage and does not damage the connected sensitive electronic devices. In the modern market, inverters have made a huge step forward in terms of technology and performance; for this reason the best brands of generator sets and alternators in the world are moving along this line of thought.

Technical characteristics WHISPER W-SQ 22,5:

Phase Type: Single Phase
Maximum Power: 24.7 KVA / 22 KW
Continuous Power: 22.5 KVA / 20 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz (60 Hz)
Engine: Mitsubishi S4S - 4 Cylinders
Emissions standard: Not Emissions
Number of cylinders: 4
Engine speed: 1500/1800 rpm
Acoustic power: 58 dBA
Voltage regulator: AVR
Length: 1260 mm
Depth: 680 mm
Height: 800 mm
Net weight: 580 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to WHISPER vehicle generators or those of other specialized brands.

Images and non-binding technical data.
