Water Heater for Generator RA-0501

The Water heater RA-0501 is a device used to heat water inside the engine cooling circuit of generator sets.

The heater is able to ensure a constant water temperature even in environments with very low outside temperatures, preventing the water inside the cooling circuit from freezing.

The heater is of the electric type and uses electricity to produce heat. It is equipped with an electrical resistance, which heats the water circulating inside the engine cooling circuit. The heater is controlled by a thermostat, which adjusts the water temperature according to the needs of the engine.

The RA-0501 water heater is compatible with various makes and models of generator sets, and is designed for easy installation and long service life. Thanks to its sturdy stainless steel construction and high energy efficiency, the Elcos RA-0501 heater is an excellent solution for keeping genset engines running smoothly.

DISTINCTIVE FUNCTIONS

- Temperature maintenance internal thermostat
- Suitable for mounting directly on the engine
- Connections facilitated by the presence of a cable
- Coolant drain plug
- Excellent dielectric strength (2000V)

TECHNICAL SPECIFICATIONS RA-0501

Phase Type: Single Phase
Voltage: 230V
Power consumption: 500W
Thread: 1/2'' GAS

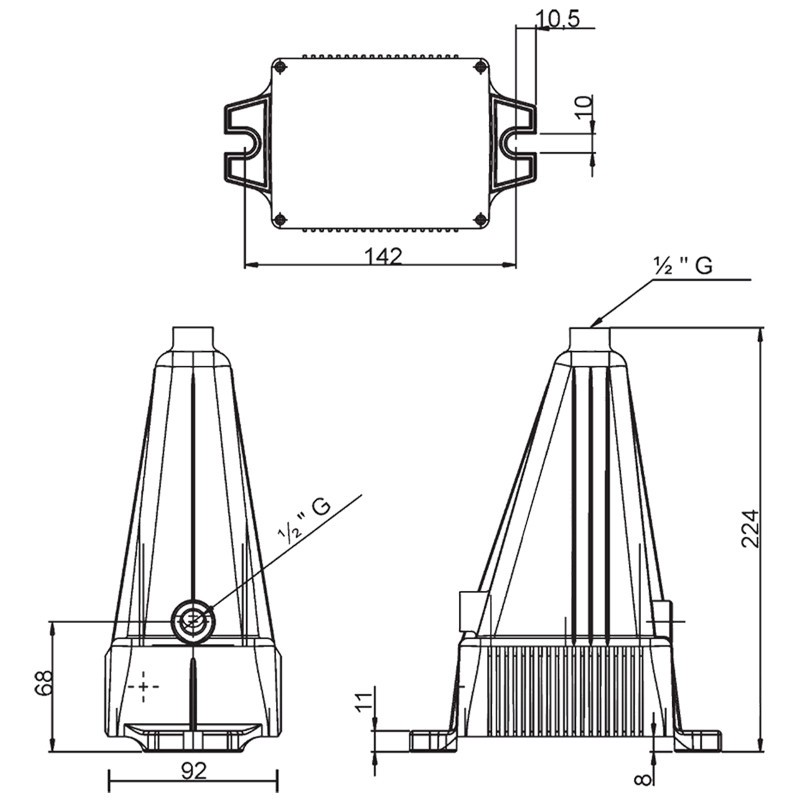

Width: 163 mm
Length: 92 mm
Height: 224 mm
Weight: 1 kg

Looking for a different generator accessory? HERE you can find the area dedicated to generator accessories from specialized brands.

Images and technical data are not binding and may be subject to revision.
