MENNEKES SOCKET COMBINATION IP44 AMAXX 931553

Mennekes AMAXX 931553 is an outlet combination equipped with IP44 protection class, Differential, Magnetothermal and 6 CEE 16 A 230V outlets.

The Mennekes AMAXX 931553 is a complete solution for power distribution in environments that require protection from water splashes and dust. This product is designed to provide a reliable and secure connection for a variety of electrical devices.

Mennekes AMAXX 931553 is characterized by its ruggedness and durability, thanks to its IP44 rating. This means that the product is protected against water splashes from all directions and offers sufficient protection against the ingress of solids such as dust. This feature makes Mennekes AMAXX 931553 suitable for both indoor and outdoor applications.

The product consists of a robust thermoplastic housing that ensures durability and protection of internal components. Mennekes AMAXX 931553 includes power outlets with CEE connection standards, allowing a wide range of electrical devices to be connected.

The Mennekes configuration is customizable to the user's needs, allowing the user to choose the number and type of outlets required. This provides flexibility in power distribution and allows for adaptation to different situations and applications.

Mennekes AMAXX 931553 is designed for easy installation and use. The outlets feature a secure locking system that ensures stable and secure connection of electrical devices. In addition, the product complies with electrical safety regulations, offering complete protection for the user and connected devices.

Technical features Mennekes AMAXX 931553

NO.6 CEE 16 A, 3 P, 230 V
Protection: No.1 Int. differential 40A, 4P, 0.03A / No.6 Int. thermal-magnetic 16A, 1P+N, C
Maximum pre-protection: 32 A
InA: 24 A
RDF: 0.75
Connection possibilities / Power cable: 1 m H07RN-F5G4 with CEE plug 32 A, 5P, 400 V
Degree of protection: IP 44
Material: plastic

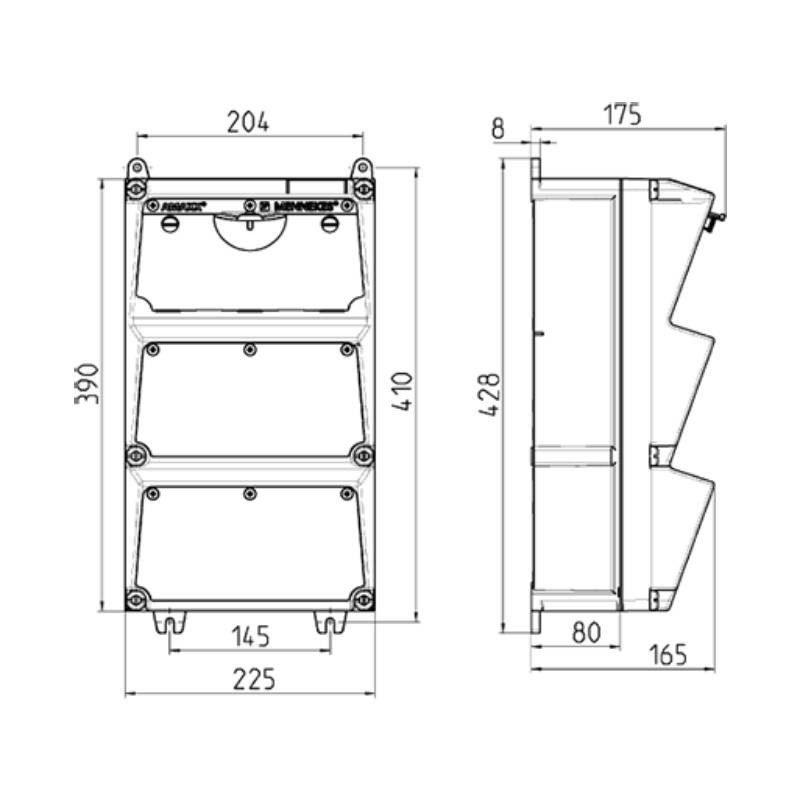

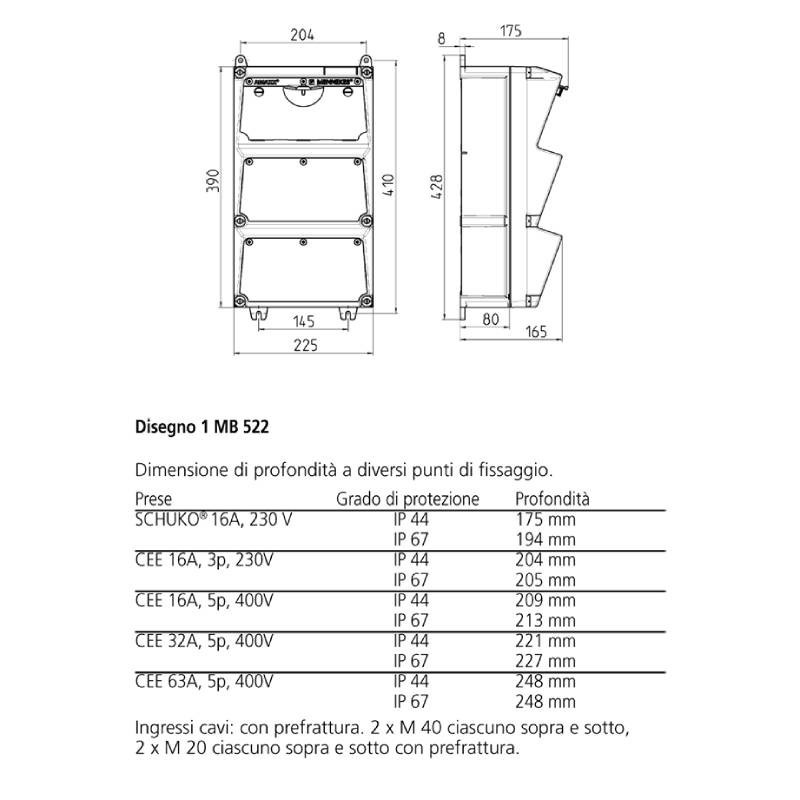

Length: 175 mm
Width: 225 mm
Height: 390 mm
Weight: 3.16 kg

Looking for a product with different technical characteristics? HERE you can find the area dedicated to accessories and spare parts for generators and generator sets.

Images and technical data are not binding and may be subject to revision by the manufacturer.
