      Connectors: M12 5-pin circular
      Cable material: White PVC
      Cable length: 5 m (16 ft) extendable to max 15 m (49 ft)
      Supply voltage: 5 V DC ±5%
      Power consumption: 0.28 W, 55 mA (average)
      Protocol NMEA: 0183 / RS232
      NMEA sentences: RMC, VTG, GGA, GSA, GSV, GLL
      Baud rate: 38400
      Update rate: 5 Hz
      Number of channels: 20
      Average time to first fix: Hot start 6 s, Warm start 38 s, Cold start 42 s
      Operating temperature: -30° to +85°C (-22° to +185°F)
      Storage temperature: -40° to +95°C (-40° to +203°F)
      Waterproof rating: IP67
      Compliance: CE, FCC
      Weight: 0.065 kg (0.14 lbs) without cable and connector

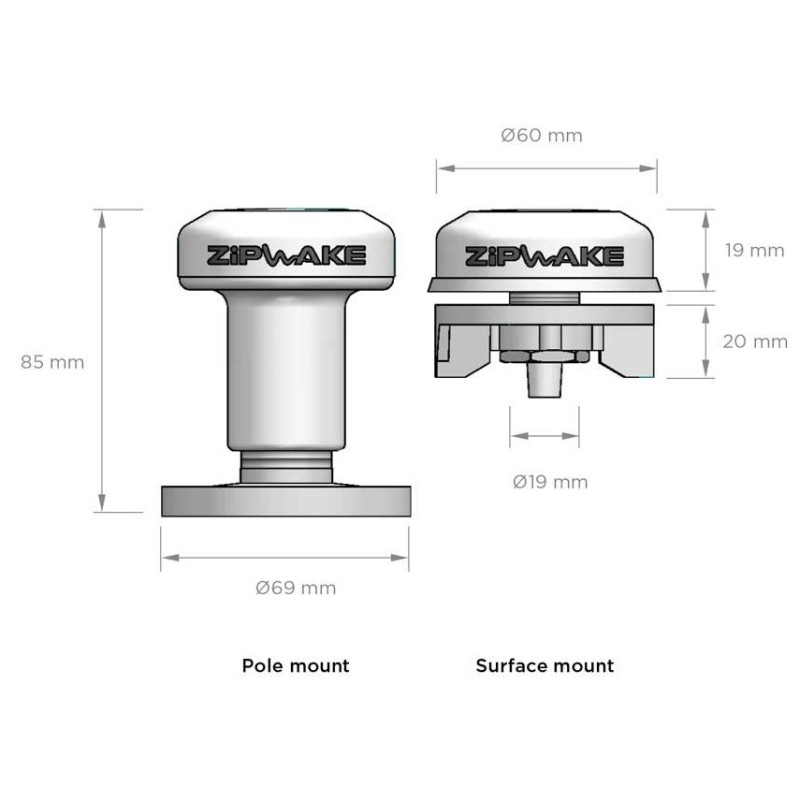

      Mounting Flush or pole

      Custom Quote
      Product: ZIPWAKE GPU EXTERNAL GPS ANTENNA

      PERSONAL DATA


      Ask a question
      Product: ZIPWAKE GPU EXTERNAL GPS ANTENNA
      Offer on letterhead
      Product: ZIPWAKE GPU EXTERNAL GPS ANTENNA
      ZIPWAKE
      2011240

      Data sheet

      Protection degree
      IP67
      Width (mm)
      750
      Product type
      GPS Antenna
      Colour
      White
      Way of mounting
      Flush or pole
      Weight (Kg)
      1
      Video
      -E1WngJGVcg

      Specific References

      New

      ZIPWAKE IT750S INTERCEPTOR FRONT

      Zipwake GPU, 5Hz external GPS antenna with 20-channel receiver with excellent reception that provides accurate and fast vessel position and speed updates.
      Ship speed is a necessary input for automatic Zipwake motion control.
      The GPU Zipwake antenna has a robust construction, is completely waterproof and can be mounted on bracket or flush on any vessel - from speedboats to fishing vessels.

      The external Zipwake GPU external GPS antenna is optional and intended for use when there is no other strong GPS signal available for the Zipwake system, for example when the boat has only one control station with a top shield and lacks other accessible GPS sources. In this case, the external antenna is a good solution.
      Its 5 m cable can be extended up to 15 m with Zipwake extensions.

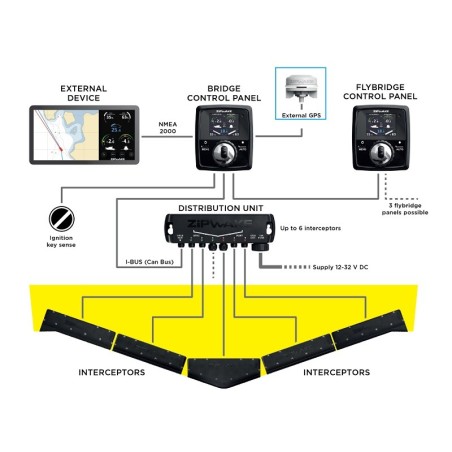

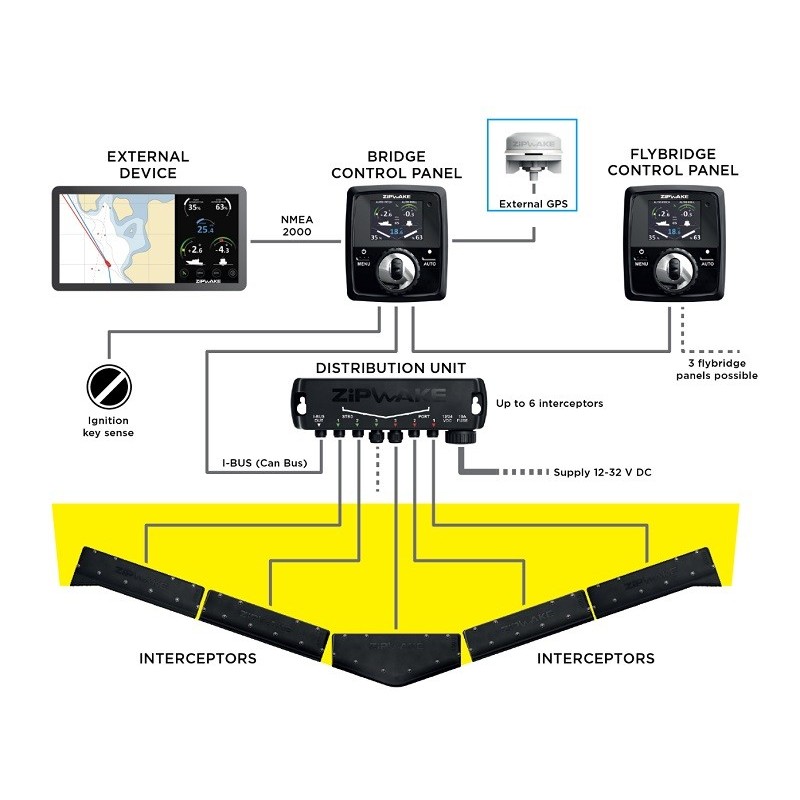

      It connects easily to the connector marked EXT GPS on the back of the panel.
      The external Zipwake GPU can also be connected to any panel installed in the system and is therefore suitable for use on any type of boat.


      Technical characteristics of ZIPWAKE GPU EXTERNAL GPS ANTENNA

      Connectors: M12 5-pin circular
      Cable material: White PVC
      Cable length: 5 m (16 ft) extendable to max 15 m (49 ft)
      Supply voltage: 5 V DC ±5%
      Power consumption: 0.28 W, 55 mA (average)
      Protocol NMEA: 0183 / RS232
      NMEA sentences: RMC, VTG, GGA, GSA, GSV, GLL
      Baud rate: 38400
      Update rate: 5 Hz
      Number of channels: 20
      Average time to first fix: Hot start 6 s, Warm start 38 s, Cold start 42 s
      Operating temperature: -30° to +85°C (-22° to +185°F)
      Storage temperature: -40° to +95°C (-40° to +203°F)
      Waterproof rating: IP67
      Compliance: CE, FCC
      Weight: 0.065 kg (0.14 lbs) without cable and connector
      Mounting Flush or pole
