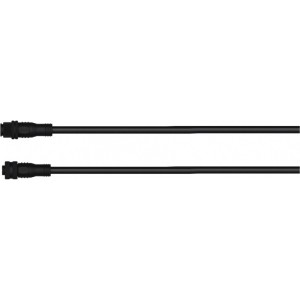

ZIPWAKE EC3-M12 Extension Cable 3 M
      ZIPWAKE EC3-M12 Extension Cable 3 M

      ZIPWAKE EC3-M12 Extension Cable 3 M

      Custom Quote
      Product: ZIPWAKE EC3-M12 Extension Cable 3 M

      PERSONAL DATA


      Ask a question
      Product: ZIPWAKE EC3-M12 Extension Cable 3 M
      Offer on letterhead
      Product: ZIPWAKE EC3-M12 Extension Cable 3 M
      ZIPWAKE
      2011259

      Data sheet

      Power cable length (m)
      3
      Product type
      Electronics and Automation

      Specific References

      New

      ZIPWAKE EC3-M12 Extension Cable 3 M

      The standard cable is used to connect the main control panel to the distribution unit, usually
      located on or near the transom. This cable is also used to connect the main panel to the next
      panel, e.g. the flybridge. The standard cable can be extended by using any of the available
      extension cables.
      The servo unit cable can be extended using 1.5 m or 3 m extension cables. The total servo cable
      length must not exceed 6 m (20 ft).

      Connectors M12 5-pin circular
      Connector diameter 14.5 mm (0.57 in)
      Cable material Black PVC
      Rated current 4 A
      Waterproof rating IP67 when connected
      Operating temperature -20° to +85°C (-4° to +185°F)
      Storage temperature -40° to +90°C (-40° to +194°F)
      Oil resistance Common engine fluids
      Compliance CE, FCC
