ZIPWAKE DU-S DISTRIBUTION UNIT WITH POWER CABLE 4 MT.

Reference 2011239

Supply voltage: 12 - 32 V DC
Power consumption: 0.1 W max
Protection fuse: 10 A ATO
Power cable Length: 4 m (13 ft), Diameter 9 mm (0.35 in), 12 AWG
Operating temperature: -20° to +85°C (-4° to +185°F)
Storage temperature: -40° to +90°C (-40° to +194°F)
Waterproof rating: IP67 with cables and/or protective caps mounted
Oil resistance: Common engine fluids
Compliance CE, FCC, SAEJ1171 Ignition Protected
Weight: 1.0 kg (2.2 lbs) including the power cable

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Product Details
Description

Reference 2011239

Data sheet

Frequency (Hz): 50
Voltage (V): 12-32
Protection degree: IP 67
Power cable length (m): 4
Operating temperature (°C): -20 / +85
Product type: Electronics and Automation
Video: -E1WngJGVcg

Specific References

Condition New

ZIPWAKE DU-S DISTRIBUTION UNIT

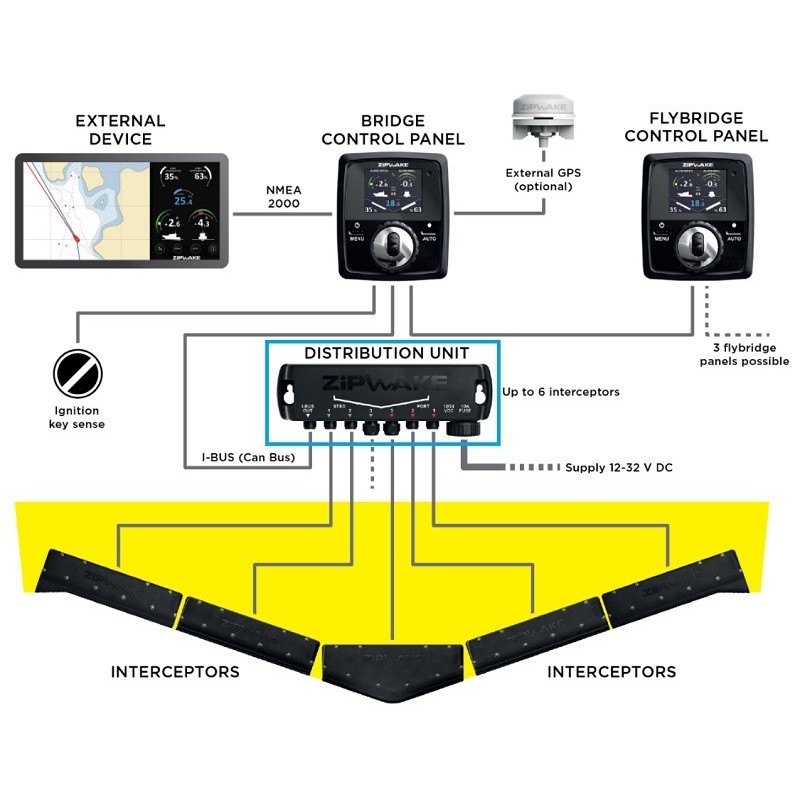

The Distribution Unit supplies the system with power and can accommodate up to six
Series S interceptors.
The unit is connected to the main control panel.
It is robust, waterproof, oil resistant and ignition protected for mounting in an
engine room.
The power cable is included for easy connection to a battery.
The distribution unit has built-in electrical protection, including its own protection fuse.

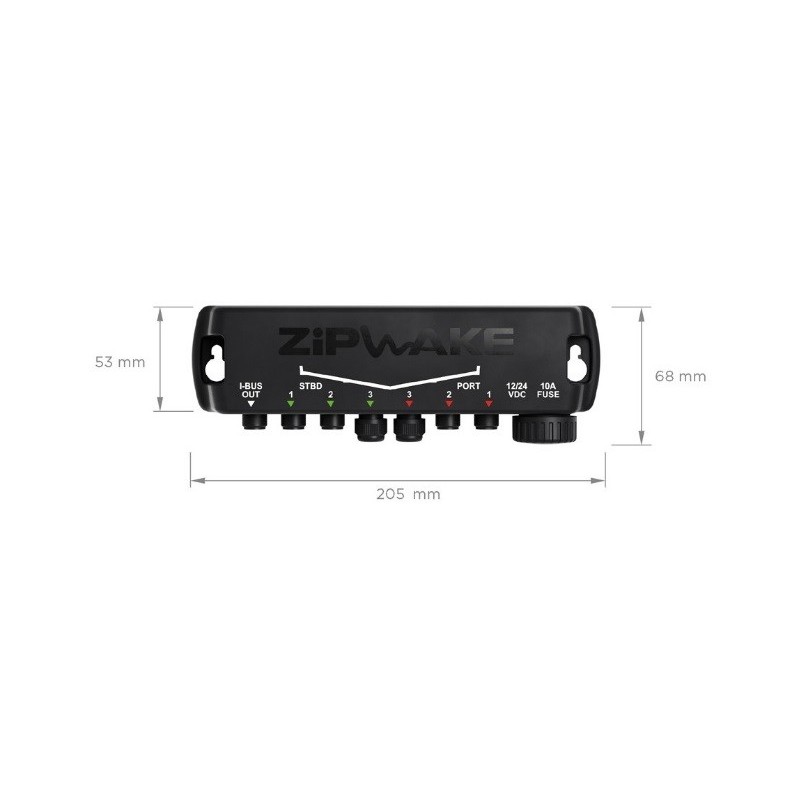

CONNECTORS

• Six interceptor connections
• I-BUS OUT (power and CAN bus to control panels)
• 2-lead power cable

• Included in Kit Boxes
• Available as accessory
• Available as spare part

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
