BINDA MPDW100-E
MPDW100-E
Pump type: Portable self-priming motor pump
Type of Application: Clear water
Fuel: diesel
Delivery suction: 100 mm (4'')
RPM: 3000 rpm
Max. flow rate: 1600 m/l
prevalence: 31 metres
Suction height: 7 mt.
Motor power: 9,6 Hp
Tank capacity: 12,5 Lt.
Starting: Manual
Length: 635 mm
Width: 465 mm
Height: 685 mm
Dry weight: 75 Kg.
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Engine rpm (rpm)
- 3000
- Starting system
- Electric 12 Vcc / Manual
- Pump type
- Lightweight Pump
- Fluid type
- Clean water
- Height of suction (m)
- 7
- Maximum output capacity (Lt/min)
- 1600
- Main body material
- Alluminio
- Inlet diameter thread type (mm/inches)
- 40 mm / 1'' 1/2
- Outlet diameter thread type (mm/inches)
- 40 mm - 1" 1/2
- Fuel tank capacity (L)
- 12.5
- Length (mm)
- 635
- Width (mm)
- 465
- Height (mm)
- 685
- Dry weight (Kg)
- 75

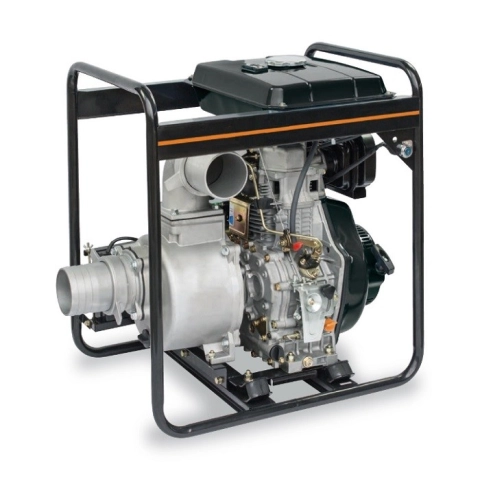

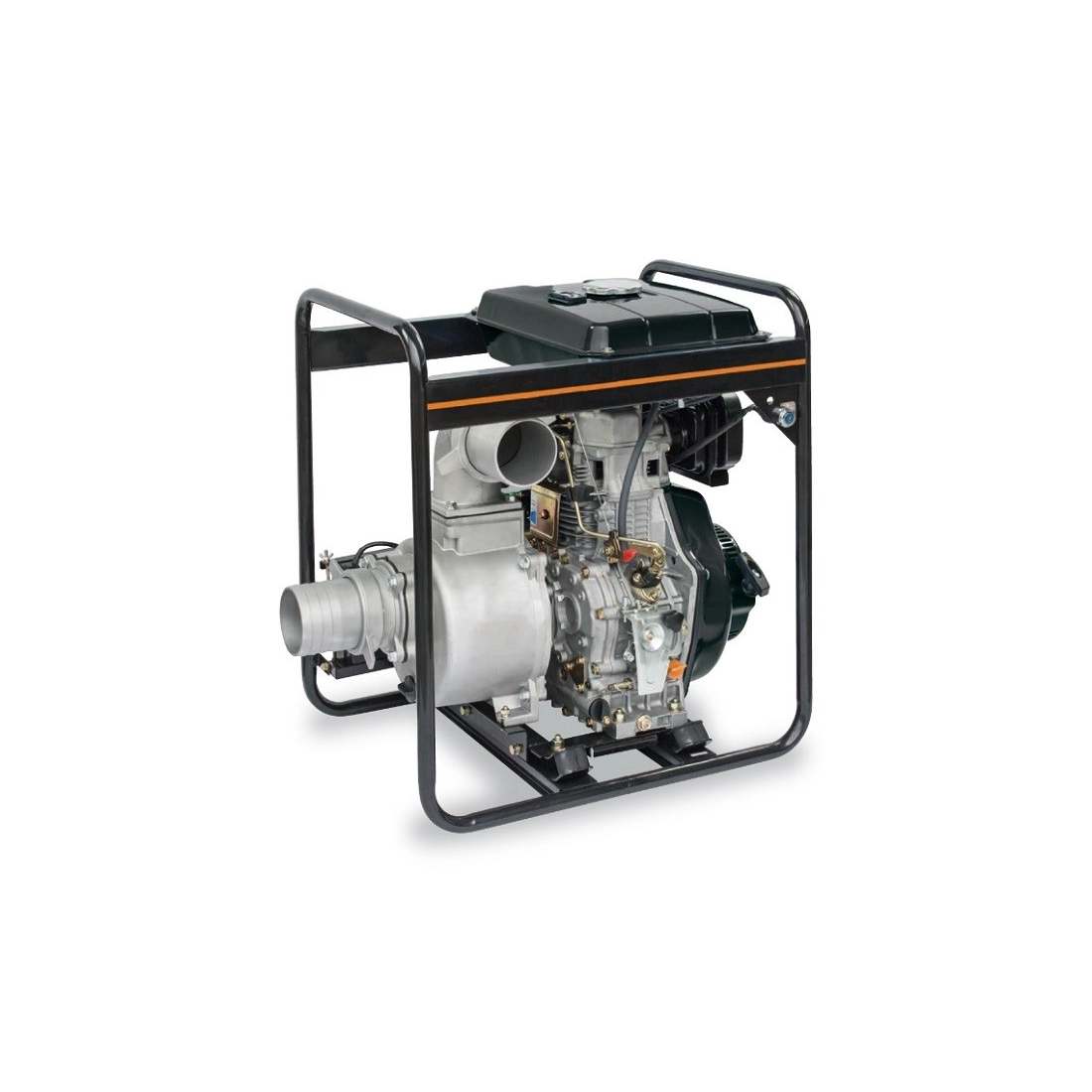

BINDA MPDW100-E SELF-PRIMING MOTOR-PUMP FOR CLEAN WATERS
BINDA MPDW100-E is a diesel self-priming motor-pump for the supply and distribution of clean and clear water in agriculture.
BINDA MPDW100-E is portable, with open cast iron impeller and aluminium pump body, electric and manual start.
BINDA MPDW100-E is ideal for water supply in agricultural fields or private gardens where electrical connection is not possible.
TECHNICAL FEATURES BINDA MPDW100-E
Pump type: Portable self-priming motor pump
Type of Application: Clear water
Fuel: diesel
Delivery suction: 100 mm (4'')
RPM: 3000 rpm
Max. flow rate: 1600 m/l
prevalence: 31 metres
Suction height: 7 mt.
Motor power: 9,6 Hp
Tank capacity: 12,5 Lt.
Starting: Manual
Length: 635 mm
Width: 465 mm
Height: 685 mm
Dry weight: 75 Kg
Are you interested in other motor-pumps? You can see all our range by clicking here.
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
