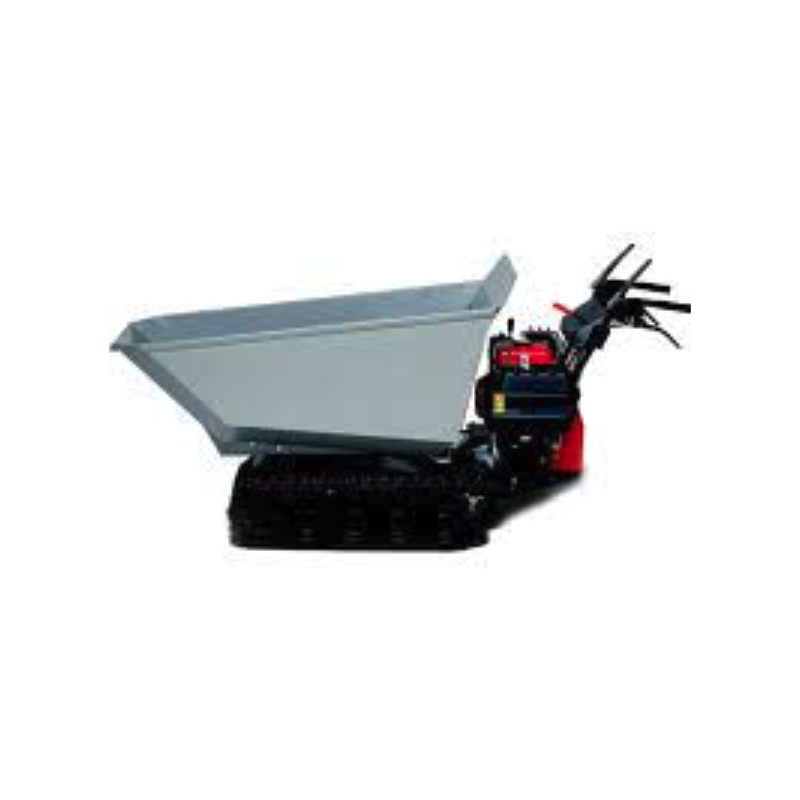

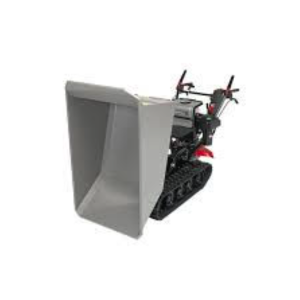

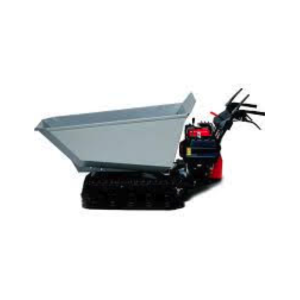

HONDA HP500HNXE Minidumper Tracked - Tipping body with hydraulic lifting
The HONDA HP500HNXE Minidumper Tracked is a compact and powerful machine, designed for transporting materials on difficult terrain,
ideal for construction sites, gardening, agriculture and maintenance.
Equipped with a Honda GXV 160 163cc engine and a power of 4.8 HP (3.6 kW at 3600 rpm), |
it offers reliability and consistent performance over time.
The tipping body is equipped with a hydraulic pantograph lifting system, which guarantees practicality and safety when unloading the material.
The hydrostatic transmission and mechanical steering clutches in oil bath ensure smooth and controlled driving even on slopes and uneven surfaces.
Main features HONDA HP500HNXE Minidumper Cingolato:
Engine Honda GXV 160
Displacement 163cc
Power (HP/KW at 3600g/min) 4.8/3.6
Starter Self-recoil
Tank capacity 03 lt.
Transmission Hydrostatic
Max. forward speed 0-4.3km/h
Max. reverse speed 0 - 3.6km/h
Hydrostatic clutch
Safety clutch
Life saver with machine brake
Machine brake Mechanical
Steering clutch Mechanical in oil bath
Lifting Hydraulic box with pantograph system
Max length 2140 mm
Max width 650 mm
Max height 1100 mm
Track dimensions 180 x 2220 mm
Max track width 600 mm
Handlebar height 950 mm
Body dimensions length X width X height 760 X 1425 X 592 mm
Dumper capacity / Load capacity 330lt
Load capacity on flat surfaces 500kg
Load capacity on slopes 350kg
Dry weight 244 kg
Are you looking for a tracked forklift with different technical characteristics? HERE you can find the entire range of Honda tracked trolleys or other specialized brands.
Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel service does not assume responsibility for any changes made by the manufacturer.
