      H500C KM178F-E

      Engine: KPC KD 178
      Displacement: 296 cc
      Power: 4.7 KW
      Emission Standard: Stage V
      Fueling: Diesel
      Start: Electric
      Transmission: Hydrostatic
      Feed speed: 1 Speed 2.5 Km/h
      Hydraulic motor type: Orbital
      Hydraulic motor displacement: 200cc
      Hydraulic pump type: Double gear
      Displacement: Fixed
      Maximum pressure: 180 bar
      Operating pressure: 150 bar
      Pump capacity: 4.2+4.2 cc/rpm
      Safety System: Block Valves
      Hydraulic Oil Tank: 14 l
      Dump Truck Volume: 0.21 m
      Ribbing: Hydraulic
      Maximum Slope Allowed: 20%
      Flat Load Capacity: 500 kg
      Slope load capacity: 350 kg
      Rubber tracks (mm) : 180 x 60 x 38
      Width: 1478 mm
      Depth: 835 mm
      Height: 1250 mm
      Net weight: 380 kg

      List price
      8,628.69 € tax incl.
      7,072.70 € tax excl.
      Discounted Price
      7,429.80 € tax incl.
      6,090.00 € tax excl.
      Shipping from 106.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MCH
      H500C KM178F-E

      Data sheet

      Fuel
      Diesel
      Engine
      MCH LS208
      Engine rpm (rpm)
      3600
      Engine capacity (cm³)
      196
      Power (KW)
      4.1
      Transmission
      Hydrostatics
      Length (mm)
      1478
      Width (mm)
      800
      Height (mm)
      1250
      Dry weight (Kg)
      310
      Speeds
      1
      Capacità di carico in piano (Kg)
      500

      Specific References

      New

      MCH MINIDUMPER H500C KM178F-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg

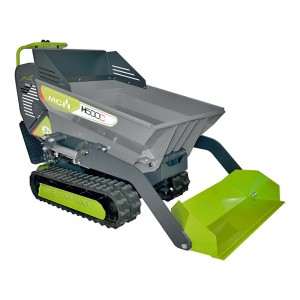

      MCH MINIDUMPER H500C KM178F-E is a power carries equipped with KPC KD 178 STAGE V electric start engine with Diesel power, with a load capacity of up to 500Kg.

      The MCH MINIDUMPER H500C KM178F-E power carries your work easier, make transporting heavy materials easier and safer. In addition, in reducing accidents at work, they also take away a weight from you.

      MCH MINIDUMPER H500C KM178F-E is designed for the most demanding professionals, are equipped with a deep tipper, ideal for transporting materials (rubble, sand, stones, bricks, concrete, wood...). The power carries has a hydrostatic tipping function, which makes your work easier, allowing you to unload up to 500 kg with the simple action of the control lever.

      Thanks to the KPC KD 178 STAGE V diesel engine, you can enjoy incredible performance with low fuel consumption, so you can take full advantage of the MCH MINIDUMPER H500C KM178F-E tracked forklift.

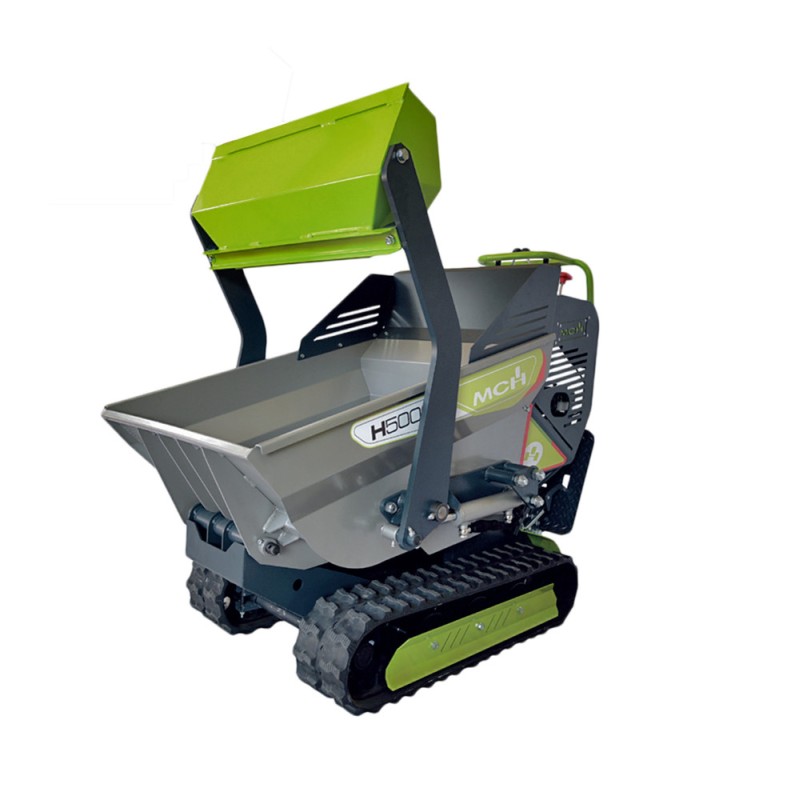

      The MCH MINIDUMPER H500C KM178F-E is equipped with a self-loading shovel, with which you can load and move, without any effort, materials of various kinds, in the construction and agricultural fields. The hydraulic self-loading shovel makes your work easier, make the transportation of heavy materials easier and safer, moreover, in reducing the possibility of accidents at work.

      TECHNICAL FEATURES MCH MINIDUMPER H500C KM178F-E

      Engine: KPC KD 178
      Displacement: 296 cc
      Power: 4.7 KW
      Emission standard: Stage V
      Fueling: Diesel
      Start: Electric
      Transmission: Hydrostatic
      Feed speed: 1 Speed 2.5 Km/h
      Hydraulic motor type: Orbital
      Hydraulic motor displacement: 200cc
      Hydraulic pump type: Double gear
      Displacement: Fixed
      Maximum pressure: 180 bar
      Operating pressure: 150 bar
      Pump capacity: 4.2+4.2 cc/rpm
      Safety System: Block Valves
      Hydraulic Oil Tank: 14 l
      Dump Truck Volume: 0.21 m
      Ribbing: Hydraulic
      Maximum Slope Allowed: 20%
      Flat Load Capacity: 500 kg
      Slope load capacity: 350 kg

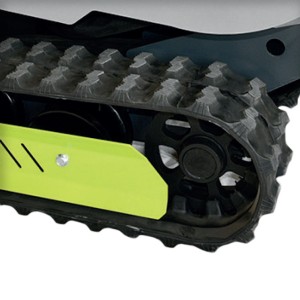

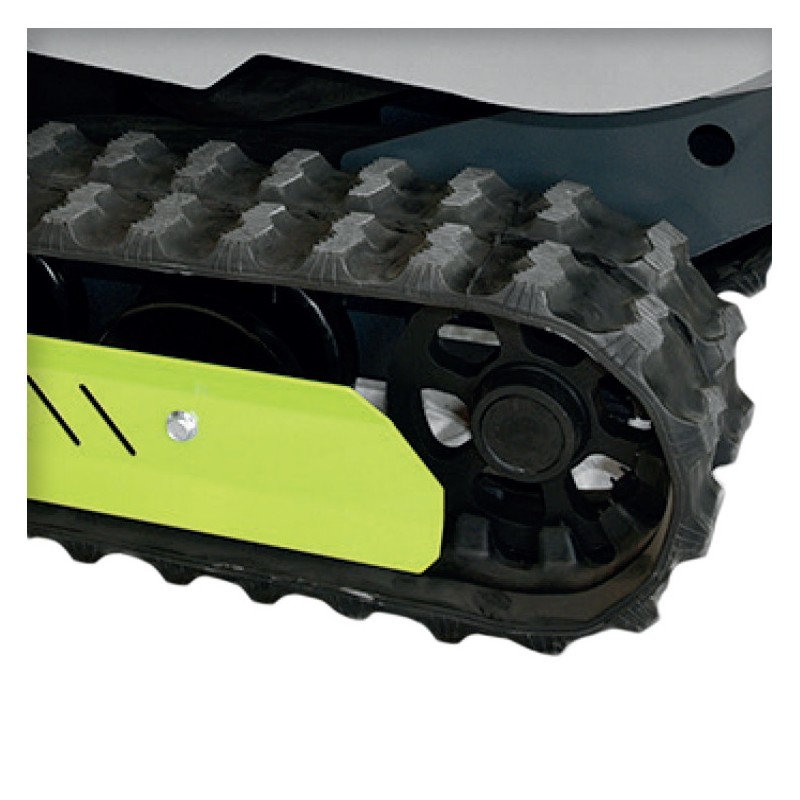

      Rubber tracks (mm) : 180 x 60 x 38
      Width: 1478 mm
      Depth: 835 mm
      Height: 1250 mm
      Net weight: 380 kg

      Are you looking for a crawler with different technical characteristics? Here you can find the full range of power carries from MCH or other specialized brands.

      Images and technical data are not binding and may be subject to revisions by the manufacturer.
