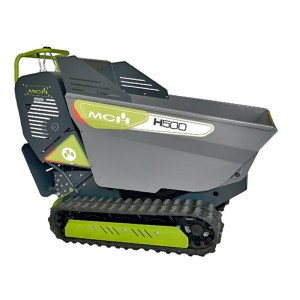

MCH MINIDUMPER H500 KM178-E POWER CARRIES WITH HYDRAULIC DUMPER CART STAGE V 500 Kg

MCH MINIDUMPER H500 KM178-E is a power carries equipped with KPC KD 178 STAGE V electric start engine with Diesel power supply, with a load capacity of up to 500Kg.

The MCH MINIDUMPER H500 KM178-E power carries your work easier, make transporting heavy materials easier and safer. In addition, in reducing accidents at work, they also take away a weight from you.

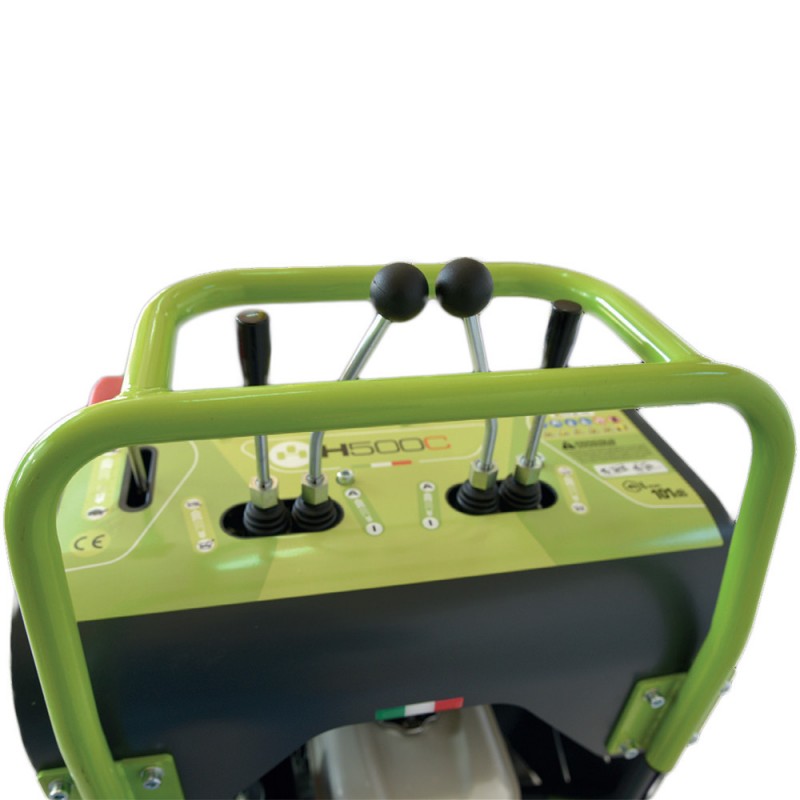

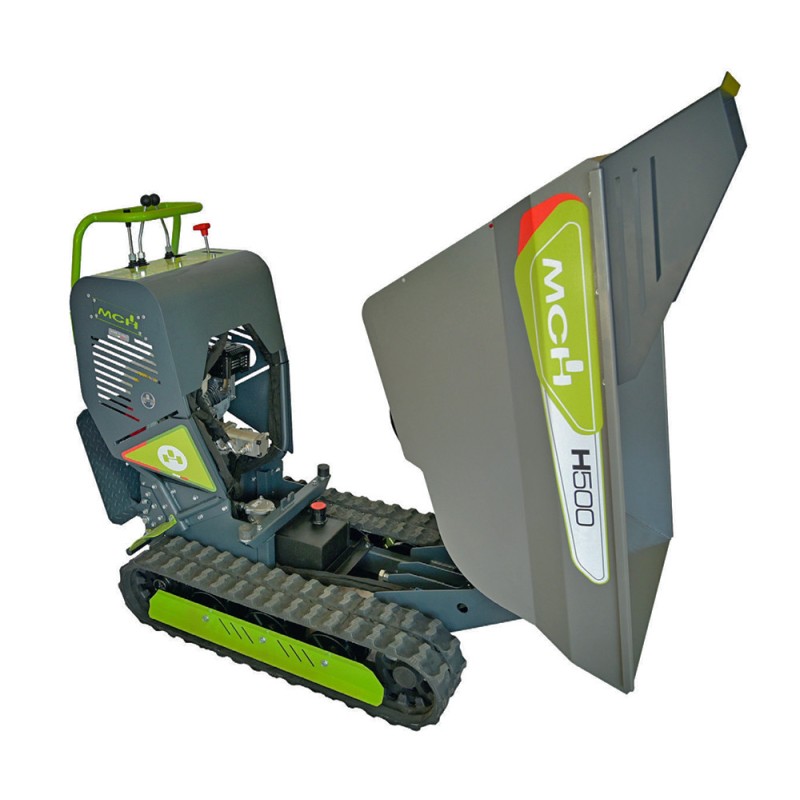

MCH MINIDUMPER H500 KM178-E is designed for the most demanding professionals, are equipped with a deep tipper, ideal for transporting materials (rubble, sand, stones, bricks, concrete, wood...). Its hydrostatic tipping function facilitates your work, allowing you to unload up to 500 kg with the simple action of the control lever.

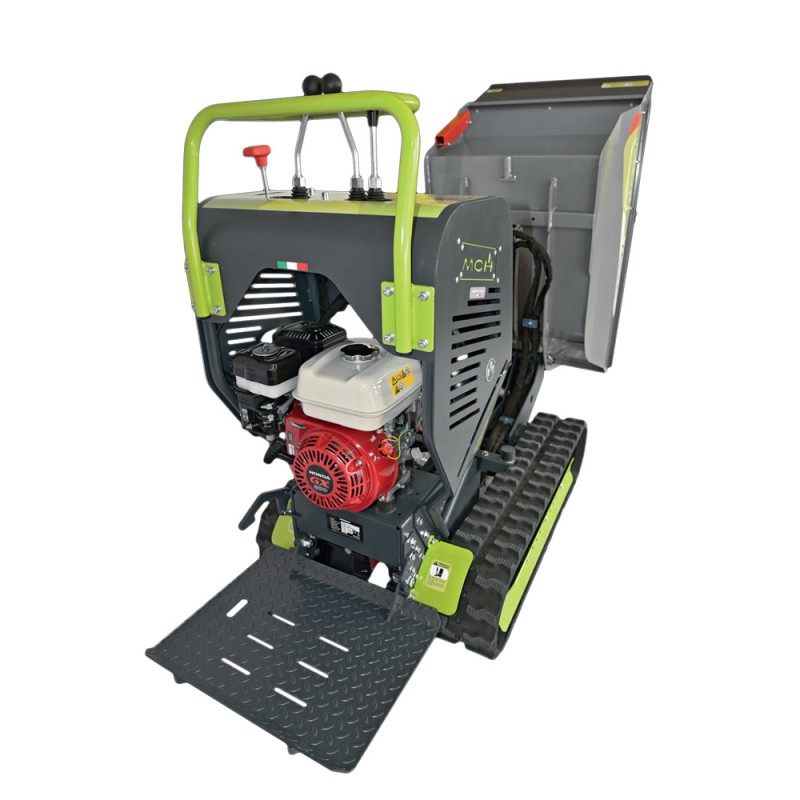

With the KPC KD 178 STAGE V diesel engine, you'll get incredible performance with low fuel consumption, so you can get the most out of the MCH MINIDUMPER H500 KM178-E.

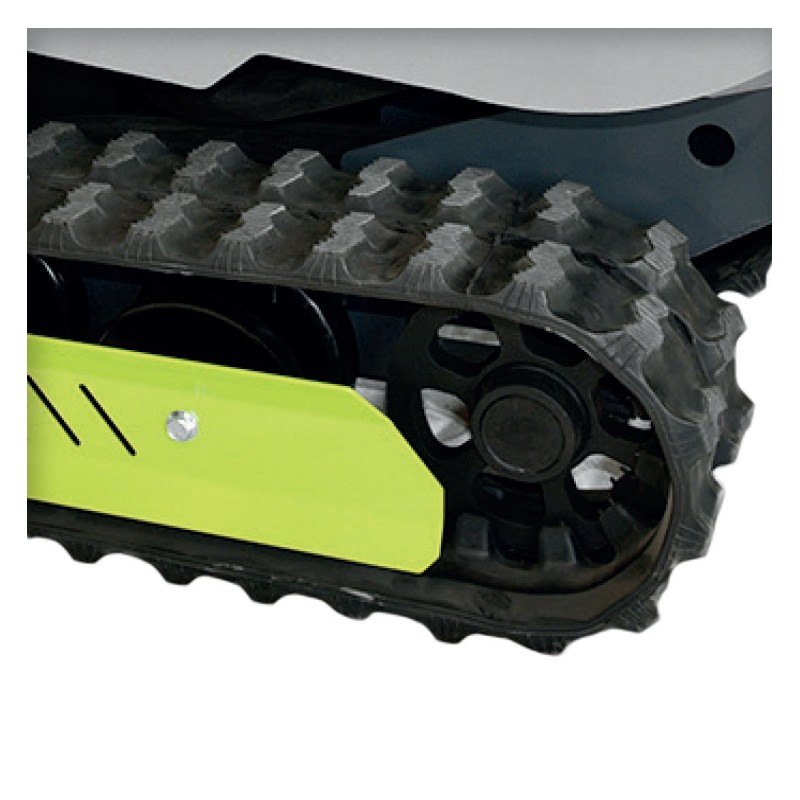

On gravel, rough terrain and even climbing stairs, the unique tread on these trucks provides incredible traction. The tread minimizes ground damage, an important consideration when working on lawns and gardens.

TECHNICAL SPECIFICATIONS MCH MINIDUMPER H500 KM178-E

Engine: KPC KD 178
Displacement: 296 cc
Power: 4.7 KW
Emission standard: Stage V
Fueling: Diesel
Start: Electric
Transmission: Hydrostatic
Feed speed: 1 Speed 2.5 Km/h
Hydraulic motor type: Orbital
Hydraulic motor displacement: 200cc
Hydraulic pump type: Double gear
Displacement: Fixed
Maximum pressure: 180 bar
Operating pressure: 150 bar
Pump capacity: 4.2+4.2 cc/rpm
Safety System: Block Valves
Hydraulic Oil Tank: 14 l
Dump Truck Volume: 0.21 m
Ribbing: Hydraulic
Maximum Slope Allowed: 20%
Flat Load Capacity: 500 kg
Slope load capacity: 350 kg
Rubber tracks (mm) : 180 x 60 x 38
Width: 1478 mm
Depth: 835 mm
Height: 1250 mm
Net weight: 380 kg

Are you looking for a carries with different technical characteristics? Here you can find the full range of power carries MCH or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
