IRONSYSTEM MCT - 1000/7 BRIDGE/COLUMNNA CRANE

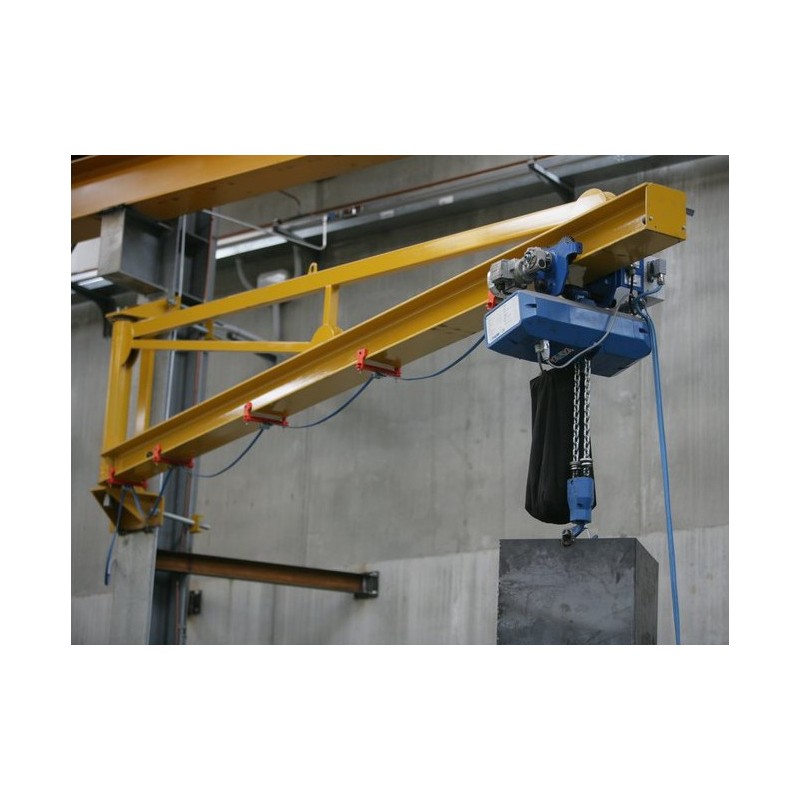

IRONSYSTEM MCT - 1000/7 is a shelf/column crane made up of a 270° manually rotating jib with a maximum capacity of 1000 kg.

The cranes IRONSYSTEM MCT - 1000/7 are an economic, simple and practical solution, generally used to serve single workstations. In order to simplify the work between the different stages of processing, it is also possible to use an overhead crane to connect the workstations and easily move the semi-finished or finished products.

IRONSYSTEM MCT - 1000/7 are made up of an arm in HEA or HEB beam pulled by manual rotation 180° equipped with ball bearings that allow a rotation without tearing.

IRONSYSTEM MCT - 1000/7 are certainly the best solution for the handling of loads, for the servicing of machine tools, for all loading and unloading operations in confined areas. These cranes are made of high quality steel. The boom is a sturdy profiled beam rotating on ball bearings.The rigid structure of the column ensures the stability of the trolley during all phases of lifting.

The peculiarity of these cranes is that they can adapt to cramped areas and limited spaces where other systems could not. In addition, by providing multiple configurations, they can also be installed in facilities with low ceilings, special obstacles or specific requirements.

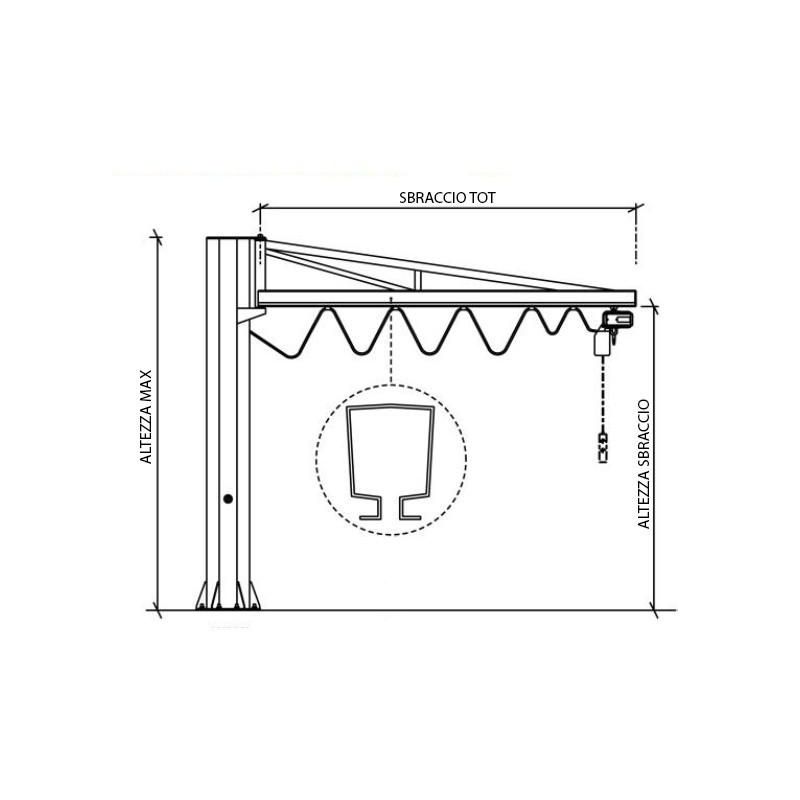

TECHNICAL FEATURES IRONSYSTEM MCT - 1000/7

Load capacity: 1000 Kg
Arm: 7 m
Total height: 4 m
Underarm height: 3,050 m

COMPONENTS

• Optagonal column in bent sheet metal
• Tensioned channel arm rotating on ball bearings
• Adjustable disc brake with ferode.
• Flat cable for hoist feeding.
• Cable holder mushrooms in plastic material.
• On-Off switch.
• Powder paint finish.
