IRONSYSTEM CCT - 250/5 CRANE FLAG/COLUMN

Name: IRONSYSTEM CCT - 250/5 CRANE FLAG/COLUMN
Brand: IRONSYSTEM
SKU: CCT - 250/5
Price: 1839.76 EUR
Availability: InStock

Reference CCT - 250/5

Load capacity: 250 Kg
Arm: 5 m
Total height: 3,5 m
Underarm height: 2,750 m

COMPONENTS
Optagonal column in folded sheet metal (version with column).
Tensioned channel arm rotating on ball bearings.
Adjustable disk brake with ferode.
Flat cable for hoist feeding.
Plastic cable-holding mushrooms.
On-Off switch on the column (version with column).
Powder painting.

List price

2,357.04 € tax incl.

1,932.00 € tax excl.

Discounted Price

1,839.76 € tax incl.

1,508.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Product Details
Description

Reference CCT - 250/5

Data sheet

Load capacity (Kg): 250

Specific References

Condition New

IRONSYSTEM CCT - 250/5 BRIDGE/COLUMN

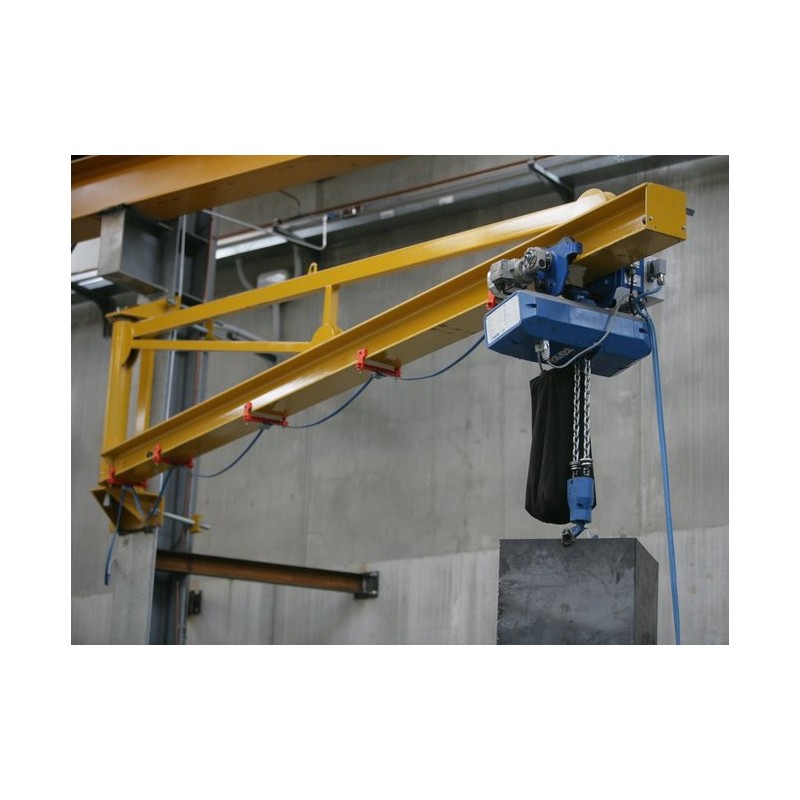

IRONSYSTEM CCT - 250/5 is a bridge/column crane made up of a 270° manually rotating jib with a maximum capacity of 250 kg.

IRONSYSTEM CCT - 250/5 is equipped with ball bearings for the rotation that allow a rotation without tearing. The arm, made of a special press-bent channel profile, stable and light, ensures the best sensitivity of swing and sliding of the carriage. The rigid structure of the column ensures the stability of the truck during all phases of lifting.

In addition, the IRONSYSTEM CCT - 250/5 is equipped with adjustable disk brake with ferode, flat hoist power cable, "mushrooms" holder in plastic material, on-off switch on the column.

IRONSYSTEM CCT - 250/5 respects the standard of painting is of the type to powder RAL1004, but they can also be supplied manufactured hot galvanized or treated with specific cycles of painting for external or marine environment, even highly aggressive.

The IRONSYSTEM crane bridge/column is built to comply with the strictest safety standards for both small and medium-sized companies and for the industrial sector, guaranteeing reliability and safety in the intended environment.

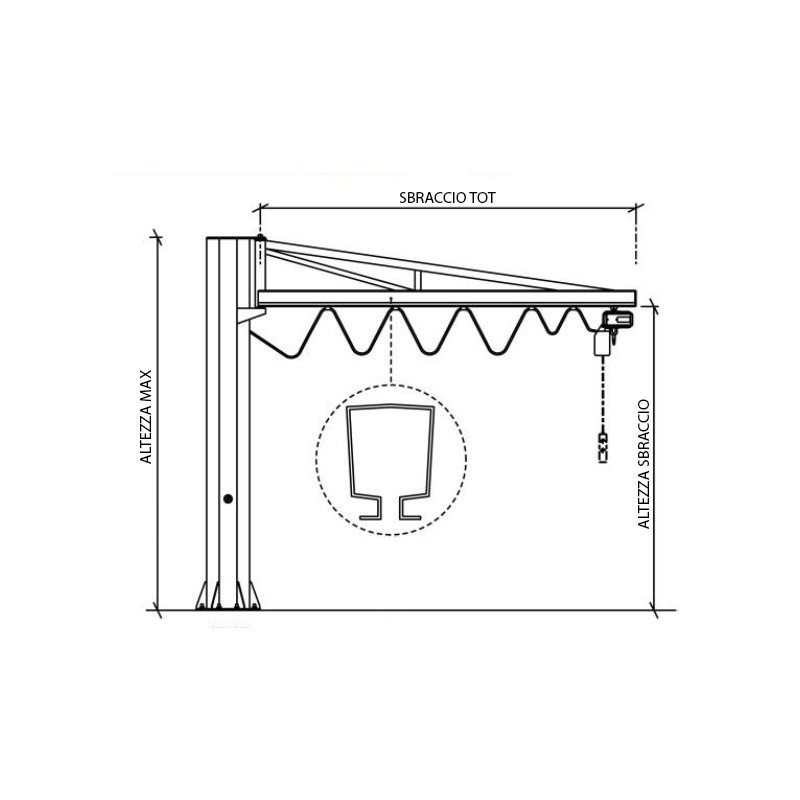

TECHNICAL FEATURES IRONSYSTEM CCT - 250/5

Load capacity: 250 Kg
Arm: 5 m
Total height: 3,5 m
Underarm height: 2,750 m

COMPONENTS

Optagonal column in bent sheet metal.
Tensioned arm in channel, rotating on ball bearings
Adjustable disk brake with ferode.
Flat wire for hoist feeding.
Cable holder mushrooms in plastic material.
On-Off switch.
Powder coating.

Looking for a crane with different technical features? Here you can find the whole range of IRONSYSTEM or other specialized brands

Images and technical data are not binding and may be subject to revision by the supplier.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
