IRONSYSTEM MCT - 125/3 BRIDGE/COLUMN

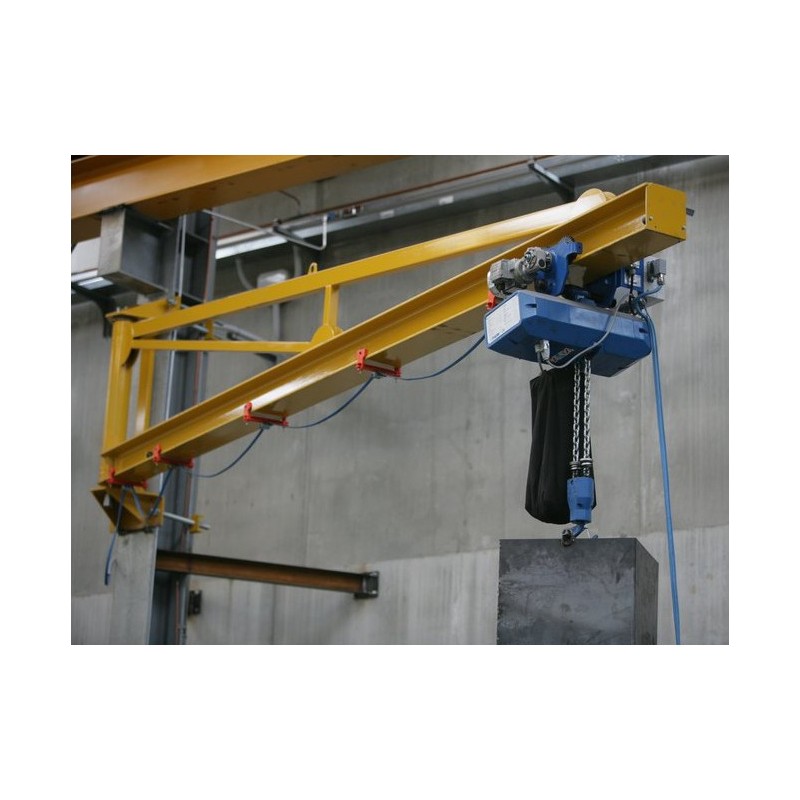

IRONSYSTEM MCT - 125/3 is a shelf/column crane made up of a 270° manually rotating jib with a maximum capacity of 125Kg.

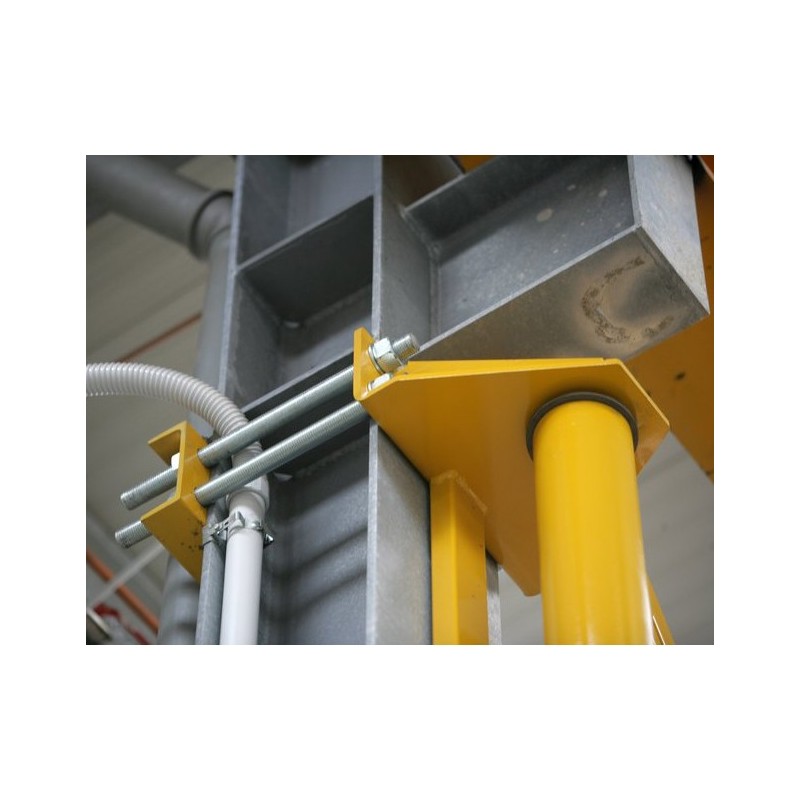

IRONSYSTEM MCT - 125/3 consists of a boom in HEA or HEB truss pulled manually rotating 180° equipped with ball bearings for rotation that allow a rotation without tearing. The brackets are made of bent sheet metal to be anchored to the existing column by means of counter-brackets and tie-rods.

The peculiarity of these plants is the possibility to adapt to narrow working areas and limited spaces where other plants could not be arranged. In addition, by providing multiple configurations, they can also be installed in structures with low ceilings, with particular obstacles or with specific requirements.

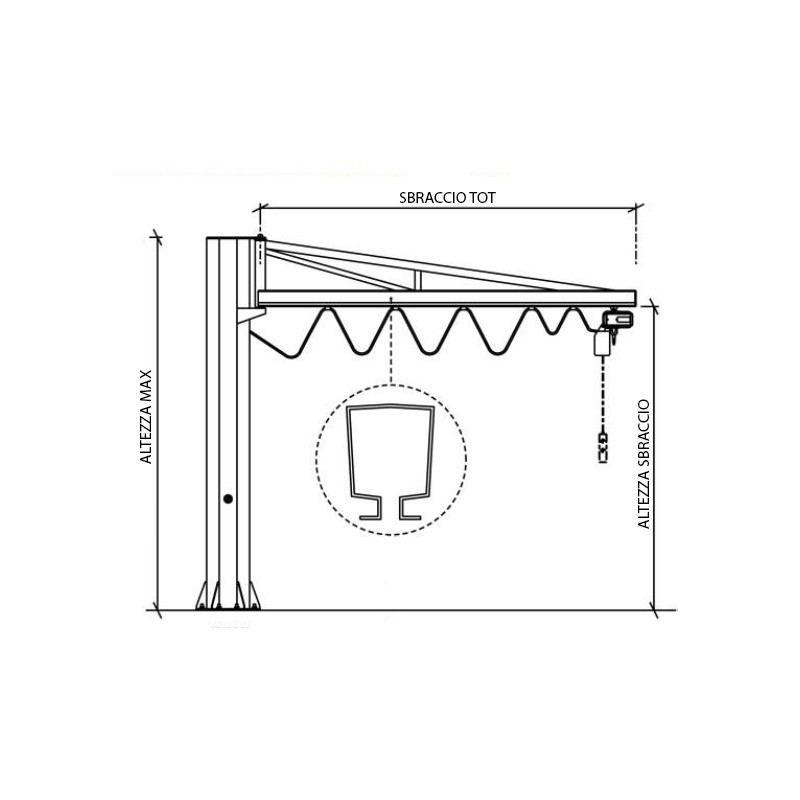

TECHNICAL FEATURES IRONSYSTEM MCT - 125/3

Load capacity: 125 Kg
Arm: 3 m
Total height: 3 m
Underarm height: 2,450 m

COMPONENTS
Optagonal column in folded sheet metal.
Tensioned channel arm rotating on ball bearings.
Adjustable disk brake with ferode.
Flat cable for hoist feeding.
Plastic cable holder.
On-Off switch on the column.
Powder painting.

Looking for a crane with different technical features? Here you can find the whole range of IRONSYSTEM or other specialized brands

Images and technical data are not binding and may be subject to revision by the supplier.
