IRONSYSTEM MCT - 500/5 BRIDGE/COLUMN crane

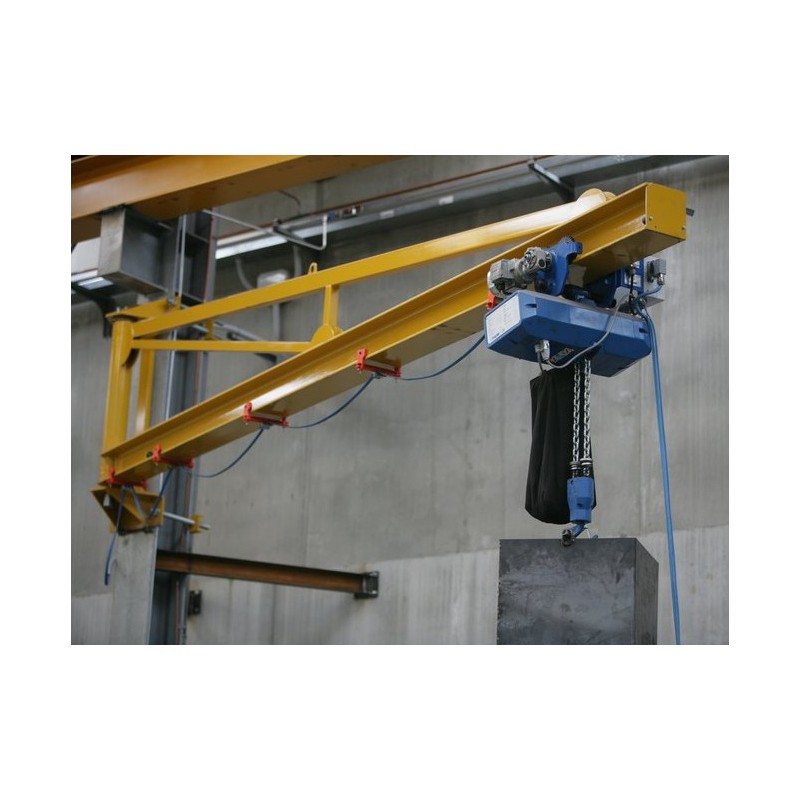

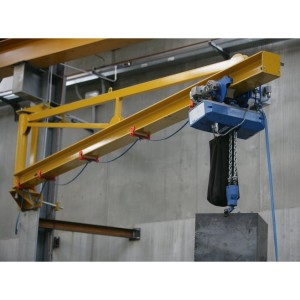

IRONSYSTEM MCT - 500/5 is a shelf/column crane consisting of a 270° manually rotating jib with a maximum capacity of 500 kg.

The cranes IRONSYSTEM MCT - 500/5 are an economic, simple and practical solution, generally used to serve single workstations. In order to simplify the work between the different processing phases, it is also possible to use an overhead crane to connect the workstations and easily move the semi-finished or finished products.

The peculiarity of these plants is that they can adapt to cramped work areas and limited spaces where other plants could not be placed. In addition, by providing multiple configurations, they can also be installed in facilities with low ceilings, special obstacles or specific needs.

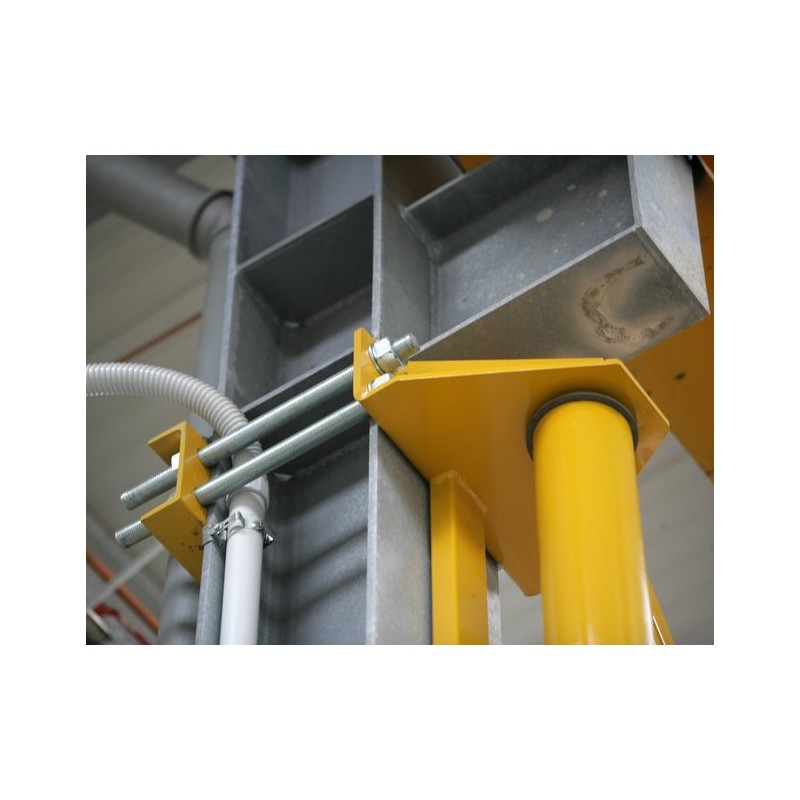

IRONSYSTEM MCT - 500/5 are made up of an arm in HEA or HEB beam pulled by manual rotation 180° equipped with ball bearings for rotation that allow it to rotate without tearing. The brackets are made of bent sheet metal to be anchored to the existing column by means of counter-brackets and tie-rods.

In addition the IRONSYSTEM MCT - 500/5 is equipped with adjustable disk brake with ferode, flat hoist power cable, "mushrooms" cable holder in plastic material, on-off switch on the column.

The IRONSYSTEM crane is made to comply with the strictest safety standards both for small and medium-sized companies and for the industrial sector, guaranteeing reliability and safety in the intended environment.

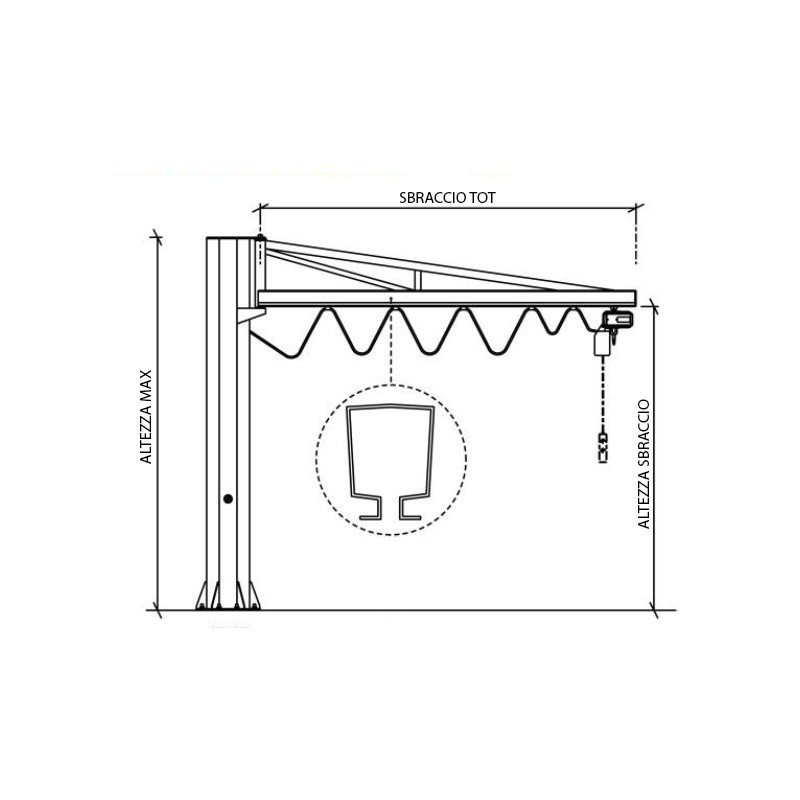

TECHNICAL FEATURES IRONSYSTEM MCT - 500/5

Load capacity: 500 Kg
Arm: 5 m
Total height: 3.5 m
Underarm height: 2,750 m

COMPONENTS

• Optagonal column in bent sheet metal
• Tensioned channel arm rotating on ball bearings
• Adjustable disc brake with ferode.
• Flat wire for hoist feeding.
• Cable holder mushrooms in plastic material.
• On-Off switch.
• Powder paint finish.

Looking for a crane with different technical characteristics? Here you can find the whole range of IRONSYSTEM or other specialized brands

Images and technical data are illustrative and may be subject to change or revision by the supplier.
