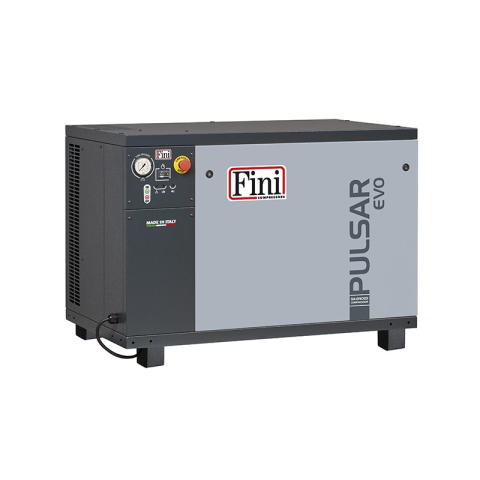

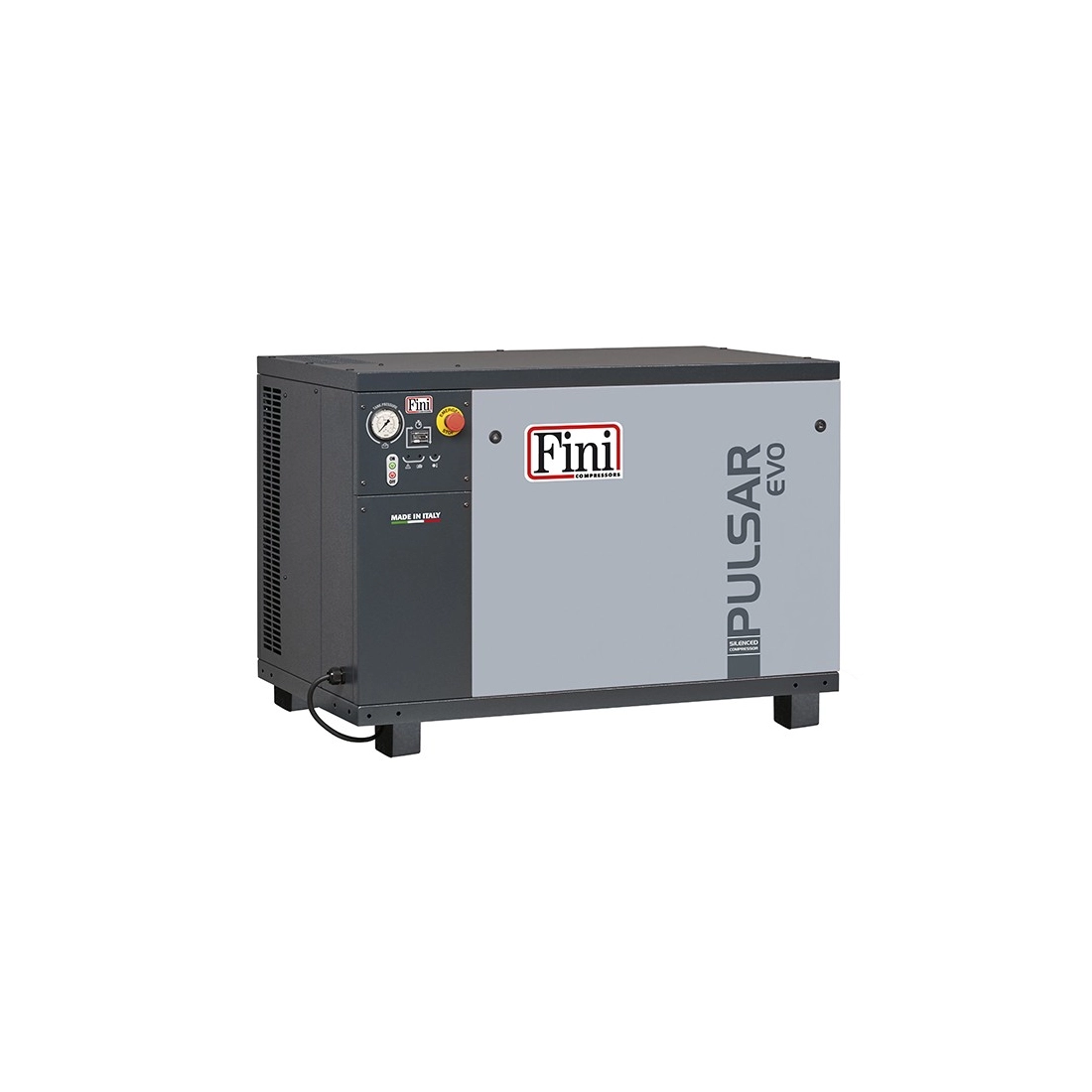

FINI PULSAR EVO BK114-5.5 PUMPING GROUP 5.5HP

FINI PULSAR EVO BK114-5,5 is a silenced pumping group that can deliver a maximum pressure of 10 bar by means of a BK114 pump with a power of 4KW.

FINI PULSAR EVO BK114-5.5 have been designed to solve the problem of noise in working environments, they stand out on the market for the lowest noise level in their category. The pumping unit is the heart of a piston compressor and for this reason Fini pumping units are designed and manufactured to ensure high performance, efficiency and reliability over time.

The duration and efficiency of the pumping unit is largely determined by the number of revolutions per minute of the head. In fact, the lower the number of revolutions, the longer the life of the compressor will be. The reduction of the number of revolutions is obtained by means of pulleys of different diameters applied to the motor and the head respectively.

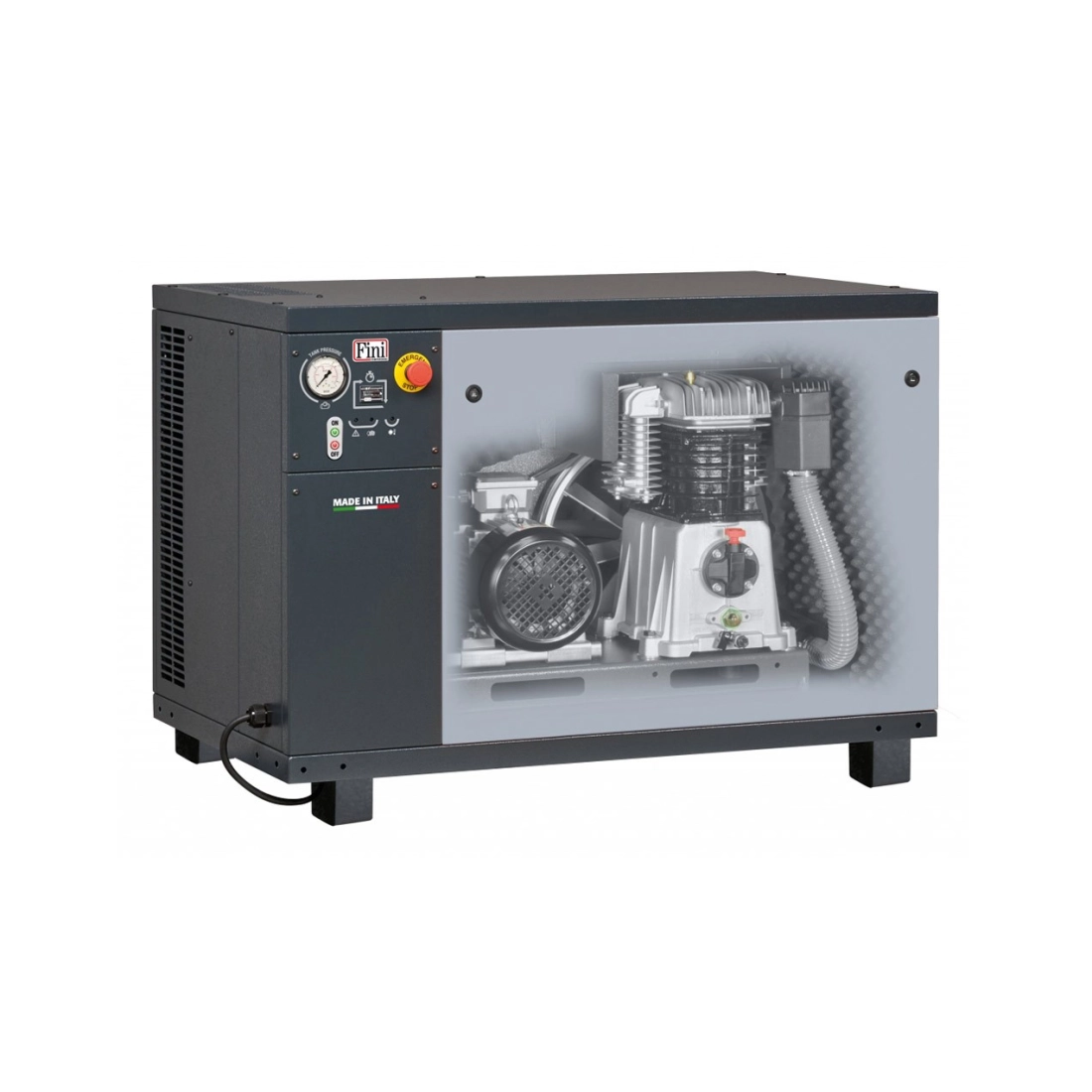

The induction motor of the FINI PULSAR EVO BK114-5.5 is characterized by its long life and low maintenance requirements. In fact, this motor is brushless, the main component subject to wear in electric motors. The motor of the FINI PULSAR EVO is covered with soundproof panels which reduce the noise level, allowing the use of the compressor also in difficult rooms.

The pumping unit FINI PULSAR EVO BK114-5.5 is able to deliver a power of 5.5Hp - 4000W. Equipped with 2 cylinders, its maximum pressure is 10 bar, it is lubricated and its motor reaches a speed of 1370 rpm.

TECHNICAL FEATURES FINI PULSAR EVO BK114-5.5

Voltage: 400 V
Frequency: 50 Hz
Pump: BK114
RPM: 1370 RPM
Power: 4 KW - 5.5 HP
Air output: 580 Lt/min - 20. 5 cfm
Pressure: 10 bar - 145 psi
BSP: 2'
Acoustic pressure: 64 dB(A)
Length: 1200 mm
Width: 810 mm
Height: 1210 mm
Weight: 176 Kg
