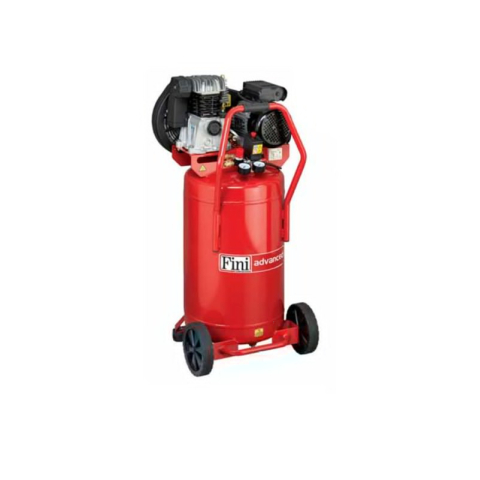

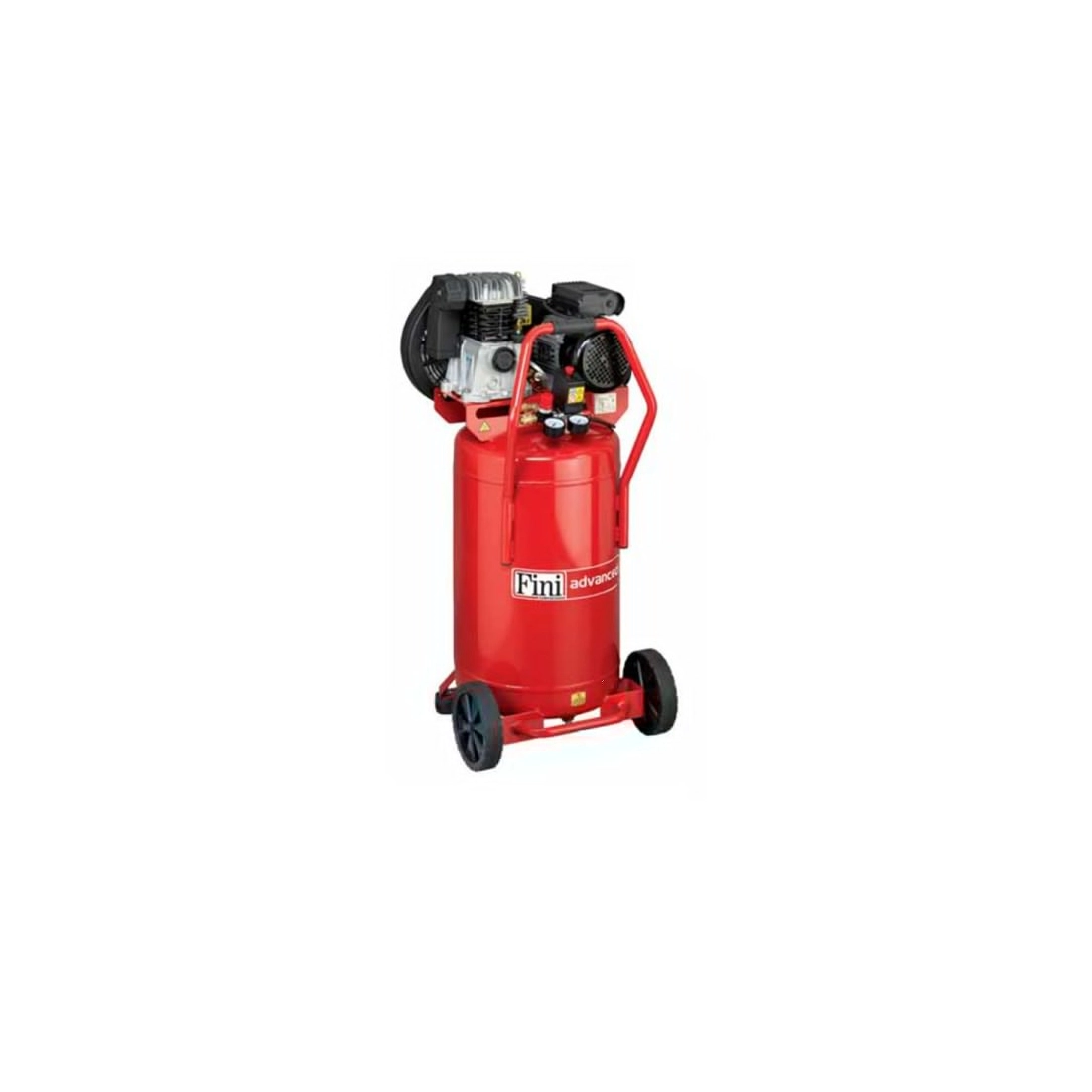

FINI MK103-90V-3M COMPRESSOR

Fini MK103-90V-3M is a compressor with a capacity of 90 l that can deliver a maximum pressure of 10 bar by means of an MK103 pump with a power of 3 Hp.

Fini MK103-90V-3M is equipped with front control systems to make it more convenient to use even in tight spaces. The controls are practical and easy to understand, suitable for both professionals and beginners.

The Fini MK103-90V-3M compressor combines a powerful and reliable electric motor with a large air reserve, this makes this compressor suitable for all pneumatic accessories that require medium to high air consumption.

Fini MK103-90V-3M is equipped with large anti-vibration feet for added stability during operation.

Fini compressor is an efficient way to solve the problem of noise in working environments, these compressors are very quiet and have a sound emission level of 94dB at a distance of 7m. The combination of high quality materials and the highest accuracy in the assembly of the machine ensure quietness, excellent performance and long life.

The fundamental characteristic of the FINI MK103-90V-3M is its vertical conformation, in this way, the compressor has a reduced overall volume and can be used by anyone who has space problems.

TECHNICAL FEATURES OF THE FINI MK103-90V-3M

Phase Type: Single-phase
Power Supply Voltage: 230 V
Maximum Pressure: 10 bar
Tank Volume: 90 l
Sound Emission Level: 94dB(A)/7m
Motor Type: single-phase electric
Rated Power: 3 Hp
Silenced: No
Air Intake: 365 l/min
Pump type: single-stage
Lubrication: oil
Number of cylinders: 2
Cooling collector: No
Transmission type: belt drive
Revolutions per minute head: 1375 RPM
Length: 605 mm
Width: 500 mm
Height: 1135 mm
Dry weight: 68 Kg

If you are looking for another product then you can check out our catalog other compressors FINI or other specialized brand.

Images and technical data are not binding and may be subject to revision by the supplier.
