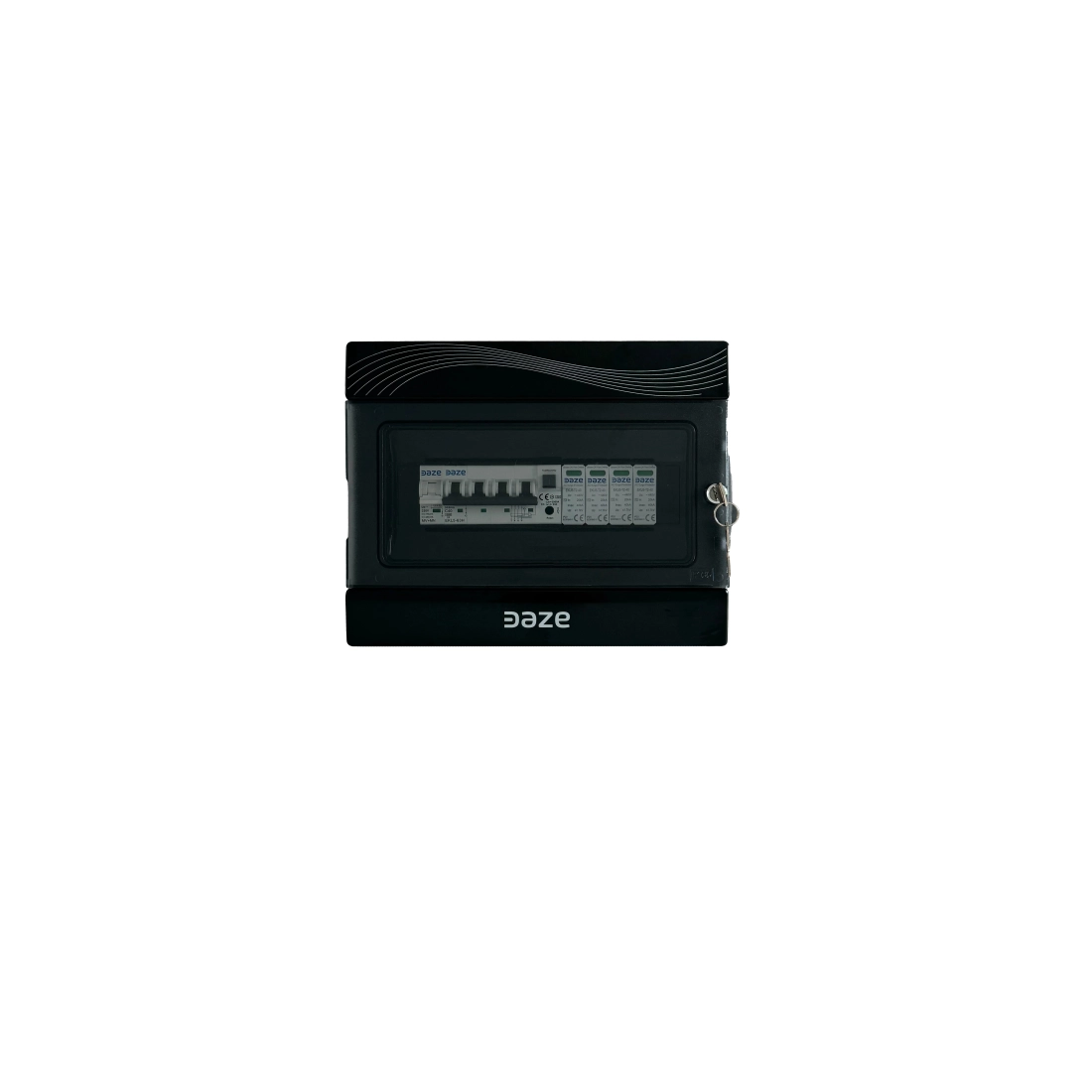

Protection Box Pro Three-Phase
PB0132TGP
Pre-wired protection panel, 12 modules, gray, with key for AC charger line, three-phase 3P+N differential circuit breaker, 32A, type A, Idn=30mA, curve C, 10kA, three-phase 4P AC arrester, type 2, 40kA, and permanent 230 V AC surge protection.
PB0132TGP
Data sheet
- Phase
- Three phase
- IP Protection
- IP54
- Operating temperature
- Da -30° C / +55°
- Dimensions [mm]
- 215 x 240 x 105 mm
- Protezione IK
- IK10
Specific References
Protection Box Pro is a lockable protection panel designed for the installation of electric vehicle chargers without built-in protections. It is an 8 or 16-module protection panel with a Type A residual current circuit breaker and permanent and transient overvoltage protection.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.4 other products in the same category:
Pre-wired protection panel, 12 modules, gray, with key for AC charger line, three-phase 3P+N differential circuit breaker, 32A, type A, Idn=30mA, curve C, 10kA, three-phase 4P AC arrester, type 2, 40kA, and permanent 230 V AC surge protection.
