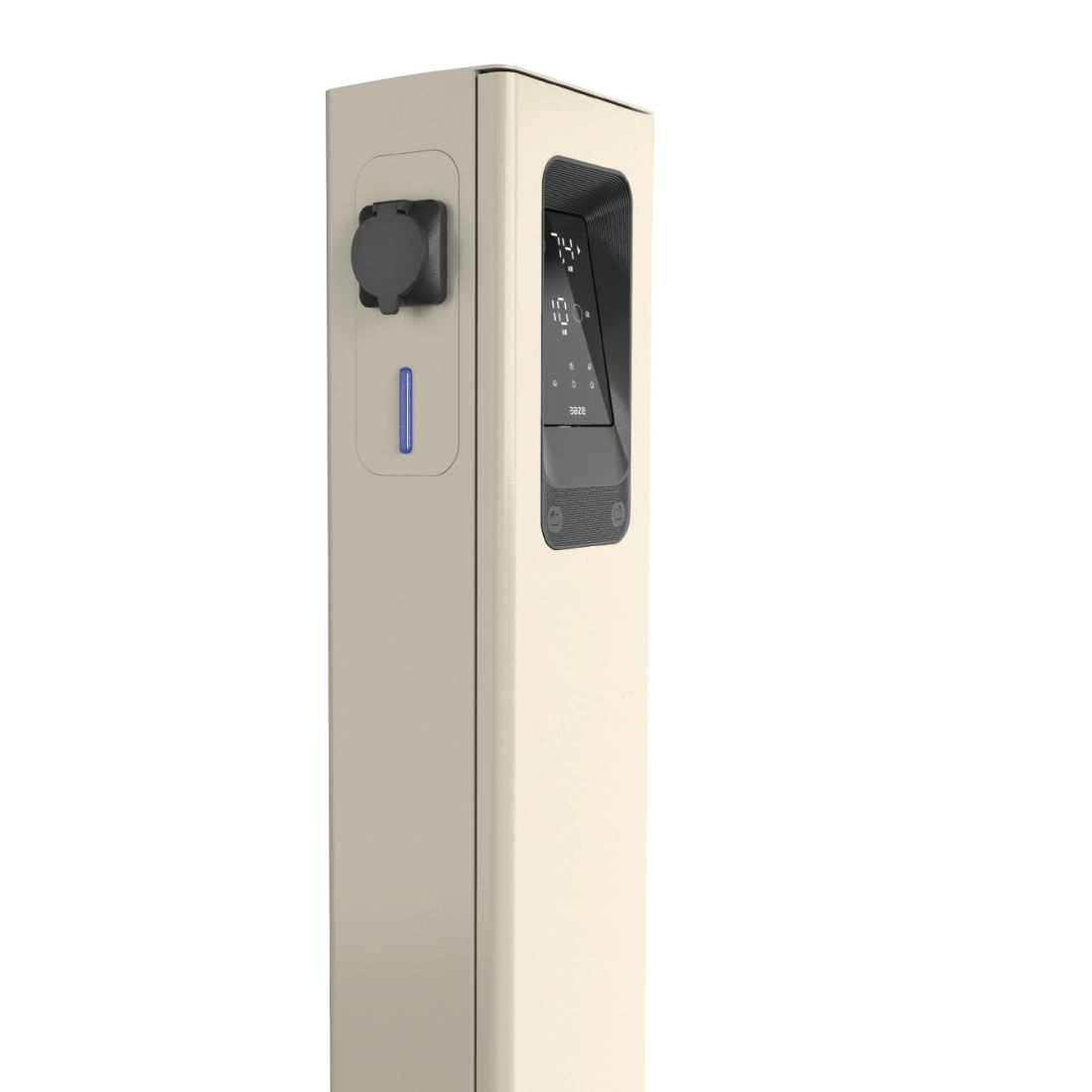

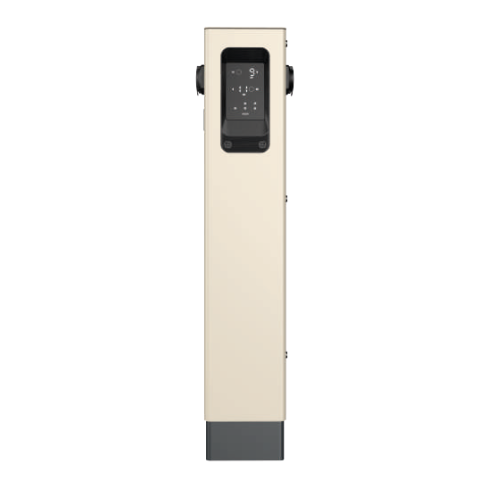

DazeBox S Urban Charging Station for Electric Cars 64A 2x22.2KW
US01IT64TCPI
Urban S Three-phase 64 A, 2X22 kW, type 2 socket, full AISI304 stainless steel body, monochrome display, Bluetooth, WiFi, and Ethernet connectivity, compatible with 4G USB modems, dual RFID reader, integrated differential magnetothermal protection, integrated release coil
Charging mode: Mode 3
Maximum rated current: Adjustable from 12 A to 64 A
Maximum power: 2 x 22,2 kW threephase
Connessione: 2 x Type 2 Socket
Load Balancing: Up to 25 chargers (50 charging points) in a single network
Protection class IP: IP54
Protection class IK: IK10
Operating temperature: From -30° C to +55° C
Housing dimensions: 1360 x 245 x 180 mm
Housing material: AISI 304 steel
Installation: Ground
Update software: Via Internet
Residual Current Breaker with Over-Current (RCBO): Type A (30 mA), C curve
US01IT64TCPI
Data sheet
- Phase
- Three phase
- Nominal current (A)
- 64
- Charging socket
- mode 3
- IP Protection
- IP54
- Operating temperature
- Da -30° C / +55°
- Dimensions [mm]
- 1360 x 245 x 180 mm
- Maximum power consumption
- 2x22,2 kW
- Connection points
- 2x25
- MID-certified current measurement
- No
- Protezione IK
- IK10
- Protezione magnetotermica differenziale
- Tipo A (30 mA), curva C
Specific References
DazeBox S Urban Electric Vehicle Charging Station 64A 2x22.2KW
Unmatched durability and toughness for public charging. Urban integrates all of Daze's advanced charging technology into a sleek, ultra-compact stainless steel body, engineered for maximum toughness and resilience.
Durability and easy maintenance
Urban is IK10 certified, designed to withstand harsh environments with its rugged AISI 304 stainless steel body. The large front door provides easy access to internal components, enabling quick and efficient maintenance.
Effortless installation
Designed for maximum simplicity, the Duo requires only a single supply line and eliminates the need for trip coils, with integrated RCBOs already built in. For added peace of mind, optional protection against permanent and transient overvoltages is available.
Balancing between two charging points
Powered by a single supply line, Duo intelligently and automatically allocates available energy between both charging points. This ensures optimal charging performance for multiple vehicles without the need for additional infrastructure.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
