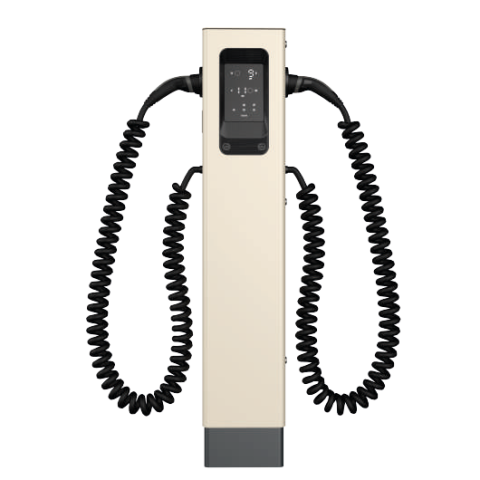

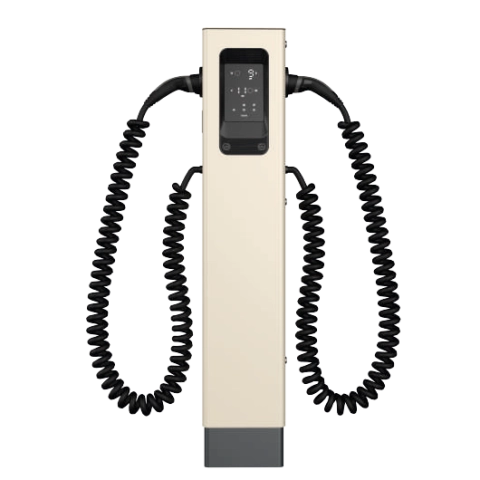

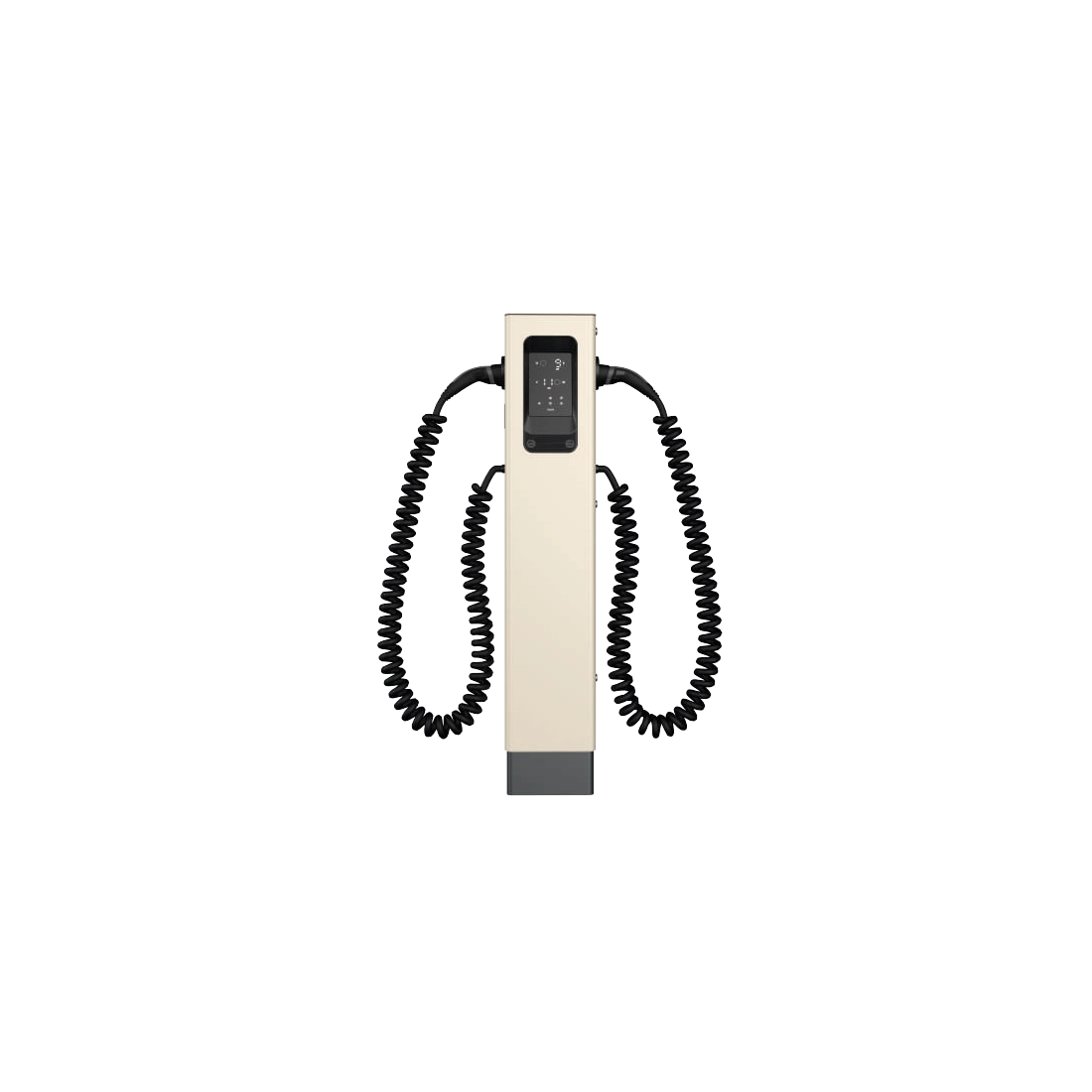

DazeBox T Urban Charging Station for Electric Cars 64A 2x22.2KW

  • New
  • On sale!
DazeBox T Urban Charging Station for Electric Cars 64A 2x22.2KW
DazeBox T Urban Charging Station for Electric Cars 64A 2x22.2KW
DazeBox T Urban Charging Station for Electric Cars 64A 2x22.2KW
DazeBox T Urban Charging Station for Electric Cars 64A 2x22.2KW
UT01IT64TCRI5S

Urban T Three-phase 64 A, 2X22 kW, extendable spiral cable up to 5 m type 2, full AISI304 stainless steel body, monochrome display, Bluetooth, WiFi, Ethernet connectivity and compatibility with 4G USB modem, dual RFID reader, integrated differential magnetothermal and permanent and transient overvoltage protection, integrated release coil

Charging mode: Mode 3

Maximum rated current: Adjustable from 12 A to 64 A

Maximum power: 2 x 22,2 kW threephase

Connessione: 2 x Type 2 Cable

Connector cable length: 5 m

Load Balancing: Up to 25 chargers (50 charging points) in a single network

Protection class IP: IP54

Protection class IK: IK10

Operating temperature: From -30° C to +55° C

Housing dimensions: 1360 x 245 x 180 mm

Housing material: AISI 304 steel

Installation: Ground

Update software: Via Internet

Residual Current Breaker with Over-Current (RCBO): Type A (30 mA), C curve

POP and SPD overvoltage protection: SPD Type 2 40kA / POP 285 V ±5%

Prezzo
3,614.00 € tax excl.
4,409.08 € tax incl.
Quantity :
Shipping from 36.60 € to Italy buy it today. tax incl.
Calculate Shipping Cost
Ask a question
Offer on letterhead
Download PDF
Ask a question

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead
Daze
UT01IT64TCRI5S

Data sheet

Phase
Three phase
Nominal current (A)
64
Charging socket
mode 3
IP Protection
IP54
Operating temperature
Da -30° C / +55°
Dimensions [mm]
1360 x 245 x 180 mm
Maximum power consumption
2x22,2 kW
Connection points
2x25
Protezione IK
IK10
Lunghezza cavo
5 m
Protezione magnetotermica differenziale
Tipo A (30 mA), curva C
Protezione contro le sovratensioni
SPD Tipo 2 40kA / POP 285 V ±5%
Misuracorrente certificata MID
No

Specific References

DazeBox T Urban Electric Vehicle Charging Station 64A 2x22.2KW

Unmatched durability and toughness for public charging. Urban integrates all of Daze's advanced charging technology into a sleek, ultra-compact stainless steel body, engineered for maximum toughness and resilience.

Durability and easy maintenance

Urban is IK10 certified, designed to withstand harsh environments with its rugged AISI 304 stainless steel body. The large front door provides easy access to internal components, enabling quick and efficient maintenance.

Effortless installation

Designed for maximum simplicity, the Duo requires only a single supply line and eliminates the need for trip coils, with integrated RCBOs already built in. For added peace of mind, optional protection against permanent and transient overvoltages is available.

Balancing between two charging points

Powered by a single supply line, Duo intelligently and automatically allocates available energy between both charging points. This ensures optimal charging performance for multiple vehicles without the need for additional infrastructure.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
