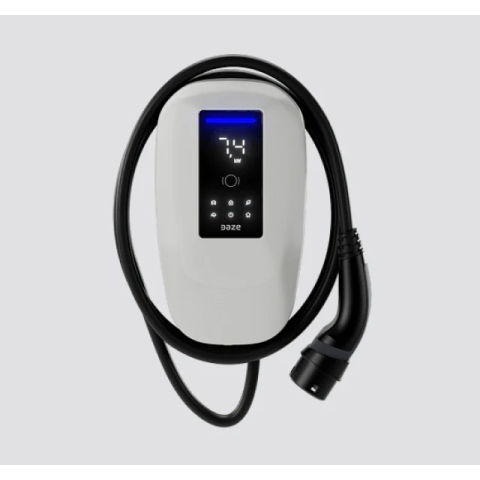

DazeBox T Share single-phase 32 A, 7.4 kW, 5 m type 2 cable, monochrome display, Bluetooth, WiFi, and Ethernet connectivity, compatible with 4G USB modems, RFID reader, integrated release coil
Charging mode: Mode 3
Maximum rated current: Adjustable from 6.5 A to 32 A
Maximum power: 7.4 kW single-phase
Connection: Type 2 cable / Type 2 socket
Connector cable length: 5 m / 7 m
Load Balancing: Up to 50 chargers (WiFi or Ethernet is required for more than one charger)
Protection class IP: IP56
Protection class IK: IK10
Operating temperature: From -30° C to +55° C
Dimensions without cable: 200 x 356 x 110 mm
Installation: Wall or stand SD01
Update software: Via Internet
