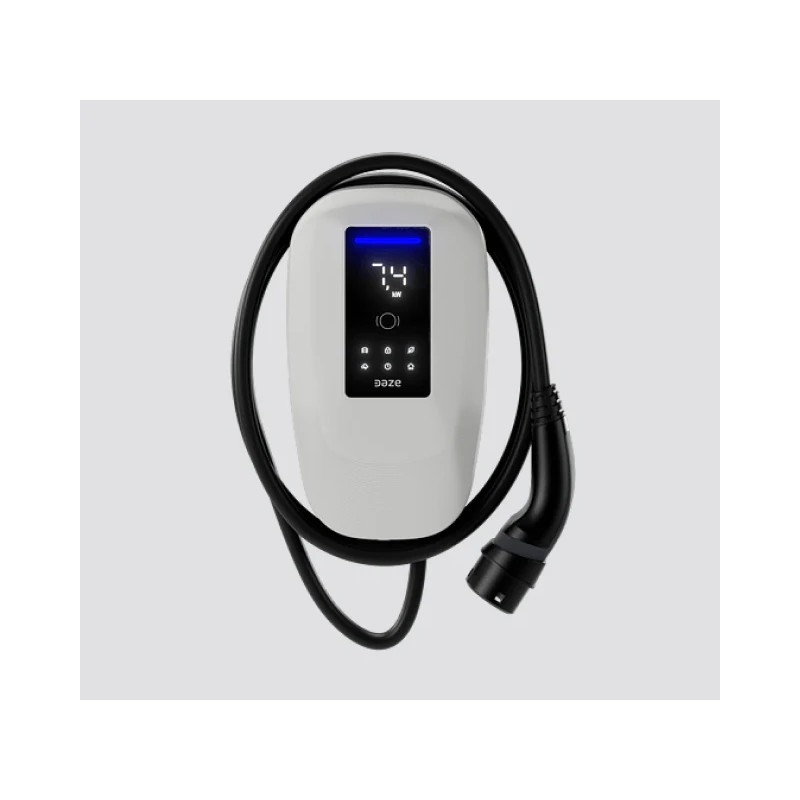

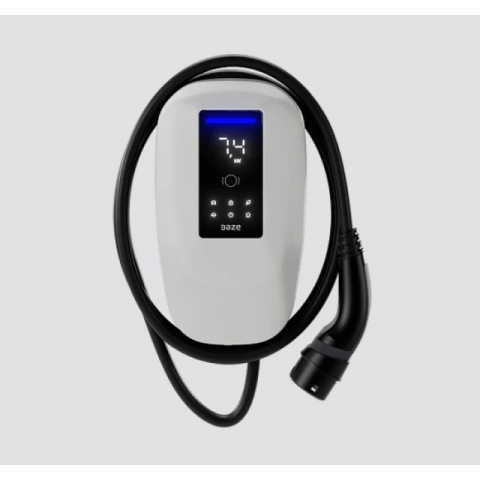

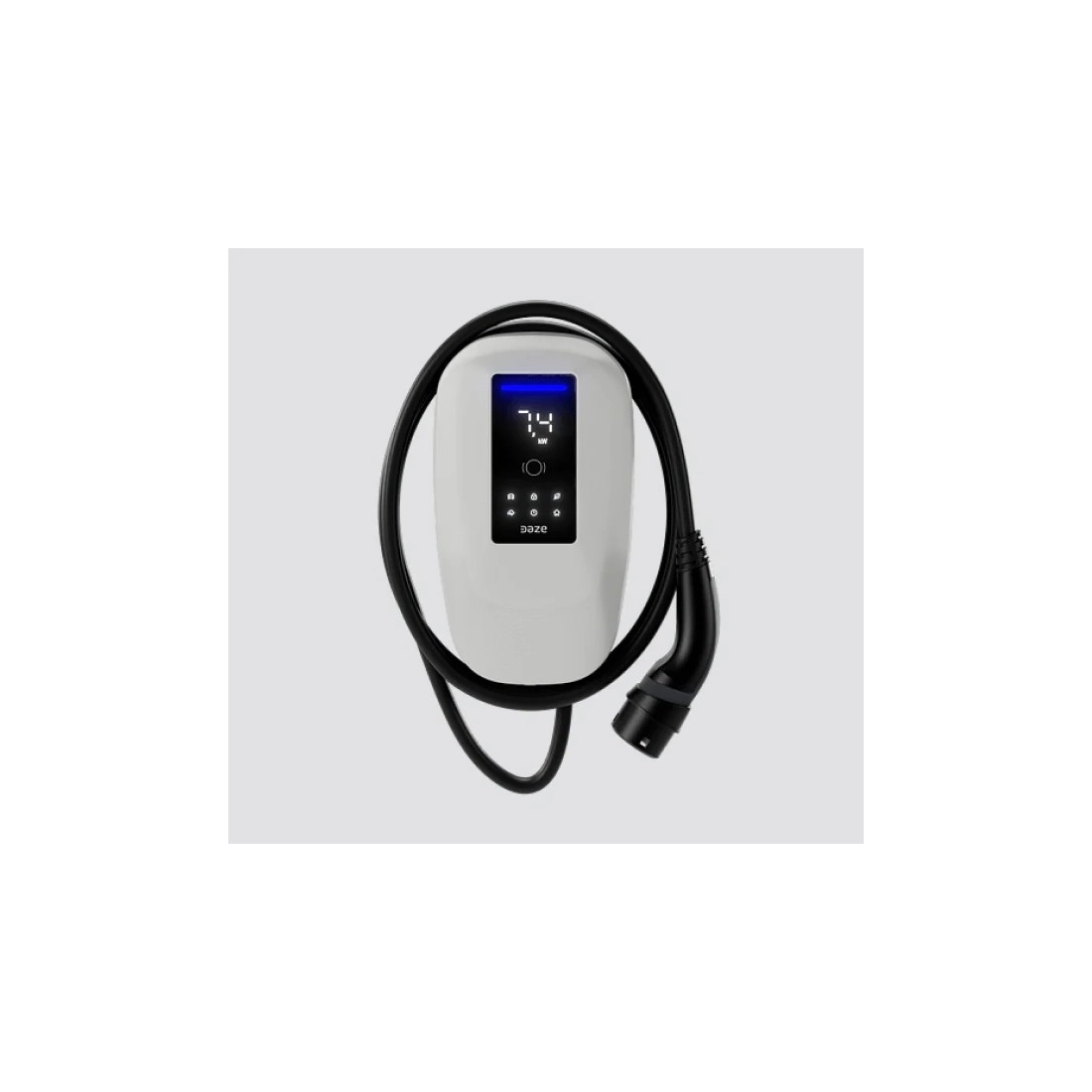

DazeBox T Share single-phase 32 A, 7.4 kW, 5 m type 2 cable, monochrome display, Bluetooth, WiFi, and Ethernet connectivity, compatible with 4G USB modems, RFID reader, integrated release coil
Charging mode: Mode 3
Maximum rated current: Adjustable from 6.5 A to 32 A
Maximum power: 7.4 kW single-phase
Connection: Type 2 cable / Type 2 socket
Connector cable length: 5 m / 7 m
Load Balancing: Up to 50 chargers (WiFi or Ethernet is required for more than one charger)
Protection class IP: IP56
Protection class IK: IK10
Operating temperature: From -30° C to +55° C
Dimensions without cable: 200 x 356 x 110 mm
Installation: Wall or stand SD01
Update software: Via Internet
Data sheet
Specific References
Thanks to advanced technology, it enables energy management for a network of up to 50 chargers and 4G connectivity, making it ideal for semi-public spaces. It ensures maximum performance even at high temperatures thanks to the internal cooling system.
Experience maximum charging speed, even in high temperatures, thanks to the advanced internal cooling system. Enjoy optimal connectivity through a 4G USB stick, while safety and convenience are guaranteed by the internal RCBO, accessible via key.
The advanced electronics of the Dazebox Share facilitate energy balancing in master/slave mode for up to 50 chargers while taking into account the consumption of other devices under the same counter. Dazebox Home, Duo, and Urban chargers can also be seamlessly integrated into the same network managed by the Dazebox Share.
Thanks to the extensive range of OCPP 1.6 JSON commands, Dazebox Share offers advanced functionalities for all major electric vehicle charger management systems.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
