Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW

DCFilleeEV
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW
      Reefilla DC Fillee EV Charging Three-phase Mobile Storage System 35KW

      Continuous power[kW] 35

      Peak power 40 kw

      Battery capacity (kWh) 22

      Discharge time [h] 0.6 (100% load)

      Discharge time [h] 1.2 (50% load)

      Nominal Battery Voltage [V] 180

      Output voltage [V] 500 (DC) 50 Hz

      Frequency (Hz) 50

      Output current [A] 100A

      Output socket Type 2 (DC) - CCS2

      Charging socket CEE 1P+N+PE (16-32 A)

      Charger type External

      Charging power [kW] 3.5-7

      Charging time [h] 3.1

      LTE-MQTT connectivity

      LED control panel + Connected App

      Battery type Li-Ion NMC

      Product dimensions (mm) 1040 x 610 x 400

      Weight (kg) 115

      Temperature [°C] -10+40

      IP protection IP31

      Guaranteed cycles (80%) 1500

      Charging standard ISO 15118

      List price
      19,398.00 € tax incl.
      15,900.00 € tax excl.
      Discounted Price
      18,213.94 € tax incl.
      14,929.46 € tax excl.
      Shipping from 61.00 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      Reefilla
      DCFilleeEV

      Data sheet

      Frequency (Hz)
      50
      Battery's service capacity (KWh)
      22
      Product dimensions (mm)
      1040 x 610 x 400
      Remote panel
      LED + Connected App
      Weight (Kg)
      115
      Peak power
      40kw
      Continuous power [kW]
      35
      Discharge time [h]
      0,6 (100% load)
      Discharge time [h]
      4 (50% of the load)
      Nominal Battery Voltage [V].
      180
      Output voltage [V]
      500 (DC) 50 Hz
      Output current [A]
      100A
      Output socket
      Type 2 (DC) - CCS2
      Charging socket
      CEE 1P+N+PE (16-32 A)
      Type of magazine
      External
      Charging power [kW]
      3,5-7
      Charging time [h]
      3,1
      Connectivity
      LTE-MQTT
      Battery type
      Li-Ion NMC
      Temperature [°C]
      -10+40
      IP Protection
      IP31
      Guaranteed cycles (80%)
      1500
      Charging standards
      ISO 15118

      Specific References

      Reefilla DC Fillee EV Charging Mobile Storage System

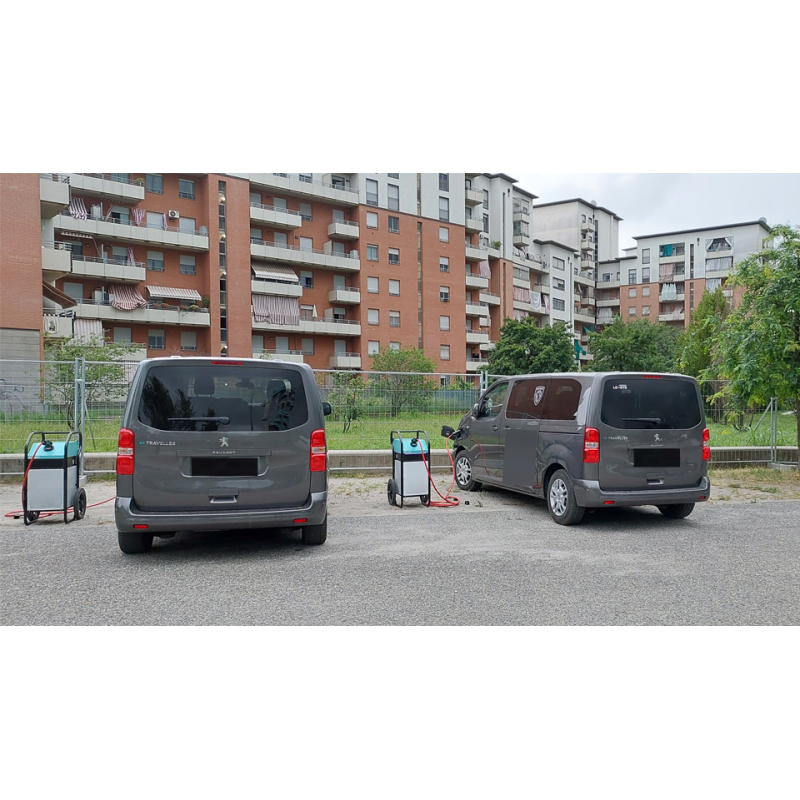

      The Reefilla DC Fillee EV Charging is a state-of-the-art mobile storage system designed specifically for charging electric vehicles in Fast Charge mode. Compact, robust and powerful, this innovative device offers a flexible and reliable solution for charging electric vehicles anywhere, anytime.


      Technical Features:

      DC Fast Charging: With 35kW continuous power and 40kW peak power delivered in direct current (DC), the Fillee EV Charging enables fast charging for CCS2-compliant electric vehicles.

      Customisable Autonomy: The 22Wh battery capacity, combined with the possibility of adjusting the charging power between 3.5kW and 7kW, allows you to adapt the system's autonomy to your specific needs.

      Robustness and Reliability: Built with high quality materials and IP31 protection, the Fillee EV Charging is weatherproof and ready to operate in any condition.

      Advanced Connectivity: Thanks to the LTE-MQTT module, you can monitor and control the system remotely via a dedicated app, wherever you are.

      Safety and Performance: The NMC Li-Ion batteries guarantee high energy density and long life, while the guaranteed life cycles of up to 1500 cycles at 80% ensure a long-term investment.Charging Standard: Compliant with ISO 15118 for optimal compatibility with the latest generation of electric vehicles.


      Technical characteristics:

      Continuous power[kW] 35

      Peak power 40 kw

      Battery capacity (kWh) 22

      Discharge time [h] 0.6 (100% load)

      Discharge time [h] 1.2 (50% load)

      Nominal Battery Voltage [V] 180

      Output voltage [V] 500 (DC) 50 Hz

      Frequency (Hz) 50

      Output current [A] 100A

      Output socket Type 2 (DC) - CCS2

      Charging socket CEE 1P+N+PE (16-32 A)

      Charger type External

      Charging power [kW] 3.5-7

      Charging time [h] 3.1

      LTE-MQTT connectivity

      LED control panel + Connected App

      Battery type Li-Ion NMC

      Product dimensions (mm) 1040 x 610 x 400

      Weight (kg) 115

      Temperature [°C] -10+40

      IP protection IP31

      Guaranteed cycles (80%) 1500

      Charging standard ISO 15118


      If you are looking for a product with similar characteristics CLICK HERE.


      Images and technical data are purely indicative.


      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
