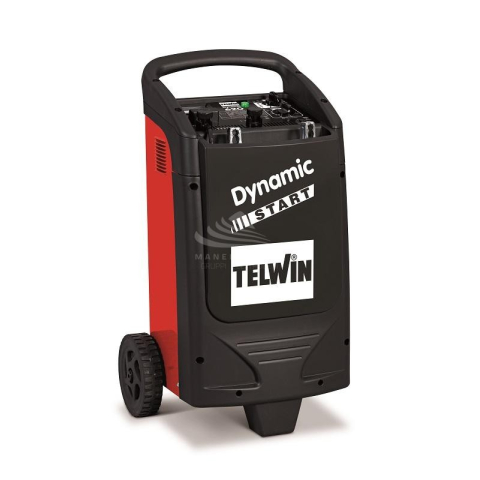

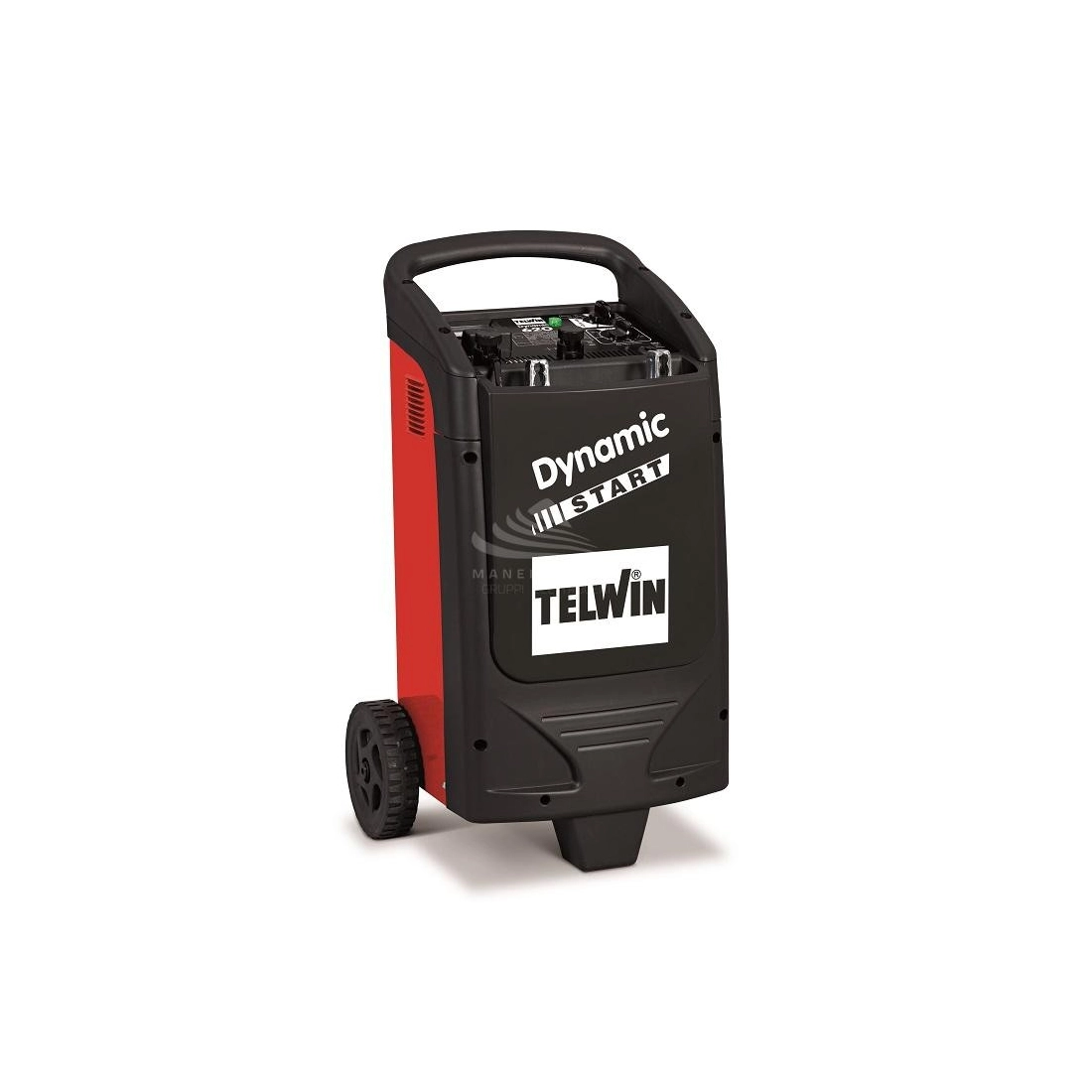

TELWIN DYNAMIC 620 START 230V 12-24V

TELWIN DYNAMIC 620 START 230V 12-24V
TELWIN DYNAMIC 620 START 230V 12-24V
829384

Phase Type: Single-phase
Mains voltage Single-phase: 230 V
Frequency: 50 / 60 Hz
Charging power: 2 KW
Starting power: 10 KW
Charging voltage: 12 / 24 V
Effective charging current: 90 A
Charging current EN60335-2-29: 70 A
Current approx. 1v/c EN60335-2-29: 360 A
Maximum starting current: 570 A
Nom.ref.min. capacity: 20 Ah
Max. nominal ref. capacity: 1550 Ah
Adjustment positions: 4
Length: 36.5 cm
Width: 46 cm
Height: 75.5 cm
Weight: 24 Kg

Download Scheda tecnica DYNAMIC 620 Download Technical data DYNAMIC 620

Phase
Single phase
Frequency (Hz)
50 / 60
Voltage (V)
230
Power (W)
10000
Effective current (A)
75
Adjustment positions
4
Charging voltage (V)
12 / 24
Length (mm)
365
Width (mm)
460
Height (mm)
755
Overload protectors
Yes
Weight (Kg)
0.4
EAN13
8004897732862
Brand

DYNAMIC 520 START 230V 12-24V

cod. 829384

Battery charger and starter for charging free electrolyte batteries (WET) with 12/24V voltage and starting all kinds of cars, vans and light trucks.
Features:
- choice of normal charge, quick charge (BOOST), quick start
- timer for quick charge
- display of charging and starting current
- protection against overloads and polarity reversal.


Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

€472.13 €472.13
