TELECO TELAIR ACTIVSAT 53SQ Satellite antenna portable square automatic LNB single

  • On sale!
TELECO TELAIR ACTIVSAT 53SQ Satellite antenna portable square automatic LNB single
search
  • TELECO TELAIR ACTIVSAT 53SQ Satellite antenna portable square automatic LNB single
  • TELECO TELAIR ACTIVSAT 53SQ Satellite antenna portable square automatic LNB single
TELAIR
18320
New product

Square flat antenna 53x53 cm.

Extremely accurate indoor unit design, small size and equipped with:

16 stored satellites
High definition blue OLED graphic display
SAT button / Quick Search button / Parking button
Integrated Bluetooth enabled to control ACTIVSAT directly from your smartphone
Very intense acoustic alarm (91 dB), with ON-OFF switch
Additional output for connecting either a very powerful external alarm siren or an external light
Power switch ON-OFF
Instant software update via Bluetooth via smartphone

Weight: 8,5 Kg

Technical features
Diameter (Ø)
53x53 cm
Length (mm)
500
Width (mm)
530
Height (mm)
530
Type of coupling head
Mobile tripod
Product type
Satellite Antenna
Antenna orientation
Automatic
Satellites Number
16
Weight (Kg)
10.5
Details

TELECO TELAIR ACTIVSAT 53SQ

TELECO TELAIR ACTIVSAT 53SQ is a fully automatic portable satellite antenna
With TELECO TELAIR ACTIVSAT 53SQ you can park your caravan under the shade of trees and easily place the automatic ACTIVSAT system on the adjacent lawn.

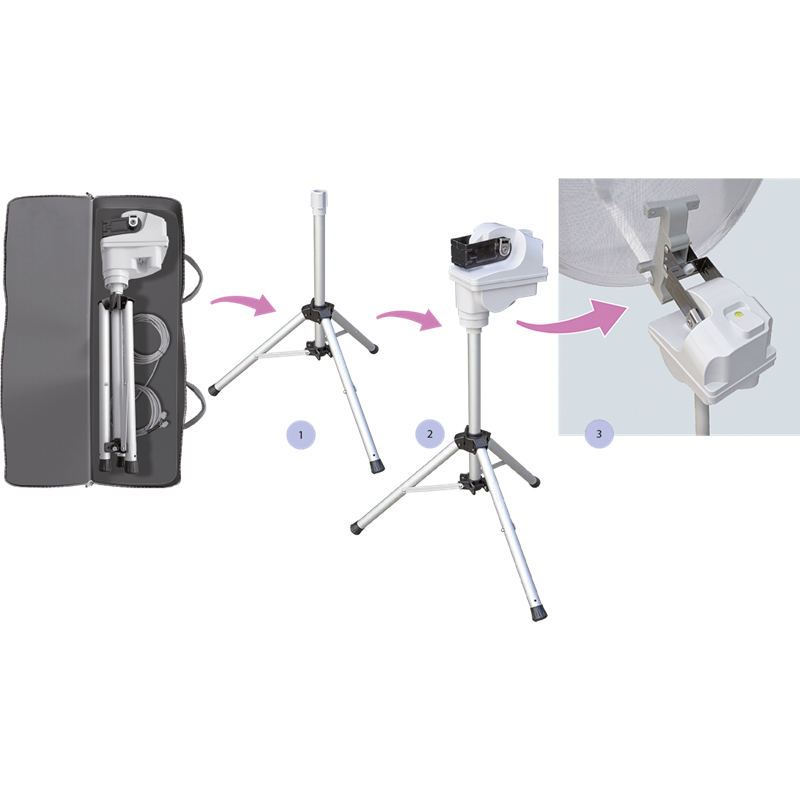

TELECO TELAIR ACTIVSAT 53SQ simply open the tripod, mount the motor unit on its top, insert the satellite antenna and connect the cable to the vehicle's external socket. The installation is really intuitive, quick and simple and does not require additional tools.

The antenna will point the satellite in a few seconds, you can adjust the satellite antenna either via Bluetooth using your smartphone or by simply pressing a button in the control unit inside the caravan.

The TELECO TELAIR ACTIVSAT 53SQ antenna gives you the possibility to enter the quick search mode, in this mode the dish limits the search to only 120°, and besides being much faster, it saves 70% of battery power. To use this convenient mode you need to point the dish in the SOUTH direction.

If you are not able to find the SOUTH direction, you can deactivate the Quick Search and the System will perform a full 360° Total Search.

Each time ACTIVSAT points at a satellite, this position is stored in the system memory so the next search will be much faster.

If someone cuts the cable, a very loud acoustic signal is emitted and an external light can be automatically switched on.
For safety reasons TELECO TELAIR ACTIVSAT 53SQ is closely connected to its internal control unit via the Serial Number. All Serial Numbers are registered in a TELECO Data Base and if someone steals or disconnects the outdoor unit without authorization, he will not be able to have any control unit as a spare part without providing the Serial Number of the outdoor unit and his Name. This makes TELECO TELAIR ACTIVSAT85T TWIN LNB completely unusable.

TECHNICAL CHARACTERISTICS TELECO TELAIR ACTIVSAT 53SQ satellite antenna

Squared flat antenna 53x53 cm
16 stored satellites
High definition blue OLED graphic display
SAT Button / Quick Search Button / Parking Button
Integrated Bluetooth to control the satellite antenna directly from smartphone
Very loud audible burglar alarm (91 dB), with ON-OFF switch
Additional output to connect either a very powerful external alarm siren or an external light
ON-OFF power switch
Instant software update via Bluetooth via smartphone
Weight: 10.5 Kg

Are you looking for a product with different characteristics? HERE you can find the entire TELECO range and other specialized brands.

Images and technical data are not binding and subject to change by the manufacturer.

Technical Sheet / Manuals
List price
1.582,34 € tax incl.
1.297,00 € tax excl.
Discounted Price
1.287,10 € tax incl.
1.055,00 € tax excl.
