SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR
      SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR
      SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR

      SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR

      FT4 MAR J609b c25.4

      Phase: Three phase
      Poles: 4
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): ----
      Three Phase Output (kVA): 7
      Constant Speed Alternator
      D-AVR
      Brushes
      Weight (Kg): 30
      Protection: IP23

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR

      PERSONAL DATA

      Ask a question
      Product: SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR
      Offer on letterhead
      Product: SINCRO FT4 MAR Three Phase Synchronous AC Alternator 7 kVA D-AVR
      SINCRO
      FT4 MAR J609b c25.4

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Poles
      4
      Three-phase power (KW)
      5.6
      Three-phase power (KVA)
      7
      Efficiency (%)
      77
      Protection degree
      IP23
      Dry weight (Kg)
      30
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Digital AVR

      Specific References

      New

      Three phase brushes alternator - DIGITAL AVR.

      - Self-regulated
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Short circuit current greater than 3 In

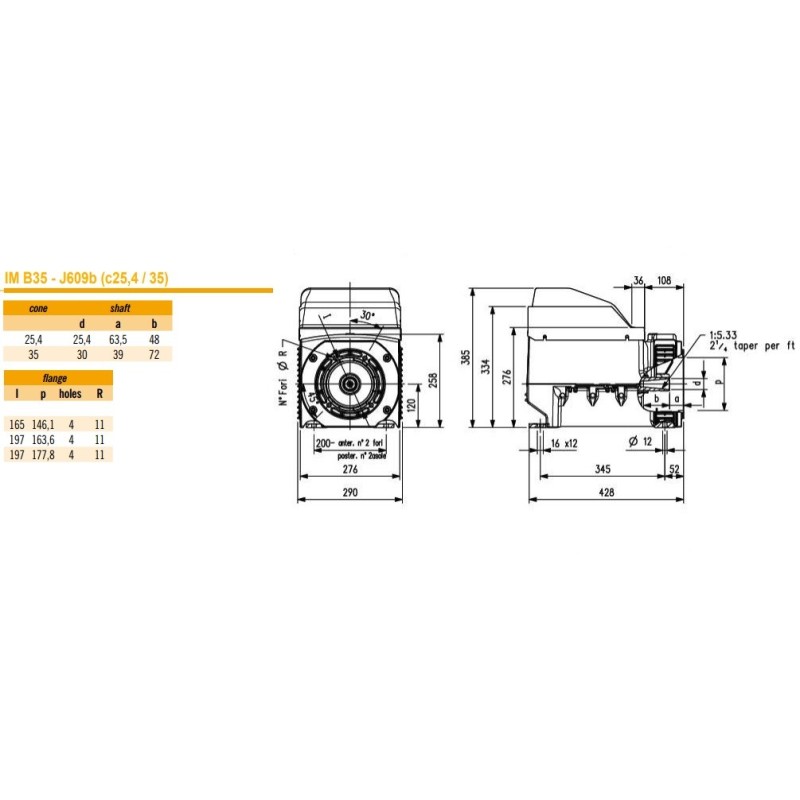

      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE
      - DIGITAL AVR

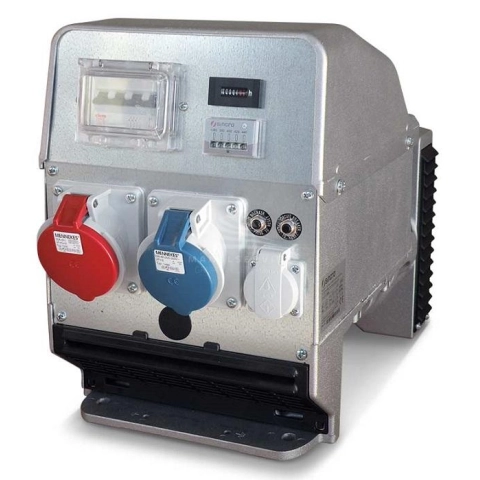

      The image is purely indicative.
