SINCRO GK4 LB Single Phase Synchronous AC Alternator 17.5 kVA Capacitor

SINCRO SINGLE PHASE ALTERNATOR GK4
search
  • SINCRO SINGLE PHASE ALTERNATOR GK4
  • SINCRO SINGLE PHASE ALTERNATOR GK4
SINCRO
GK4 LB J609b c25.4
New product

Phase: Single Phase
Poles: 4
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 17.5
Constant Speed Alternator
Capacitor
Brushless
Weight (Kg): 121
Protection: IP23

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
17.5
Single-phase power (KVA)
17.5
Efficiency (%)
85.1
Protection degree
IP23
Dry weight (Kg)
121
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Details

Single phase brushless alternator - Capacitor.

- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

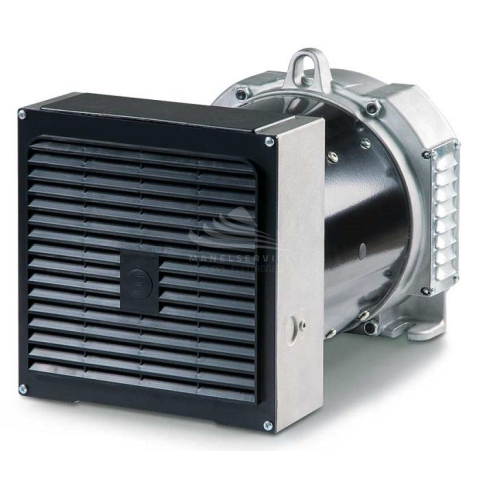

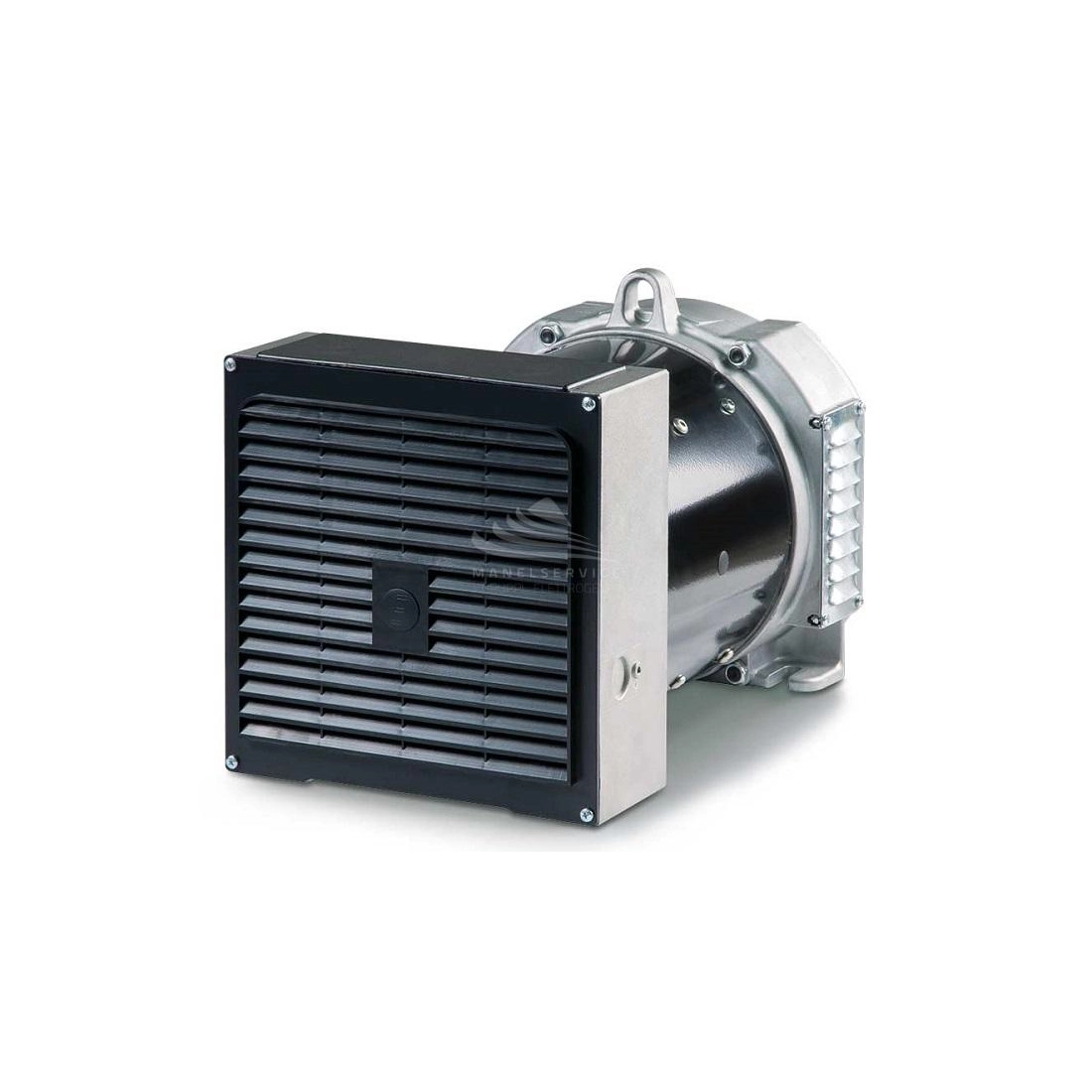

The image is purely indicative.

Technical Sheet / Manuals
Related Accessories
List price
2.843,82 € tax incl.
2.331,00 € tax excl.
Discounted Price
1.724,07 € tax incl.
1.413,17 € tax excl.
