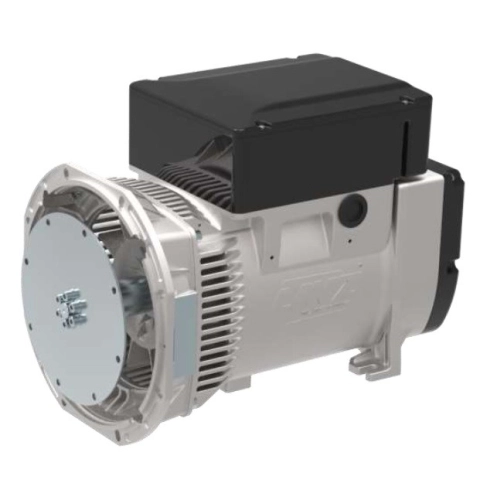

LINZ E1X13S A/4 Three-phase alternator 4 poles 6.5 kVA 50 Hz AVR
E1X13S A/4 50 Hz J609b
Rated power at 50 Hz (kVA): 6.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 2.6 at 50 Hz
Suppression standard R.F.F.I. EN55011
List price
tax incl.
tax excl.
Discounted Price
1,327.35 € tax incl.
1,087.99 € tax excl.
E1X13S A/4 50 Hz J609b
Data sheet
- Phase
- Three phase
- Continuous power three phase (KW)
- 5.2
- Continuous power three phase (KVA)
- 6.5
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1500
- Alternator
- Synchronous
- Poles
- 4
- Three-phase power (KVA)
- 6.5
- Protection degree
- IP21
- Motor insulation class
- H

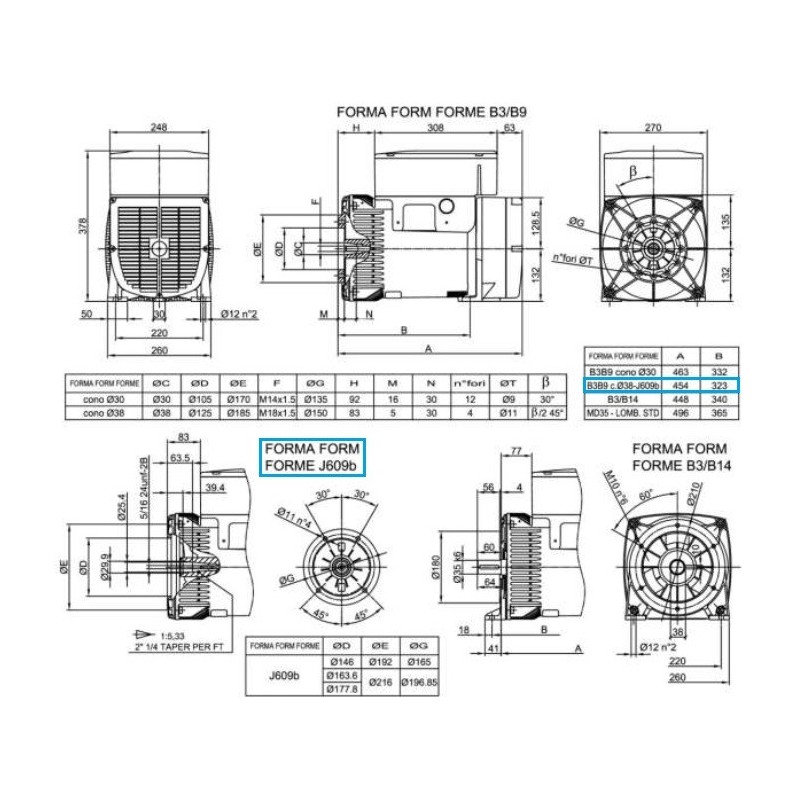

- Length (mm)
- 454
- Width (mm)
- 270
- Height (mm)
- 378
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 59.4
Specific References
New
E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).
CHARACTERISTICS
- Compact and mechnically resistant
- Minimum maintenance
- High efficiency
- Type: Three-phase alternators
- Poles: 4
- Phases: Three-phase
- Regulation: AVR
- Application: PORTABLE, TELECOMMUNICATION
