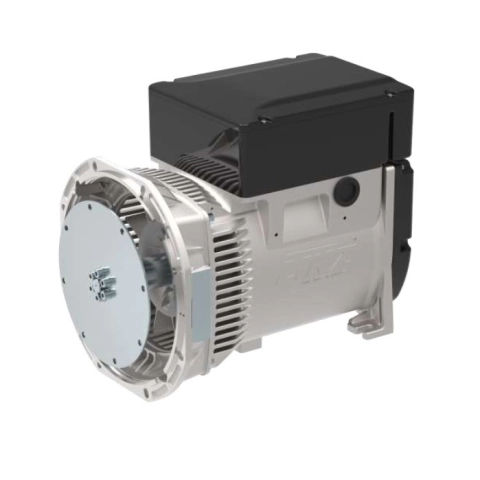

LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
      LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
      LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound

      LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound

      E1S13S A/4 50 Hz J609b

      Rated power at 50 Hz (kVA): 8
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: with brushes
      Type of regulation: Compound
      Insulation class: H
      Protection: IP21
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 5.4 at 50 Hz
      Suppression standard R.F.F.I. EN55011

      List price
      1,398.12 € tax incl.
      1,146.00 € tax excl.
      Discounted Price
      1,117.91 € tax incl.
      916.32 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote

      PERSONAL DATA

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      E1S13S A/4 50 Hz J609b

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KW)
      6.4
      Continuous power three phase (KVA)
      8
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Alternator
      Synchronous
      Poles
      4
      Three-phase power (KVA)
      8
      Protection degree
      IP21
      Motor insulation class
      H
      Length (mm)
      403
      Width (mm)
      270
      Height (mm)
      379
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound
      Weight (Kg)
      51

      Specific References

      New

      E1S13/4 series are three-phase 4 poles alternators with brushes and compound regulation.

      CHARACTERISTICS

      • Possibility to feed any type of load
      • Compact and easy to assemble
      • High starting capacity
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 4
      • Phases: Three-phase
      • Regulation: COMPOUND
      • Application: PORTABLE

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
