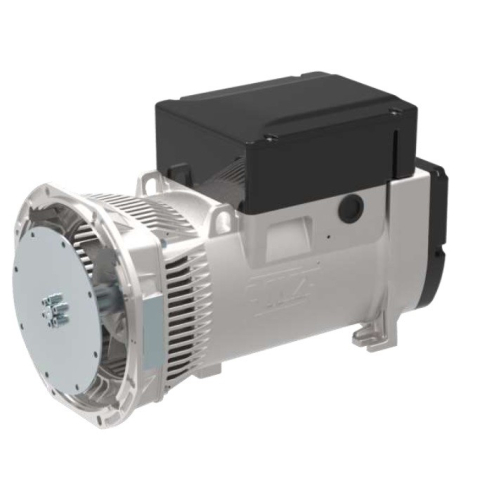

LINZ E1X13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz 60 Hz AVR

LINZ E1X13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz AVR
LINZ E1X13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz AVR
LINZ E1X13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz AVR
LINZ E1X13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz AVR
E1X13M D/2 50 Hz J609b

Rated power at 50 Hz (kVA): 16
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 8 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1X13M D/2

Phase
Three phase
Continuous power three phase (KW)
12.8
Continuous power three phase (KVA)
16
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Three-phase power (KVA)
16
Protection degree
IP21
Motor insulation class
H
Length (mm)
554
Width (mm)
270
Height (mm)
375
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
86
Brand

E1X/2 series are three-phase brushless 2 poles alternators with exciter and electronic regulation (AVR).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: AVR
  • Application: PORTABLE, TELECOMMUNICATION
    Product available in 50 Hz and 60 Hz versions

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€1,272.38 €1,272.38
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
