VELAIR i16 VSD SMART INVERTER

VELAIR i16 VSD SMART INVERTER Air Conditioner

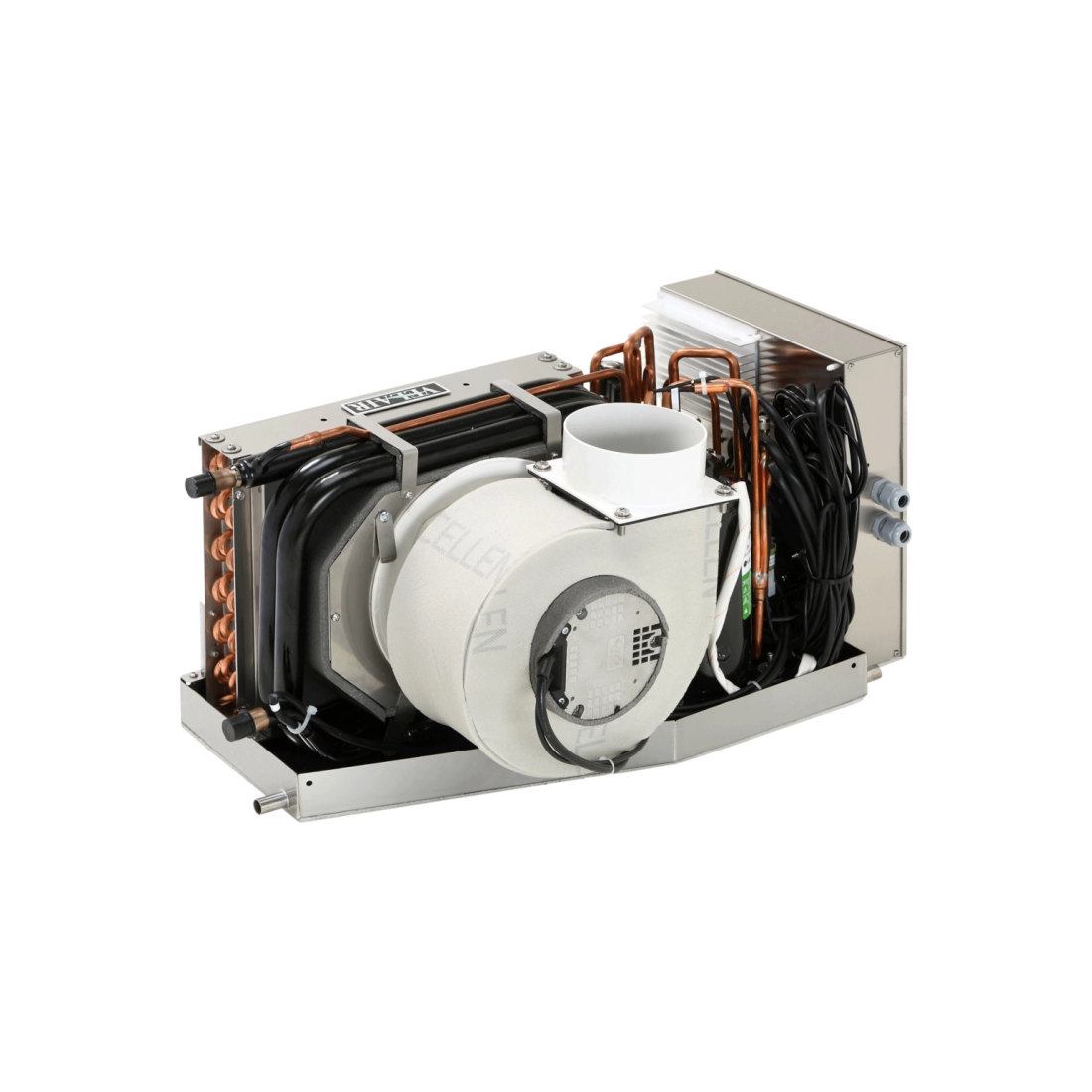

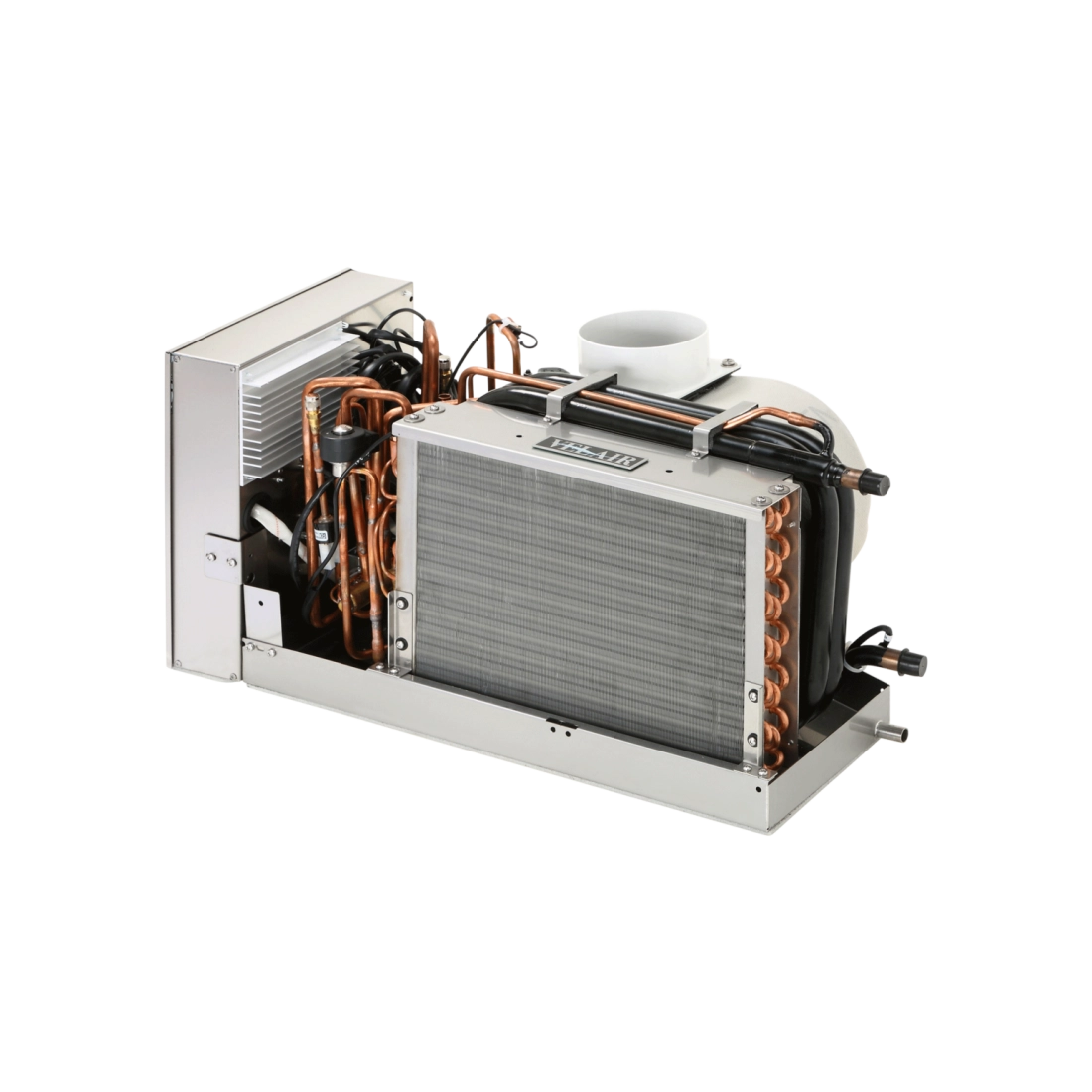

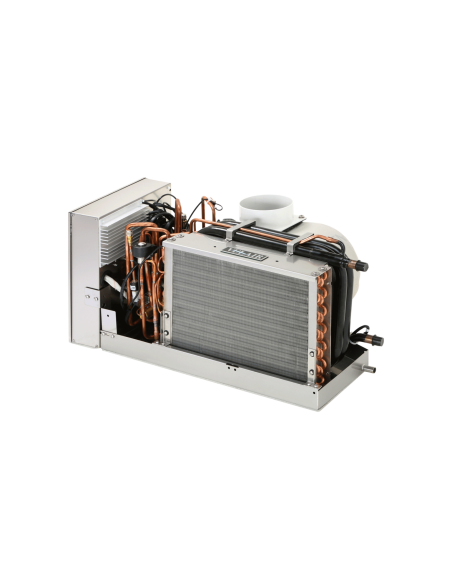

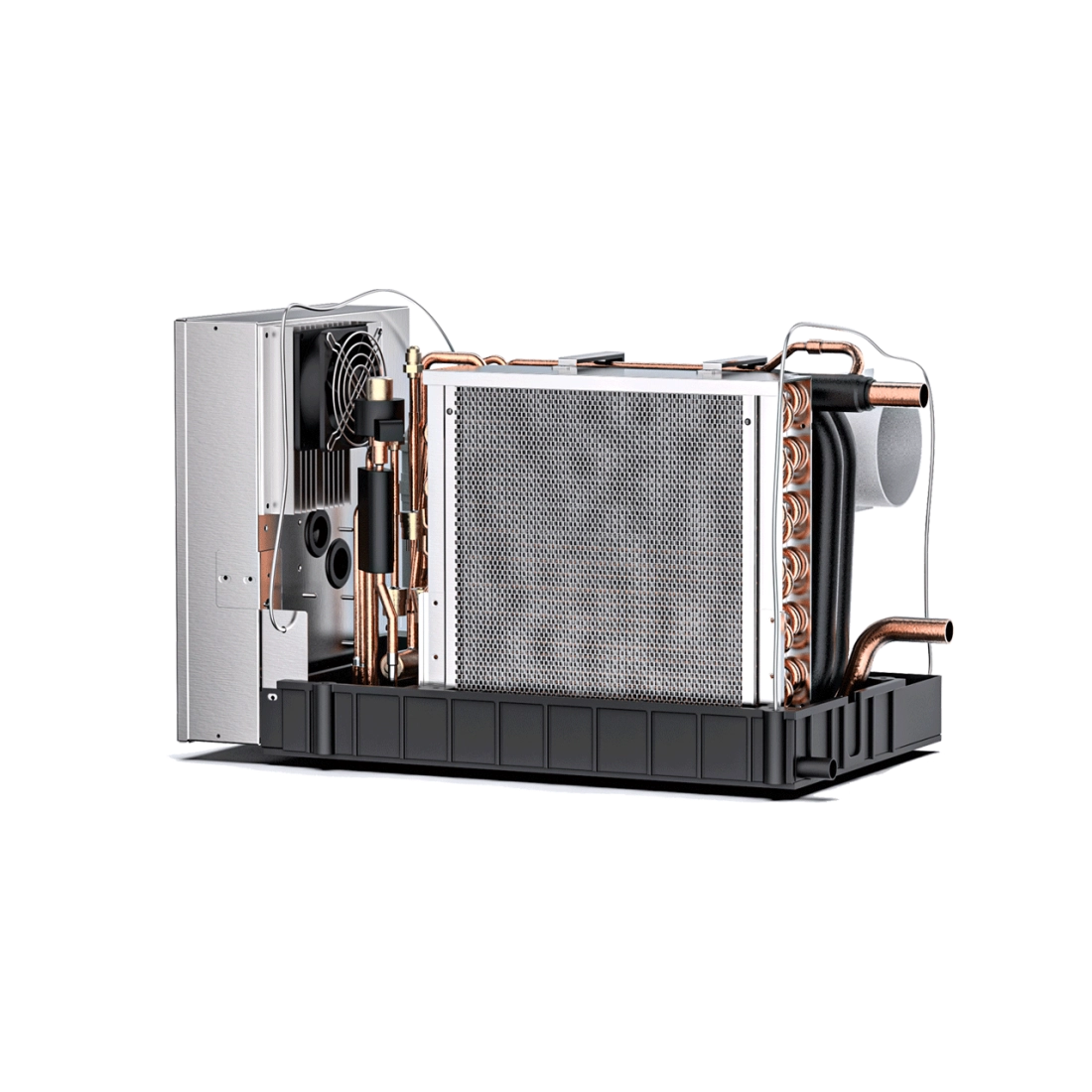

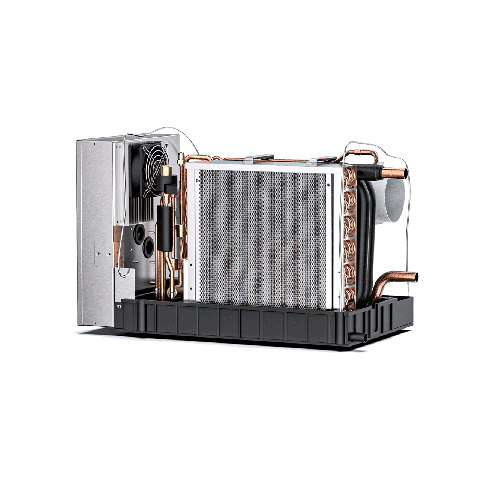

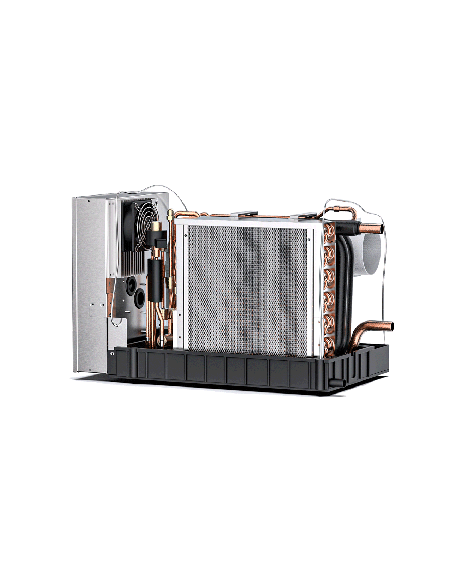

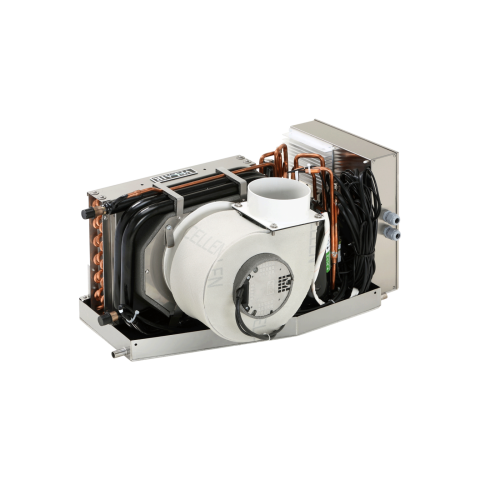

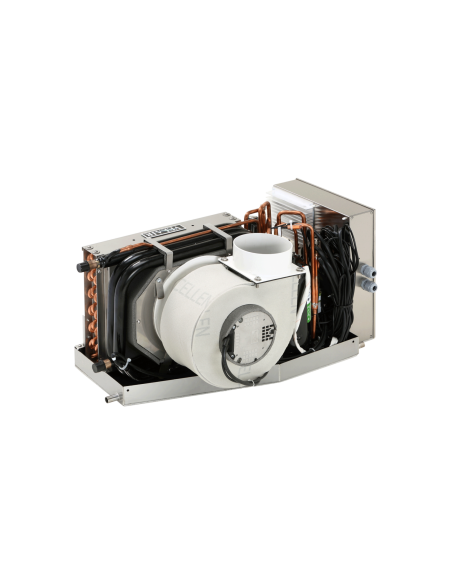

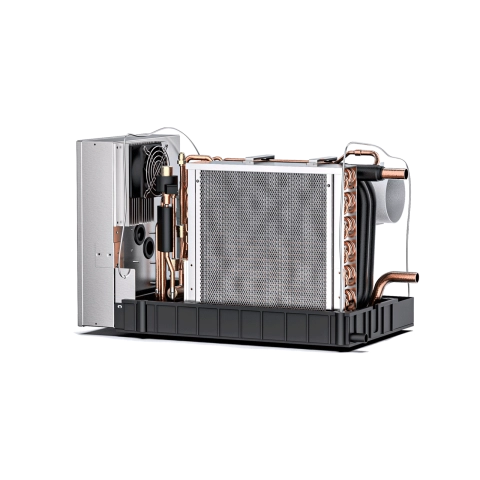

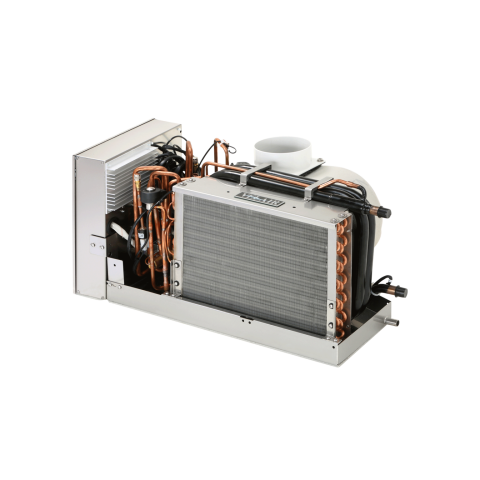

The Compact i16 VSD Smart marine air conditioner—a self-contained unit featuring inverter technology—integrates advanced technical solutions to ensure high energy efficiency, thermal comfort, and quiet operation.

Technical features of the Compact i16 VSD Smart
- Cooling and heating operation via heat pump cycle.

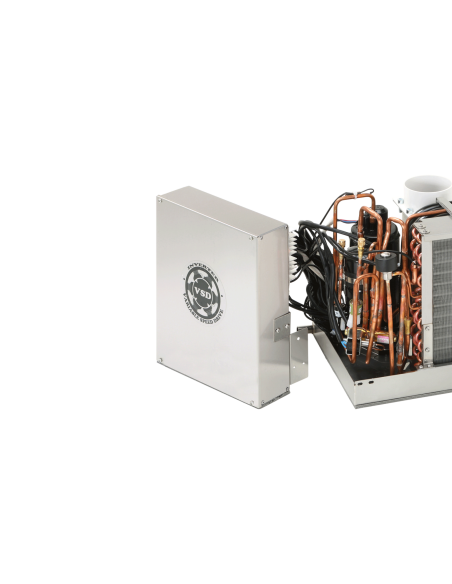

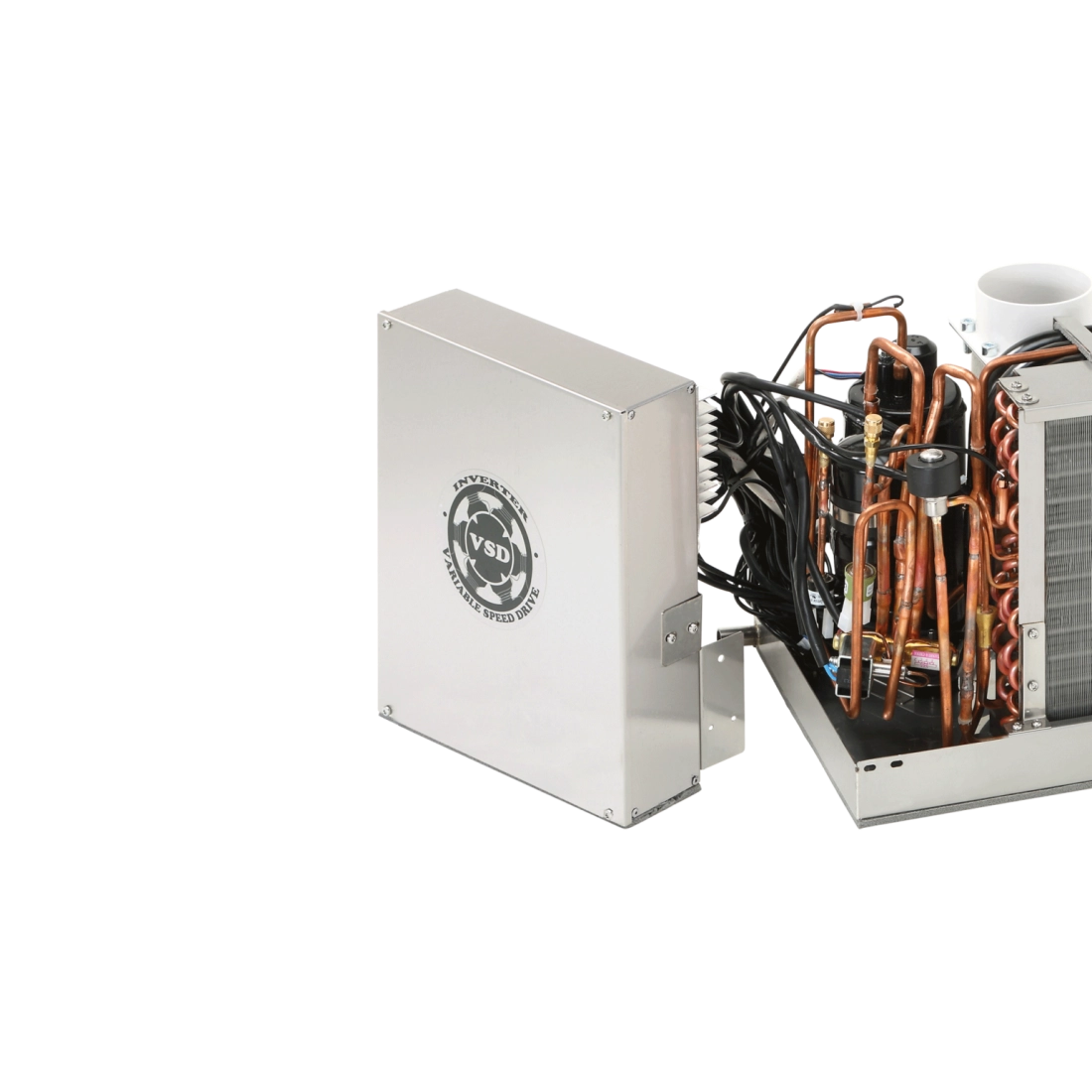

- Compressor with brushless DC motor and inverter for continuous regulation of rotation speed and output power (Variable Speed ​​Drive – VSD).
- Twin Rotary compressors, designed to ensure efficient and smooth operation.
- Fan with Constant Flow technology to ensure consistent airflow.
- Electronic expansion valve for precise regulation of the refrigeration circuit.
- R32 refrigerant.
- Temperature stability for constant thermal comfort.
- Extended component lifespan due to reduced operational stress.

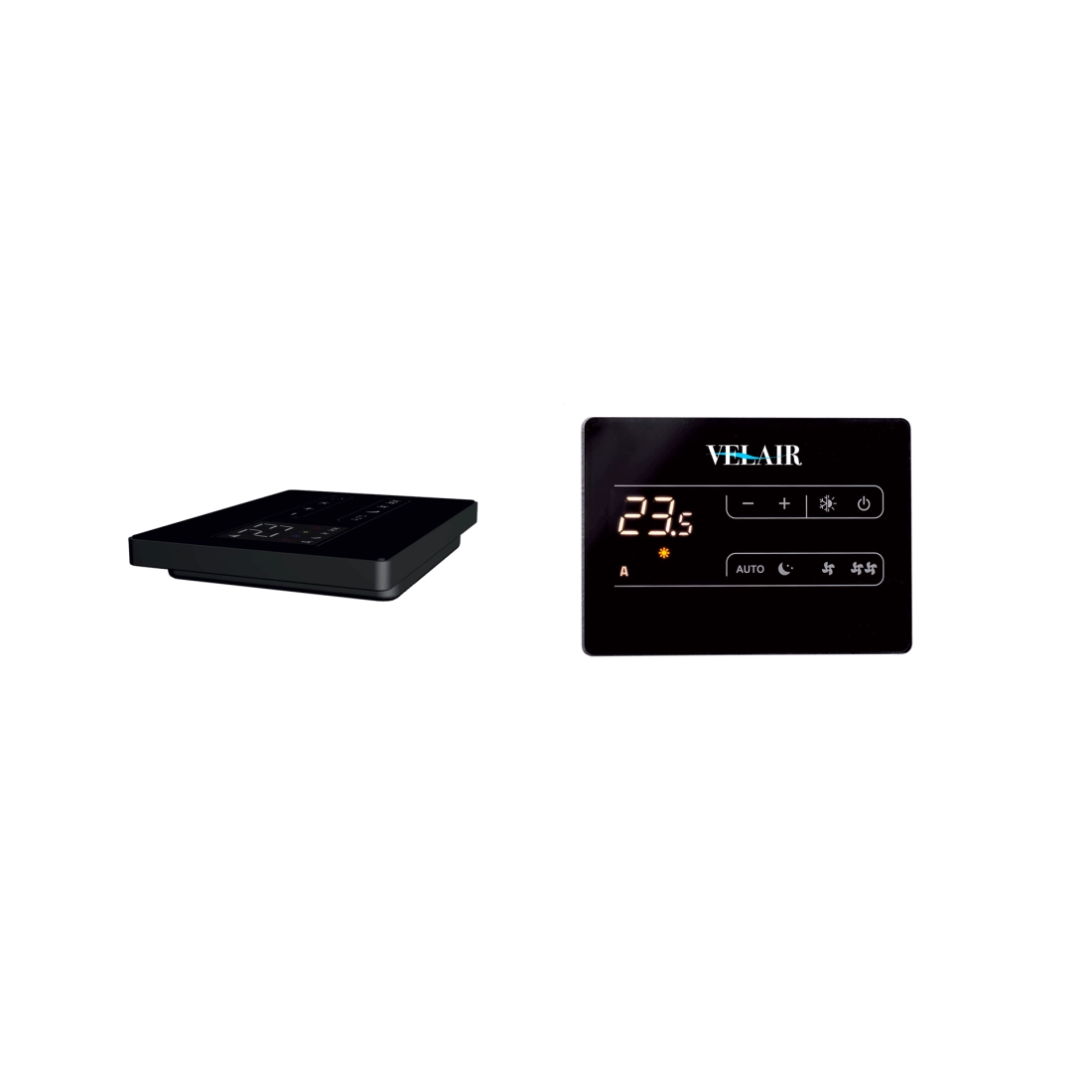

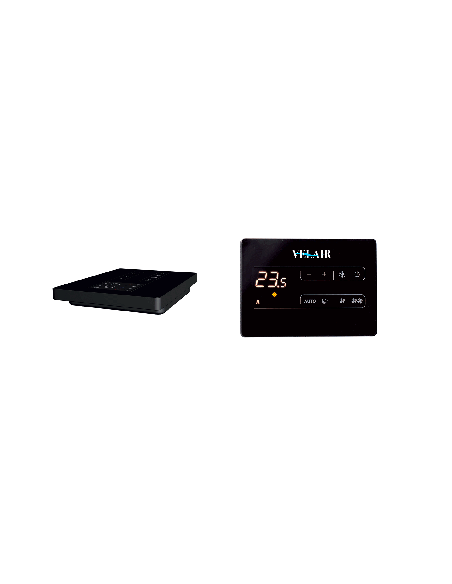

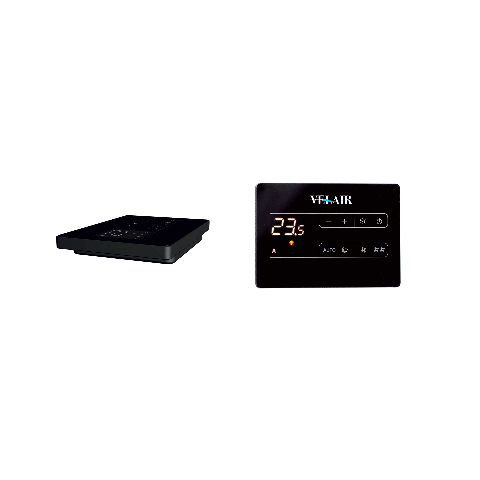

- Wall-mounted control panel.
- Remote control via Wi-Fi and dedicated app.
- Designed and manufactured in Italy.

Advantages of VSD inverter technology
Variable Speed ​​Drive technology allows the compressor's operation to be modulated based on actual environmental needs, offering numerous benefits:
- Elimination of start-up current spikes, thanks to electronic management of compressor speed.
- High energy efficiency, with a reduction in overall electricity consumption of up to 40%.
- Compatibility with lower-power generators, thanks to power draw modulation based on the required load.
- Extremely low compressor noise and vibration levels, for greater comfort. ...unit.
- Constant outlet air temperature for more uniform thermal comfort.
- Wi-Fi control, allowing management via smartphone using the dedicated app.
- Heat pump operation with a reversing refrigeration cycle to heat rooms during the winter season.

Intelligent compressor operation
The inverter system continuously adjusts the compressor's rotation speed based on the ambient temperature and the user-defined setpoint.
During the initial cooling phase, when the room is particularly hot, the compressor can operate at maximum power to quickly reach the desired temperature.
Once the setpoint is reached, the system progressively reduces the compressor speed and power output, thereby lowering electricity consumption. This ensures a stable temperature, providing the desired comfort with minimal energy consumption.
Thanks to inverter technology, the compressor operates at a rotational frequency between 20 and 100 Hz, dynamically adjusting its output to match operating conditions.

Regulatory compliance
VELAIR VSD compact inverter units comply with the electromagnetic compatibility (EMC) requirements set out in Directive 2004/108/EC.

If you are looking for another air conditioner like the Compact i16 VSD Smart then you can browse our catalogue reserved for marine air conditioners.


Images and technical data are not binding.
