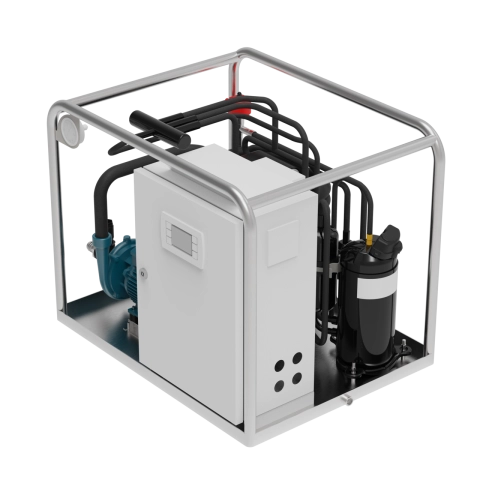

Dometic Condaria PCWM VAR 15001: Single Phase Chiller with Variable RPM 50/60Hz
The Dometic Condaria PCWM VAR 15001 is a powerful marine air conditioner designed to provide optimal comfort on board medium-sized vessels. With a rated cooling capacity of 12,000 kcal/h (48,000 BTU/h), this system can provide a cool and comfortable environment even on the hottest days.
Key features:
Flexibility: With its variable-speed compressor, the PCWM VAR 15001 adapts perfectly to different cooling needs, ensuring optimized energy consumption.
Versatility: Operating at both 50Hz and 60Hz, this air conditioner can be used in different regions of the world. (Hz version to be selected).
Ruggedness: Designed to withstand the most demanding marine conditions, the PCWM VAR 15001 is ideal for installation on boats.
Efficiency: Freshwater and saltwater circulation pumps, with variable powers depending on frequency, ensure optimum system efficiency.
Compact size: With dimensions of 700x500x500mm, the PCWM VAR 15001 easily fits into various spaces on board.

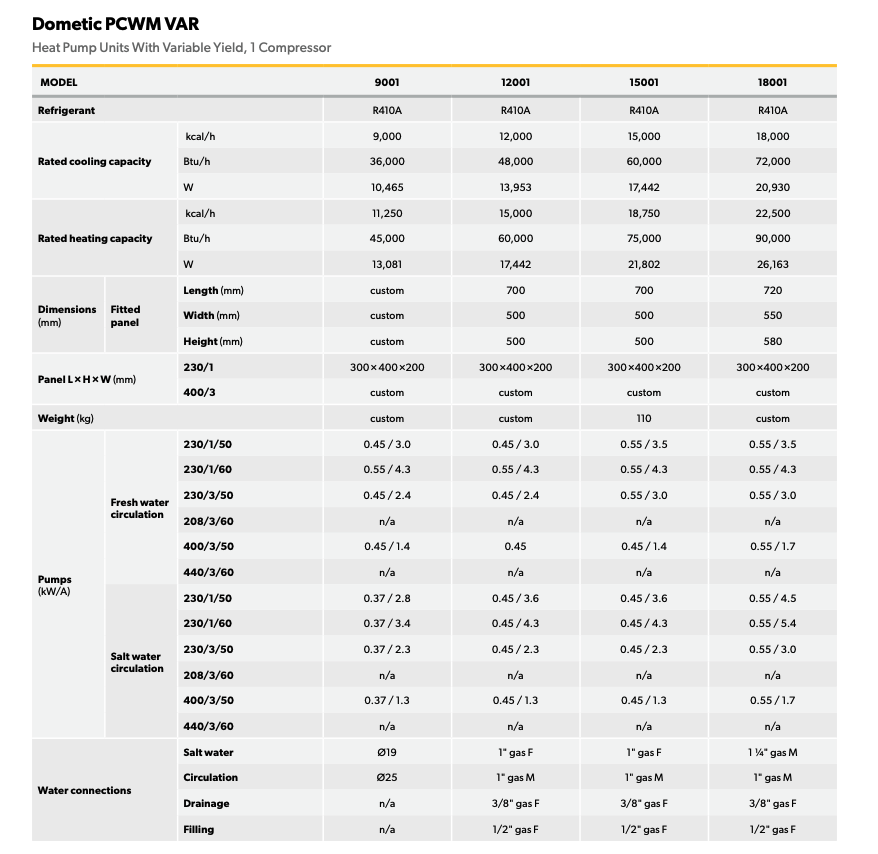

Technical Specifications Dometic Condaria PCWM VAR 15001:
Rated cooling capacity kcal/h 15,000
Rated capacity in cooling mode (BTU/h) 60,000
Cooling capacity (W) 17442
Rated heating capacity kcal/h 18,750
Rated capacity in heating mode (BTU/h) 75,000
Heating capacity (W) 21,802
Panel dimensions (mm) 300× 400×200
Pumps (kW/A) - Fresh water circulation 50Hz - 60Hz 0.55 / 3.5 0.55 / 4.3
Pumps (kW/A) - Salt water circulation 50Hz - 60Hz 0.45 / 3.6 - 0.45 / 4.3
Water connection Salt water 1” gas F
Water Connection Circulation 1” gas M
Refrigerant R410A
Length (mm) 700
Width (mm) 500
Height (mm) 500
Drainage 3/8” gas F
Filling 1/2” gas F
Se stai cercando un prodotto come Dometic Condaria PCWM VAR clicca qui troverai altri prodotti simili.
Immagini e dati tecnici sono puramente indicativi.
