Select product in 50Hz or 60Hz version
Rated cooling capacity kcal/h 15,000
Rated capacity in cooling mode (BTU/h) 60,000
Cooling capacity (W) 17442
Rated heating capacity kcal/h 18,750
Rated capacity in heating mode (BTU/h) 75,000
Heating capacity (W) 21,802
Panel dimensions (mm) 300× 400×200
Pumps (kW/A) - Fresh water circulation 50Hz - 60Hz 0.55 / 3.5 0.55 / 4.3
Pumps (kW/A) - Salt water circulation 50Hz - 60Hz 0.45 / 3.6 - 0.45 / 4.3
Water connection Salt water 1” gas F
Water Connection Circulation 1” gas M
Refrigerant R410A
Length (mm) 700
Width (mm) 500
Height (mm) 500
Drainage 3/8” gas F
Filling 1/2” gas F

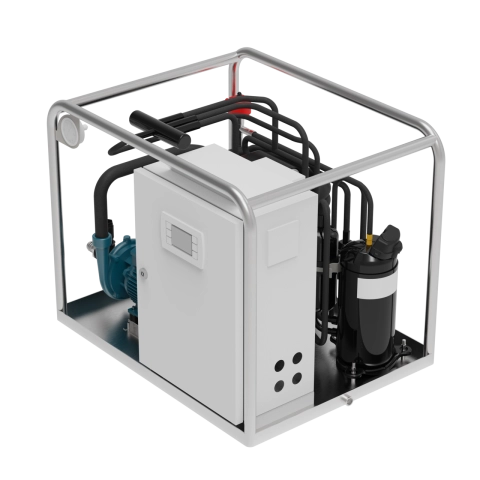

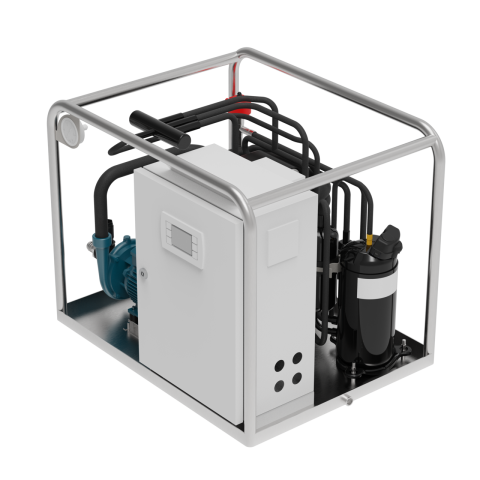

The Dometic Condaria PCWM VAR 15001 is a powerful marine air conditioner designed to provide optimal comfort on board medium-sized vessels. With a rated cooling capacity of 12,000 kcal/h (48,000 BTU/h), this system can provide a cool and comfortable environment even on the hottest days.
Key features:
Flexibility: With its variable-speed compressor, the PCWM VAR 15001 adapts perfectly to different cooling needs, ensuring optimized energy consumption.
Versatility: Operating at both 50Hz and 60Hz, this air conditioner can be used in different regions of the world. (Hz version to be selected).
Ruggedness: Designed to withstand the most demanding marine conditions, the PCWM VAR 15001 is ideal for installation on boats.
Efficiency: Freshwater and saltwater circulation pumps, with variable powers depending on frequency, ensure optimum system efficiency.
Compact size: With dimensions of 700x500x500mm, the PCWM VAR 15001 easily fits into various spaces on board.
Technical Specifications Dometic Condaria PCWM VAR 15001:
Rated cooling capacity kcal/h 15,000
Rated capacity in cooling mode (BTU/h) 60,000
Cooling capacity (W) 17442
Rated heating capacity kcal/h 18,750
Rated capacity in heating mode (BTU/h) 75,000
Heating capacity (W) 21,802
Panel dimensions (mm) 300× 400×200
Pumps (kW/A) - Fresh water circulation 50Hz - 60Hz 0.55 / 3.5 0.55 / 4.3
Pumps (kW/A) - Salt water circulation 50Hz - 60Hz 0.45 / 3.6 - 0.45 / 4.3
Water connection Salt water 1” gas F
Water Connection Circulation 1” gas M
Refrigerant R410A
Length (mm) 700
Width (mm) 500
Height (mm) 500
Drainage 3/8” gas F
Filling 1/2” gas F
Se stai cercando un prodotto come Dometic Condaria PCWM VAR clicca qui troverai altri prodotti simili.
Immagini e dati tecnici sono puramente indicativi.
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
