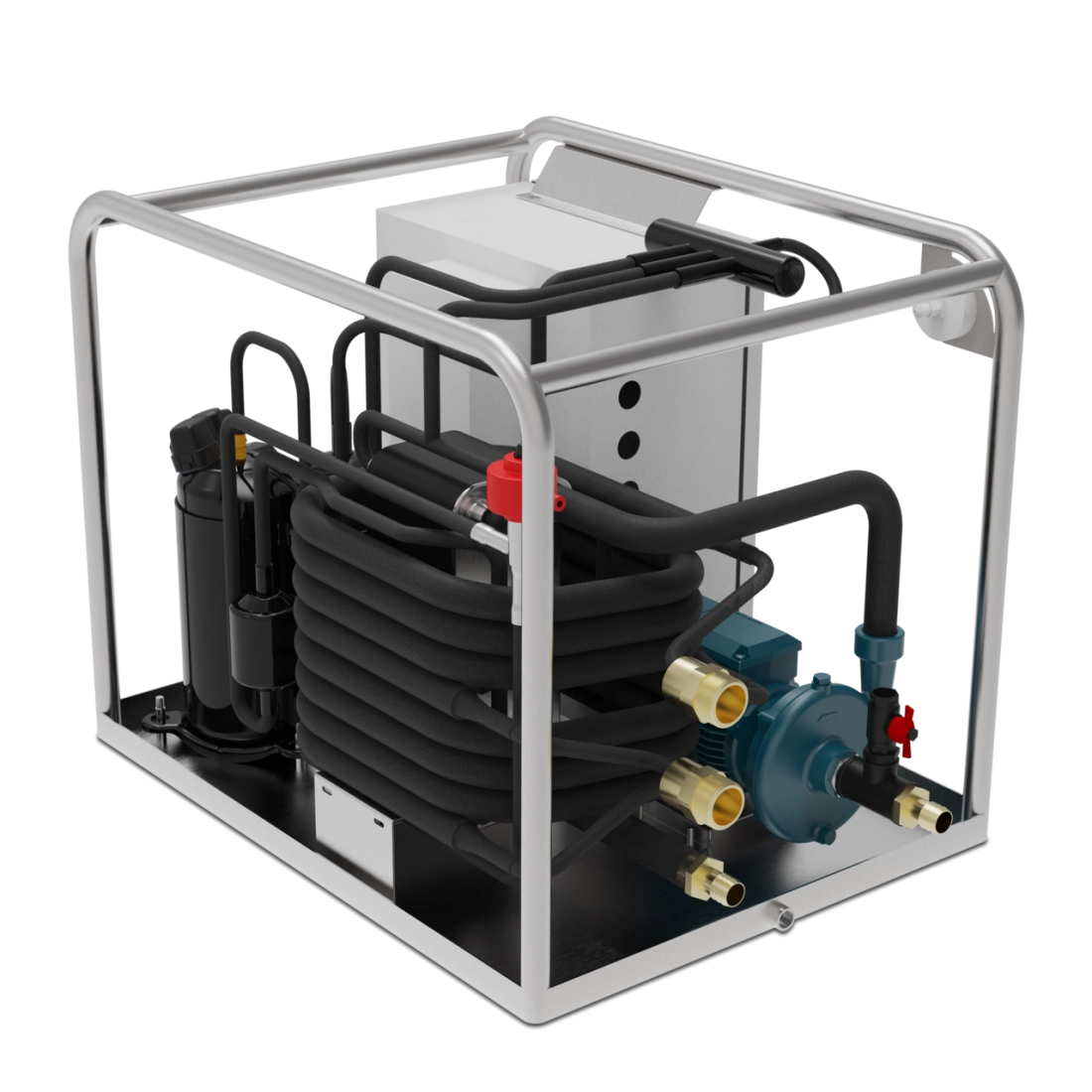

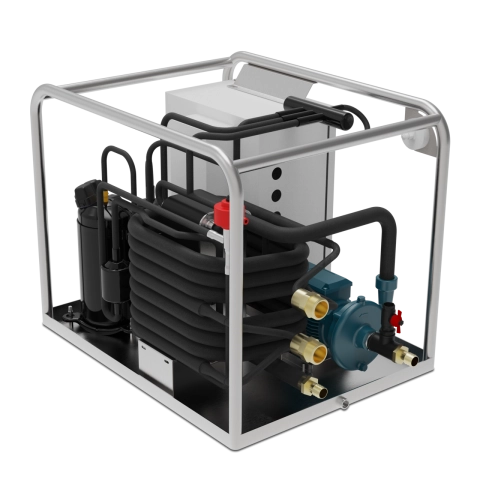

Dometic Condaria PCWM VAR 9001 Single Phase Chiller with Variable RPM 50/60Hz

Name: Dometic Condaria PCWM VAR 9001 Single Phase Chiller with Variable RPM 50/60Hz
Brand: DOMETIC
SKU: 9107510737 - 50Hz
Price: 18842.9 EUR
Availability: InStock

Reference 9107510737 - 50Hz

Select product in 50Hz or 60Hz version

Rated cooling capacity: 9,000 kcal/h

Rated capacity in cooling mode: 36,000 (BTU/h)

Cooling capacity: 10,465 (W)

Rated heating capacity: 11,250 kcal/h

Rated capacity in heating mode: 45,000 (BTU/h)

Heating capacity:13,081 (W)

Panel dimensions: 300× 400×200 mm

Pumps (kW/A) - Fresh water circulation 50Hz - 60Hz 0.45 / 3.0 - 0.55 / 4.3

Pumps (kW/A) - Salt water circulation 50Hz - 60Hz 0.37 / 2.8 - 0.37 / 3.4

Saltwater Water Connection: Ø19

Circulation Water Connection: Ø25
weight: 104 kg

List price

26,613.08 € tax incl.

21,814.00 € tax excl.

Discounted Price

18,842.90 € tax incl.

15,445.00 € tax excl.

Shipping from 61.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 9107510737 - 50Hz

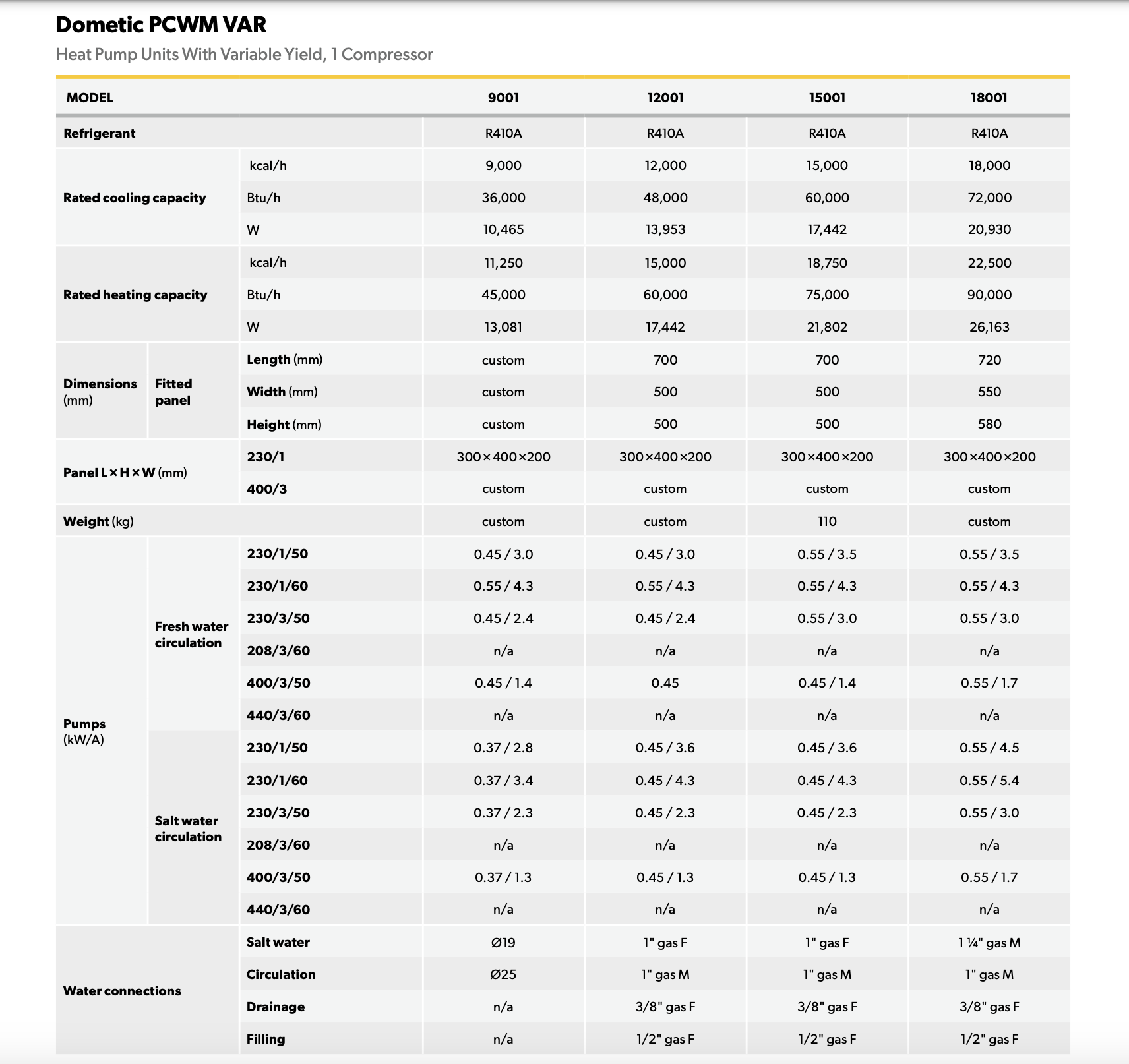

Data sheet

Weight (Kg): 104
Rated capacity in cooling mode (BTU/h): 36,000
Nominal capacity in heating mode (BTU/h): 45,000
Cooling capacity (W): 10,465
Heating capacity (W): 13,081
Rated cooling capacity kcal/h: 9,000
Rated heating capacity kcal/h: 11,250
dimensions panell: 300× 400×200
Pumps (kW/A) - Freshwater Circulation 50Hz - 60Hz: 0.45 / 3.0 - 0.55 / 4.3
Pompe - Circolazione acqua salata 50Hz - 60Hz: 0.37 / 2.8 - 0.37 / 3.4
Collegamento Idrico Acqua salata: Ø19
Collegamento Idrico Circolazione: Ø25

Specific References

Dometic Condaria PCWM VAR 9001: Single Phase Chiller with Variable RPM 50/60Hz

Dometic Condaria PCWM VAR 9001: Single-Phase Chiller with Variable RPM 50/60Hz - The Power of Customized Cooling

The Dometic Condaria PCWM VAR 9001: Single Phase Chiller with Variable RPM 50/60Hz is the ideal solution for those seeking a powerful, reliable and flexible marine air conditioning system. Designed to ensure maximum comfort on board, this chiller stands out for its ability to adapt to different environmental conditions and the specific needs of each user.

Why choose the Dometic Condaria PCWM VAR 9001?

Flexibility without compromise: Thanks to its variable-speed compressor, the Dometic Condaria PCWM VAR 9001: Single-phase Chiller with Variable RPM 50/60Hz adapts perfectly to different cooling needs, optimizing energy consumption and always ensuring the ideal temperature.

Global Versatility: Operating at both 50Hz and 60Hz, the Dometic Condaria PCWM VAR 9001: Single-Phase Chiller with Variable RPM can be installed on vessels worldwide, without any geographical limitation.

Ruggedness and Reliability: Built to last, the Dometic Condaria PCWM VAR 9001: Single Phase Chiller with Variable RPM can withstand the most demanding marine conditions, ensuring optimal performance over time.

Energy Efficiency: Fresh and salt water circulation pumps, with variable powers depending on frequency, ensure optimum system efficiency, reducing operating costs.

Dometic Condaria PCWM VAR 9001: Single Phase Chiller with Variable RPM 50/60Hz - The perfect choice for those who want a comfortable environment on board, without sacrificing performance and reliability.

Technical characteristics Dometic Condaria PCWM VAR:

Rated cooling capacity kcal/h 9,000

Rated capacity in cooling mode (BTU/h) 36,000

Cooling capacity (W) 10,465

Rated heating capacity kcal/h 11,250

Rated capacity in heating mode (BTU/h) 45,000

Heating capacity (W) 13,081

panel dimensions 300× 400×200
Pumps (kW/A) - Fresh water circulation 50Hz - 60Hz 0.45 / 3.0 - 0.55 / 4.3

Pumps (kW/A) - Salt water circulation 50Hz - 60Hz 0.37 / 2.8 - 0.37 / 3.4

Salt Water Water Connection Ø19

Circulation Water Connection Ø25
weight: 104 kg
