DOMETIC NAUTICAL AIR CONDITIONING MCS T12

DOMETIC NAUTICAL AIR CONDITIONING MCS T12
search
  • DOMETIC NAUTICAL AIR CONDITIONING MCS T12
DOMETIC
9600024865
New product

Input voltage: 230 Vac
Input frequency: 50 Hz
Starting current - max: 22.00 A
Min circuit protection: 8.00 A
Max circuit protection: 10. 00 A
Refrigerator type: R410A - Contains fluorinated greenhouse gases
GWP: 2088
Refrigerant quantity: 326.02 g
CO2 equivalent: 0.681 t
Cooling capacity (ISO 5151): 3516. 85 W
Power consumption - Cooling mode (ISO 5151): 1030 W
Min cooling current consumption: 4.30 A
Heating current consumption: 5. 30 A
Number of fan speeds: 6/Automatic
Operating temperature: 18°C to 30°C
Thermostat controls: Electronic thermostat
Depth: 315 mm
Height: 318 mm
Width: 519 mm
Net weight: 23.6 kg

Technical features
Frequency (Hz)
50
Voltage (V)
230
Refrigerating yield
12000 BTU / 3.5 KW
Inlet power, refrigerating (KW)
1.03
Length (mm)
315
Width (mm)
519
Height (mm)
318
Product type
Air conditioner
Coolant
R410A
Weight (Kg)
23.6
Details

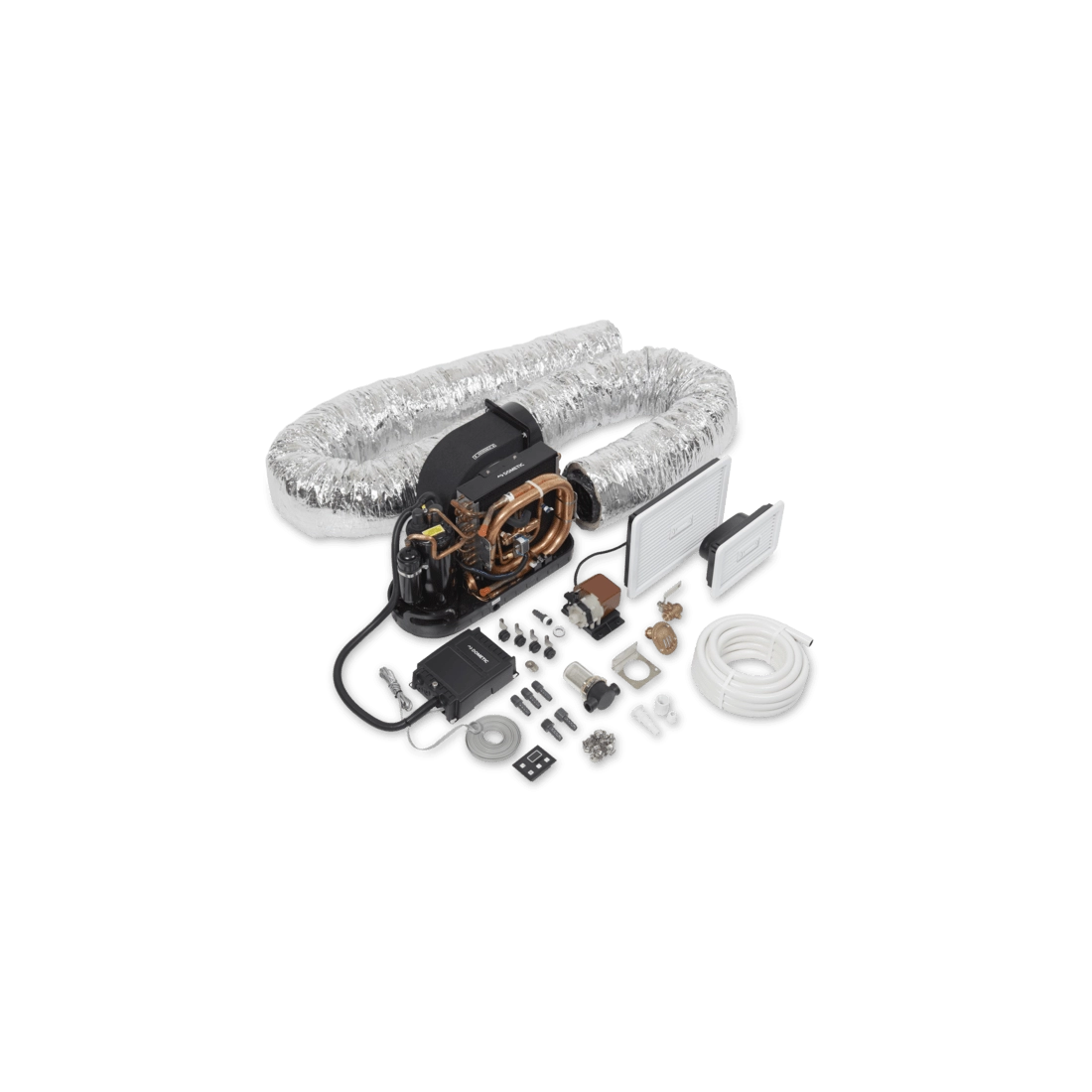

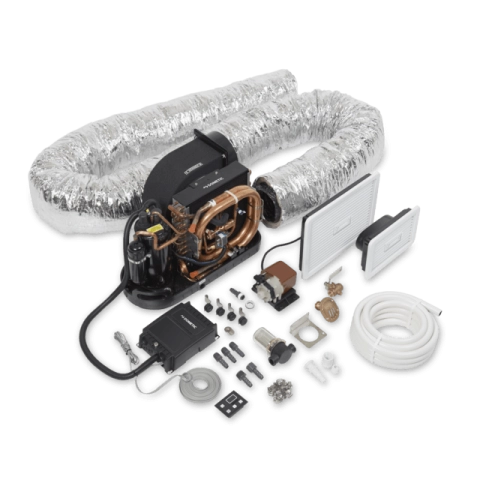

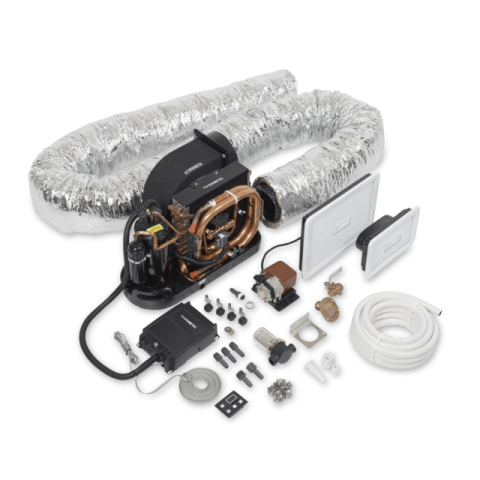

DOMETIC MCS T12 NAUTICAL AIR CONDITIONING

DOMETIC MCS T12 is a nautical air conditioner with heat pump and suitable for use on boats. Hot air, cold air and dehumidification in one elegant unit, small in size and easy to install. The DOMETIC MCS T12 makes the perfect climate aboard yachts and boats.

The new DOMETIC MCS T12 uses the award-winning DTU unit for quick, easy and versatile installation. Inclined fan for custom mounting and composite sump with quick connect couplings and high quality anti-vibration insulation for quiet operation - the DOMETIC MCS T12 air conditioner offers true OEM quality in one kit. All components and mounting materials are included. The three available capacities, all with R-410A refrigerant, allow the systems to operate efficiently, providing air conditioning comfort to cabins of various sizes or designs.

Through an easy-to-use control panel, this ultra-compact unit creates the ideal climate on board. Adjustable fan with six speeds or automatically set speed. Equipped with all fixings and fittings, the nautical air conditioner DOMETIC MCS T12 is quick to assemble and creates the optimal climate with maximum convenience.

TECHNICAL FEATURES DOMETIC MCS T12

Input voltage: 230 Vac
Input frequency: 50 Hz
Starting current - max: 22.00 A
Min circuit protection: 8.00 A
Max circuit protection: 10. 00 A
Refrigerator type: R410A - Contains fluorinated greenhouse gases
GWP: 2088
Refrigerant quantity: 326.02 g
CO2 equivalent: 0.681 t
Cooling capacity (ISO 5151): 3516. 85 W
Power consumption - Cooling mode (ISO 5151): 1030 W
Min cooling current consumption: 4.30 A
Heating current consumption: 5. 30 A
Number of fan speeds: 6/Automatic
Operating temperature: 18°C to 30°C
Thermostat controls: Electronic thermostat
Depth: 315 mm
Height: 318 mm
Width: 519 mm
Net weight: 23.6 kg

Looking for a product with different specifications? Here you can find the area dedicated to nautical air conditioners DOMETIC or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.

Technical Sheet / Manuals
List price
6.427,33 € tax incl.
5.268,30 € tax excl.
Discounted Price
5.537,58 € tax incl.
4.539,00 € tax excl.
