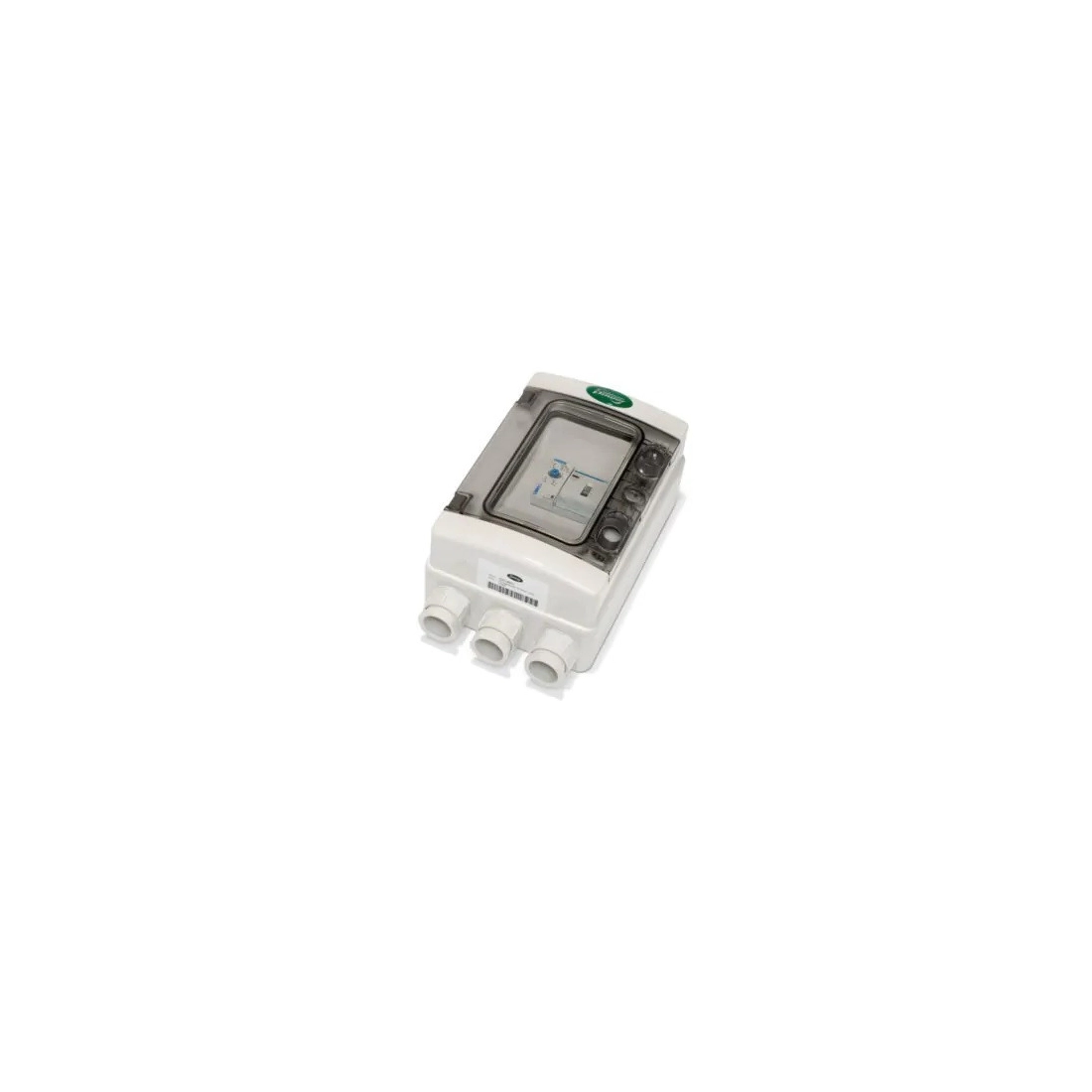

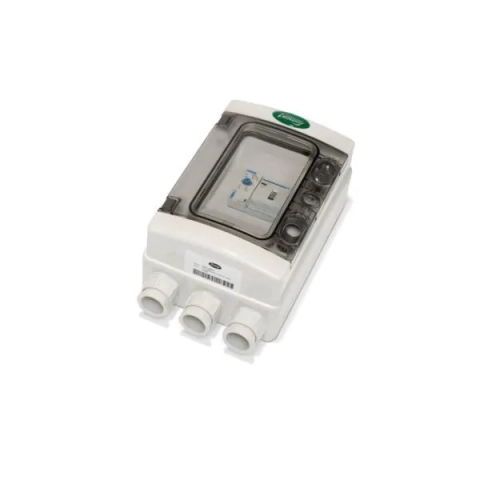

WhisperSwitch AC 6kW 230V - 1 phase

WhisperSwitch AC 6kW 230V - 1 phase

The traditional WhisperSwitch systems regulate the power distribution between energy sources fully automatically.
AC and generator / inverter IN, 230/120 V onboard groups OUT, everything in one cabinet.
The connected devices make use of the sources (maximum two) which are available at the time.

Technical data WhisperSwitch AC 6kW 230V - 1 phase:
Weight: 1 Kg
Dimensions (h x w x d ): 240x140x100 mm
Nominal input voltage: 230 V (50/60 Hz)
Input voltage range: 200-250 V
No. of AC inputs: 2 x (Shore/ Generator)
No. of AC outputs: 1
Nominal output current generator: 26 A
Nominal input current shore power: 26 A
Nominal output current inverter: 25 A
Earth leakage switch: Not integrated
Input generator monitoring: Continuous voltage and frequency monitoring
Delay generator input: 0-10 sec (adjustable)
Nominal output current: 25 A
Automatic fuses: Not integrated
Energy consumption (AC, all inputs): 27W
Power consumption (inverter capacity only): < 1W
Switching time: Switch on 12-22 ms / switch off 4-19 ms
Temperature range (specified): -5°C to 60°C / 23 to 140°F
Temperature range (ambient): -25°C to 70°C / -13 to 158°F
Temperature range (not working): -60°C to 80°C / -76 to 176°F
Relative humidity: max. 95%, non-condensing
Frequency monitoring: Yes
Cable diameter: 0,5 - 10 mm2 / AWG 20-7
International Protection rating: IP23
