Length x width x height: 350 x 167 x 180 mm (13.8" x 6.6" x 7.1" inch)
Weight ± 10%: 24.0 kg (52.9 lb.)
Nominal Capacity: 80 Ah
C10* or C20: C10
Nominal Voltage: 12.0 VDC
Terminal Type: M6 stainless steel
Number of Cells: 6
CHARGING/DISCHARGING PARAMETERS
Constant Charging Voltage (UI, float): 13.60 .. 13.80 VDC at 25°C
Cyclic Charging Voltage (IUU, absorption): 14.25 .. 14.60 VDC at 25°C
Maximum Recommended Charging Current (possible higher): 40-50% of nominal capacity
Temperature Coefficient: -4mv/cell/°C
Discharge Voltage:
1.75 VDC @ (A) ? 0.2°C
1.70 VDC @ 0.2°C (A) ? 1.0°C
1.65 VDC @ (A) ? 1.0°C
Complete Discharge (100% DOD): 1.65 VDC @ (A) ? 1.0°C

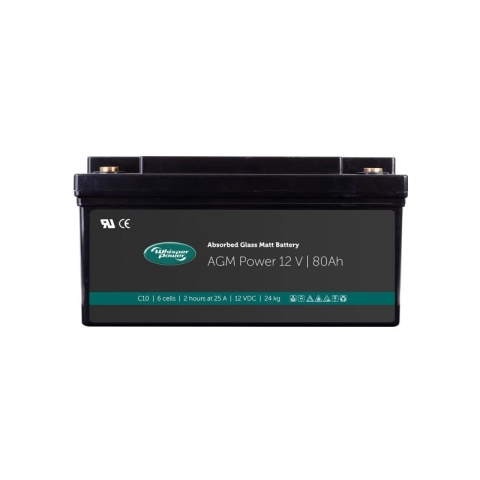

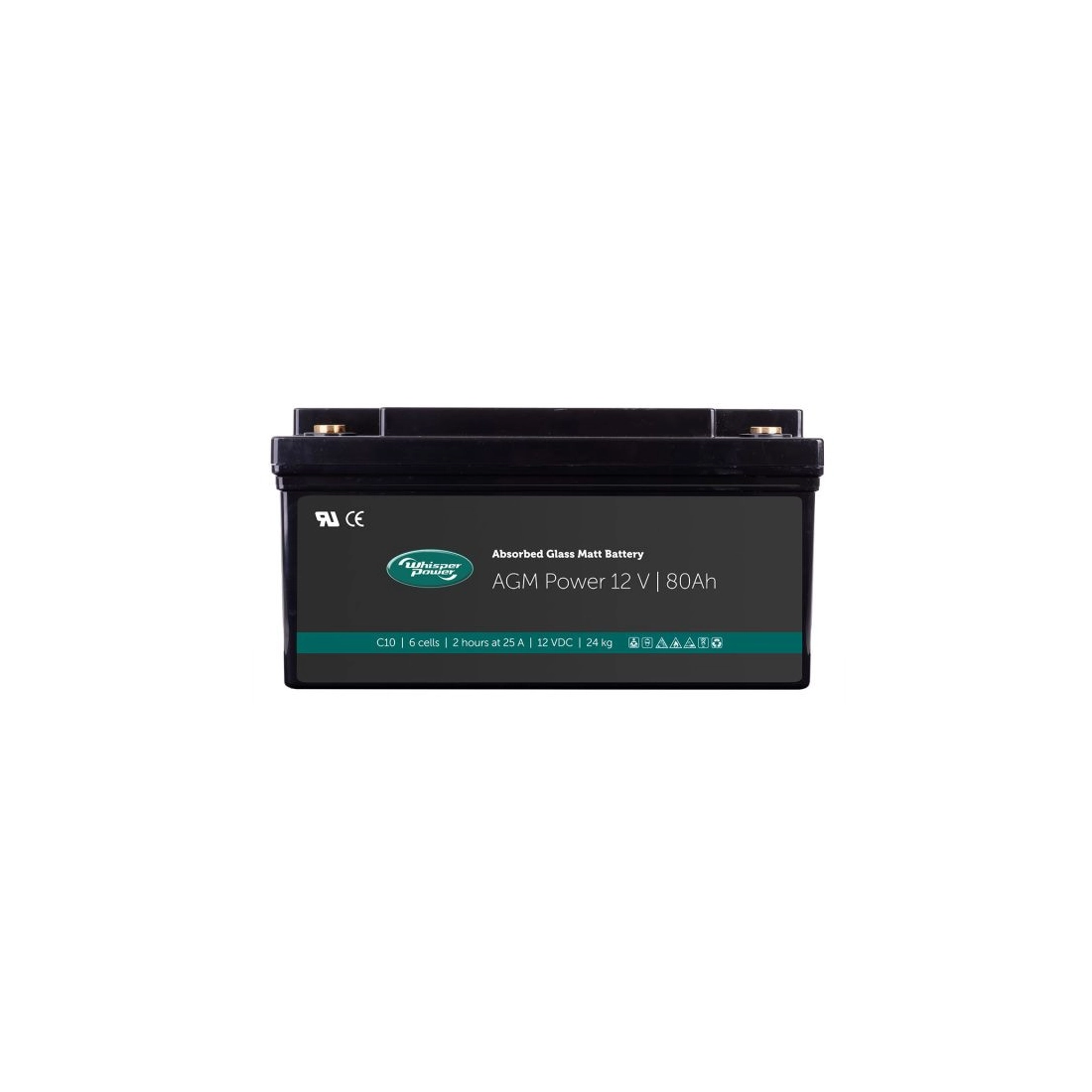

AGM-Power Batteries 12V 80Ah Absorbed Glass Matt
Technical Specifications:
Length x width x height: 350 x 167 x 180 mm (13.8" x 6.6" x 7.1" inch)
Weight ± 10%: 24.0 kg (52.9 lb.)
Nominal Capacity: 80 Ah
C10* or C20: C10
Nominal Voltage: 12.0 VDC
Terminal Type: M6 stainless steel
Number of Cells: 6
CHARGING/DISCHARGING PARAMETERS
Constant Charging Voltage (UI, float): 13.60 .. 13.80 VDC at 25°C
Cyclic Charging Voltage (IUU, absorption): 14.25 .. 14.60 VDC at 25°C
Maximum Recommended Charging Current (possible higher): 40-50% of nominal capacity
Temperature Coefficient: -4mv/cell/°C
Discharge Voltage:
1.75 VDC @ (A) ? 0.2°C
1.70 VDC @ 0.2°C (A) ? 1.0°C
1.65 VDC @ (A) ? 1.0°C
Complete Discharge (100% DOD): 1.65 VDC @ (A) ? 1.0°C
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
