MOSA PAC 200-MTE REMOTE SWITCHING PANEL

MOSA QUADRO DI TELECOMMUTAZIONE PAC 200-MTE

Reference MCJ0K00E10000

Maximum power 400 V three-phase: 554 KVA
Maximum power 230 V three-phase: 318 KVA
Rated thermal current Ith (<= 35°C): 800 A
Operating frequency: 50 or 60 Hz
Short-time current Icw (1 sec): 26.5 KA
Protection degree: IP54
Length: 1000 mm
Width: 600 mm
Height: 450 mm
Weight: 92 Kg
Panel fixing: Floor-mounted

Download

Product Details
Description

Brand

Features:
- Four-pole motorized switching
- Power connections with nickel-plated copper bars
- Ample space for connections
- Wall or floor mounting
- Manual mains or generator connection selector
- Complies with CE directives

Standard equipment
- IP55 epoxy powder coated metal case
- Interlocked four-pole motorized switching
- Protection fuses
- Auxiliary connection terminal block
- Manual mains or generator connection selector
- Mains or generator connection indicator lights
- Emergency manual connection handle
- Fixing brackets for wall-mounted panels

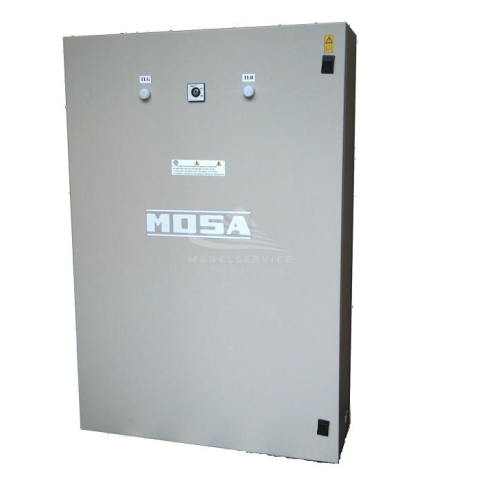

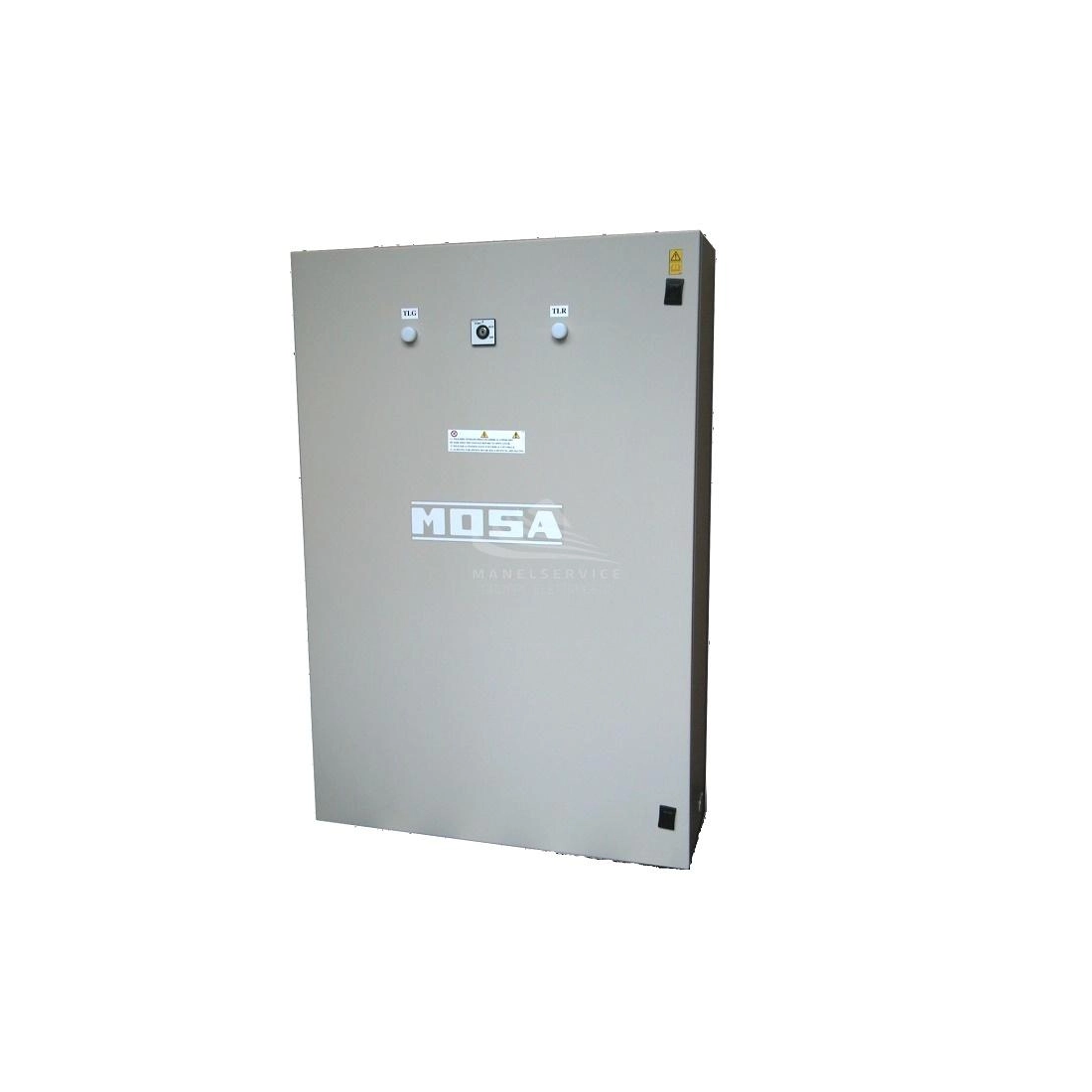

The image is purely indicative.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
