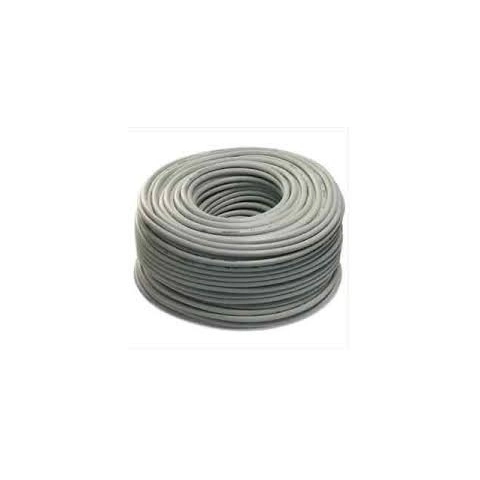

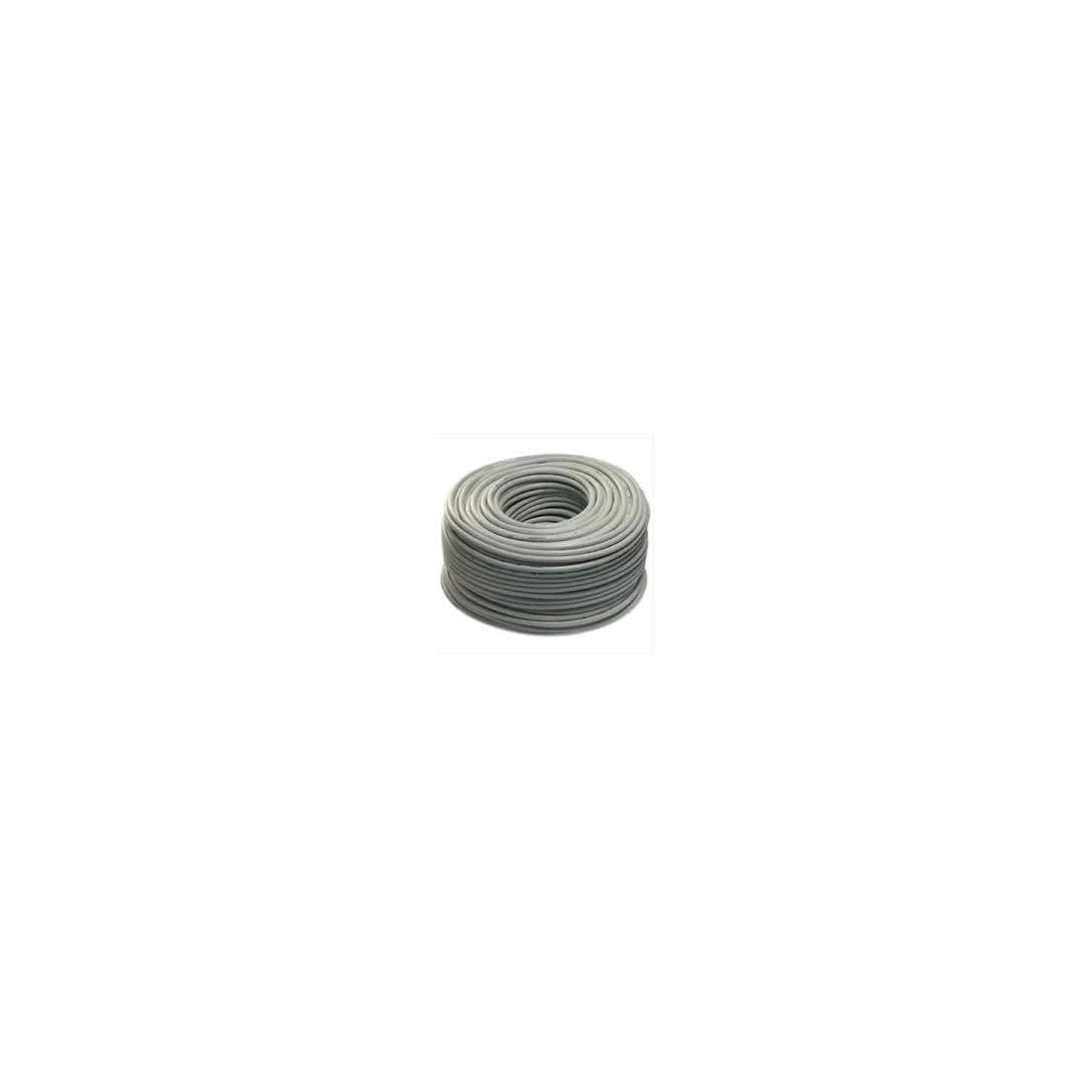

Grey Cable 3 G10B Multipole 10 mmq.
CPRFG16-3G 10B
Nominal voltage U0: 600V(AC) 1800V(DC)
Nominal voltage U: 1000V(AC) 1800V(DC)
Test voltage: 4000V
Maximum voltage Um: 1200V(AC) 1800V(DC)
Maximum operating temperature: 90 °C
Maximum short circuit temperature for sections up to 240mm²: 250 °C
Maximun short circuit temperature for sections over 240mm²: 220 °C
Min. operating temperature (without mechanical shocks): -15 °C
Minimum installation and use temperature: °C
- Tube Diameter (mm)
- 10
- Product type
- Cable
- Colour
- Grey
DESCRIPTION
Multi-core power cable HEPR insulated (G16 quality), PVC sheated, with special fire reaction characteristics according to Costruction Products Regulation (CPR).
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
