ELECTRIC STACKERS

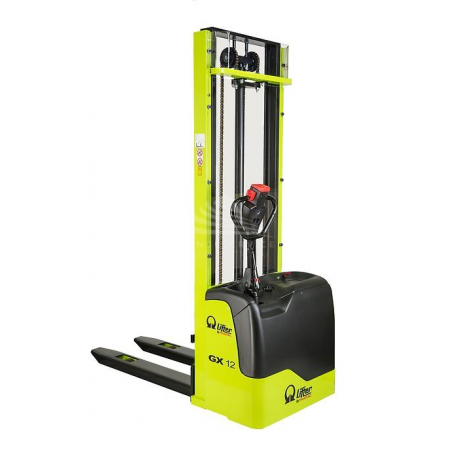

Type of propulsion: Electric Drive system: Accompaniment Load capacity: 1200 kg Number of rear wheels: 2 Quantity of front wheels: 1 drive + 1 Mast height closed: 1787 mm Lifting height: 2410 mm Total width: 800 mm Fork width: 150 mm Fork length: 1150 mm Fork width: 560 mm Stowage aisle: 2210 mm Turning radius: 1430 mm Travel...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 1987 mm Lift height: 2810 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2210 mm Turning...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 1787 mm Lift height: 2410 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2210 mm Turning...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 1787 mm Lift height: 2410 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2210 mm Turning...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 1787 mm Lift height: 2410 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2210 mm Turning...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 1987 mm Lift height: 2810 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2210 mm Turning...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 2250 mm Normal free lifting: 80 mm Lift height: 3410 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 2250 mm Normal free lifting: 80 mm Lift height: 3410 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 2250 mm Normal free lifting: 80 mm Lift height: 3410 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 2600 mm Normal free lifting: 80 mm Lift height: 4110 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 4 Height mast lowered: 1965 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1920 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2330 mm<br...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 4 Height mast lowered: 1788 mm Lift height: 2410 mm Overall lenght: 1920 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2330 mm Turning radius: 1550 mm

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 4 Height mast lowered: 1988 mm Lift height: 2810 mm Overall lenght: 1920 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2330 mm Turning radius: 1550 mm

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 4 Height mast lowered: 2258 mm Normal free lifting: 80 mm Lift height: 3410 mm Overall lenght: 1920 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2330 mm Turning radius: 1550...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 4 Height mast lowered: 2435 mm Normal free lifting: 80 mm Lift height: 3760 mm Overall lenght: 1920 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2330 mm Turning radius: 1550...

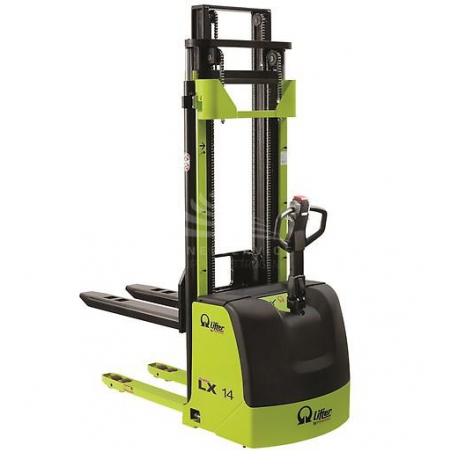

Drive: Electric Operator type: Pedestrian Load capacity: 1400 Kg Quantity rear wheels: 4 Height mast lowered: 1985 mm Lift height: 4110 mm Overall lenght: 1966 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2380 mm Turning radius: 1613 mm

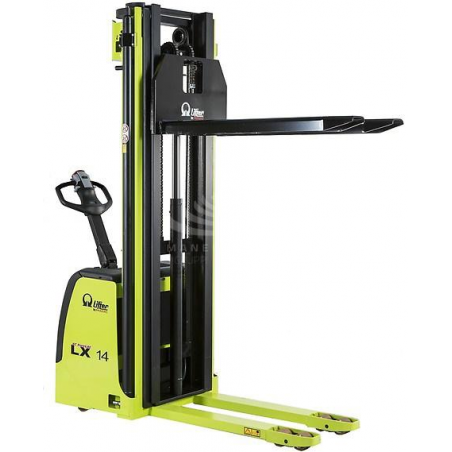

Drive: Electric Operator type: Pedestrian Load capacity: 1400 Kg Quantity rear wheels: 4 Height mast lowered: 1994 mm Normal free lifting: 1370 mm Lift height: 4110 mm Overall lenght: 1966 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2380 mm Turning radius:...

Drive: Electric Operator type: Pedestrian Load capacity: 1400 Kg Quantity rear wheels: 4 Height mast lowered: 2080 mm Lift height: 4410 mm Overall lenght: 1966 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1000 mm Distance between fork arms: 560 mm Aisle width: 2380 mm Turning radius: 1613 mm

Drive: Electric Operator type: Pedestrian Load capacity: 1400 Kg Quantity rear wheels: 4 Height mast lowered: 2089 mm Normal free lifting: 1470 mm Lift height: 4410 mm Overall lenght: 1966 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2380 mm Turning radius:...

Drive: Electric Operator type: Pedestrian Load capacity: 1400 Kg Quantity rear wheels: 4 Height mast lowered: 2285 mm Lift height: 5025 mm Overall lenght: 1966 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2380 mm Turning radius: 1613 mm

Drive: Electric Operator type: Pedestrian Load capacity: 1400 Kg Quantity rear wheels: 4 Height mast lowered: 2294 mm Normal free lifting: 1675 mm Lift height: 5025 mm Overall lenght: 1966 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2380 mm Turning radius:...

Drive: Electric Operator type: Pedestrian Load capacity: 1600 Kg Quantity rear wheels: 4 Height mast lowered: 1965 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1944 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2365 mm<br...

Drive: Electric Operator type: Pedestrian Load capacity: 1600 Kg Quantity rear wheels: 4 Height mast lowered: 1765 mm Lift height: 2410 mm Overall lenght: 1944 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2365 mm Turning radius: 1613 mm

Drive: Electric Operator type: Pedestrian Load capacity: 1600 Kg Quantity rear wheels: 4 Height mast lowered: 1965 mm Lift height: 2810 mm Overall lenght: 1944 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2365 mm Turning radius: 1613 mm

Drive: Electric Operator type: Pedestrian Load capacity: 1600 Kg Quantity rear wheels: 4 Height mast lowered: 2265 mm Lift height: 3410 mm Overall lenght: 1944 mm Overall width: 800 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2365 mm Turning radius: 1613 mm

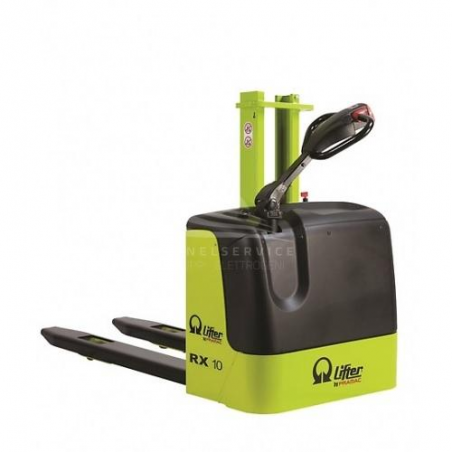

Drive: Electric Operator type: Pedestrian Load capacity: 1000 Kg Quantity rear wheels: 2 Height mast lowered: 1270 mm Normal free lifting: 810 mm Lift height: 810 mm Overall lenght: 1675 mm Overall width: 794 mm Width fork: 150 mm Lenght fork: 1153 mm Distance between fork arms: 560 mm Aisle width: 2120 mm Turning...

Drive: Electric Operator type: Pedestrian Load capacity: 1000 Kg Quantity rear wheels: 2 Height mast lowered: 1970 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1675 mm Overall width: 794 mm Width fork: 150 mm Lenght fork: 1153 mm Distance between fork arms: 560 mm Aisle width: 2120 mm<br...

Drive: Electric Operator type: Pedestrian Load capacity: 1000 Kg Quantity rear wheels: 2 Height mast lowered: 1970 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1675 mm Overall width: 794 mm Width fork: 150 mm Lenght fork: 1153 mm Distance between fork arms: 560 mm Aisle width: 2120 mm<br...

Propulsion Type: Electric Driving System: Accompaniment Load capacity: 1000 Kg Rear wheels quantity: 2 Front wheels quantity: 1 drive + 1 Closed mast height: 1994 mm Free lift: 1370 mm Lifting height: 4110 mm Total length: 1800 mm Total width: 800 mm Fork width: 150 mm Fork length: 1150 mm Width between forks: 560 mm Storage...

Drive: Electric Operator type: Pedestrian Load capacity: 1200 Kg Quantity rear wheels: 2 Quantity front wheels: 1 driven + 1 Height mast lowered: 1987 mm Lift height: 2810 mm Overall lenght: 1760 mm Overall width: 800 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2210 mm Turning...

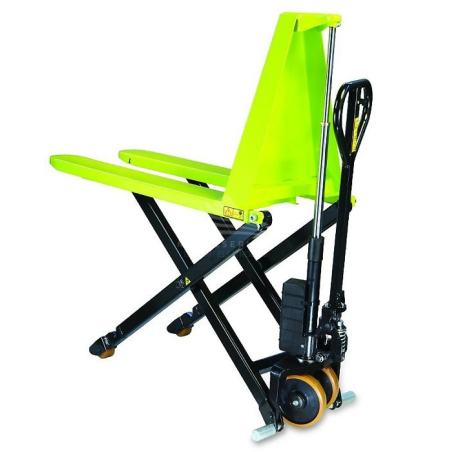

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Lift height: 715 mm Overall lenght: 1526 mm Overall width: 540 mm Width fork: 160 mm Lenght fork: 1150 mm Distance between fork arms: 540 mm Aisle width: 2019 mm Turning radius: 1369 mm

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Lift height: 715 mm Overall lenght: 1526 mm Overall width: 680 mm Width fork: 160 mm Lenght fork: 1150 mm Distance between fork arms: 680 mm Aisle width: 2019 mm Turning radius: 1369 mm

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Lift height: 715 mm Overall lenght: 1910 mm Overall width: 540 mm Width fork: 160 mm Lenght fork: 1525 mm Distance between fork arms: 540 mm Aisle width: 2275 mm Turning radius: 1666 mm

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Lift height: 715 mm Overall lenght: 2179 mm Overall width: 540 mm Width fork: 160 mm Lenght fork: 1800 mm Distance between fork arms: 540 mm Aisle width: 2591 mm Turning radius: 1886 mm

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Lift height: 715 mm Overall lenght: 2379 mm Overall width: 540 mm Width fork: 160 mm Lenght fork: 2000 mm Distance between fork arms: 540 mm Aisle width: 2591 mm Turning radius: 1886 mm

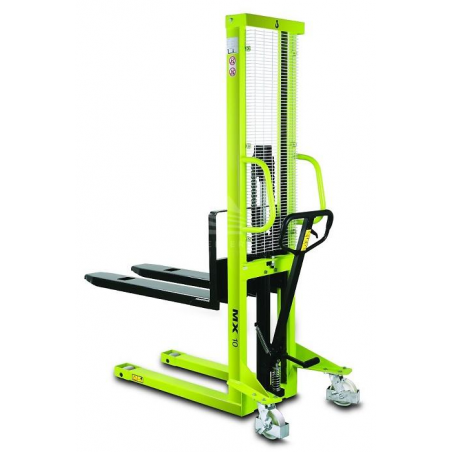

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Quantity rear wheels: 2 Height mast lowered: 2080 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1690 mm Overall width: 740 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 550 mm Aisle width: 2166 mm Turning...

Drive: Manual Operator type: Pedestrian Load capacity: 500 Kg Quantity rear wheels: 2 Height mast lowered: 1490 mm Normal free lifting: 910 mm Lift height: 910 mm Overall lenght: 1650 mm Overall width: 740 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 550 mm Aisle width: 2166 mm Turning...

Drive: Manual Operator type: Pedestrian Load capacity: 500 Kg Quantity rear wheels: 2 Height mast lowered: 2080 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1690 mm Overall width: 740 mm Width fork: 170 mm Lenght fork: 1150 mm Distance between fork arms: 550 mm Aisle width: 2166 mm Turning...

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Quantity rear wheels: 2 Height mast lowered: 1970 mm Normal free lifting: 1510 mm Lift height: 1510 mm Overall lenght: 1750 mm Overall width: 750 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2336 mm Turning...

Drive: Manual Operator type: Pedestrian Load capacity: 1000 Kg Quantity rear wheels: 2 Height mast lowered: 2370 mm Normal free lifting: 1910 mm Lift height: 1910 mm Overall lenght: 1750 mm Overall width: 750 mm Width fork: 150 mm Lenght fork: 1150 mm Distance between fork arms: 560 mm Aisle width: 2336 mm Turning...
