CARRELLI CINGOLATI

Flat load capacity: 500 Kg Slope load capacity: 350 Kg Engine: GXV160 Power supply: Gasoline Net power (SAE J1349): 3600 rpm Fuel tank capacity: 3. 1 l Acoustic power: 99 dB(A) Deck length: 1425 mm Deck width: 770 mm Deck height: 592 mm Length: 2140 mm Width: 650 mm Height: 1100mm Dry weight: 244

Load capacity flat: 500 kg Load capacity on incline: 350 kg Maximum height of load - flat surface: 900 mm Maximum speed forward: 4.3 Km/h Maximum speed in reverse: 3.6 Km/h Maximum inclination forward: 15 degrees Maximum inclination backwards: 15 degrees Flatbed length: 1200 mm Platform width: 560 mm Platform height: 200 mm

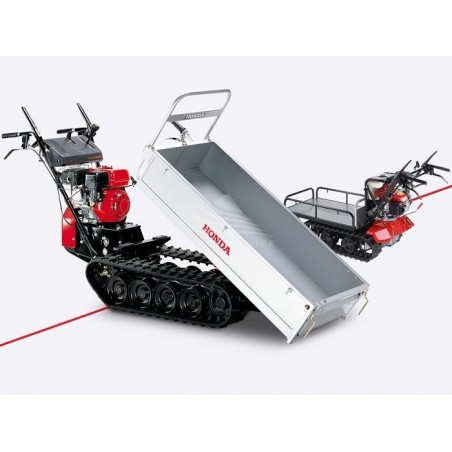

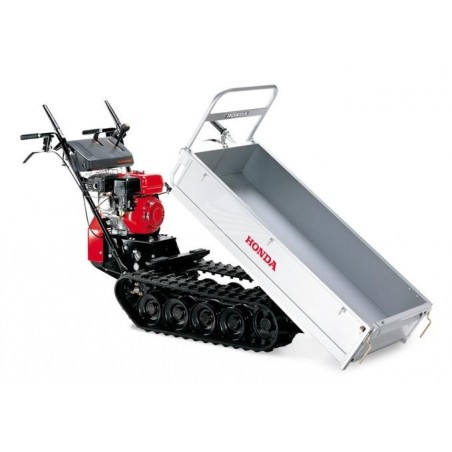

Starting: Recoil Transmission: Hydrostatic Max. forward speed: 0–4.3 km/h Max. reverse speed: 0–3.6 km/h Body: 760 x 1425 x 592 mm – Capacity 330 litres Body lift: Hydraulic pantograph <p...
