UPC

OUT OF PRODUCTION Type of phase: Single-phase Continuous Power: 3 KVA / 3 KW Maximum Power (5s): 6 KVA / 6 KW Voltage VAC: 230 Frequency (Hz ): 50 Battery Type: Li-Ion NMC Input socket: 1 x 32A 230V IEC 60309 Socket panel: 2 x 16A 230V IEC 60309 Battery nominal capacity: 7.5 KWh Usable energy (@ 80% DoD): 6 KWh ...

OUT OF PRODUCTION Type of phase: Single-phase Continuous Power: 5 KVA / 5 KW Maximum Power (5s): 10 KVA / 10 KW Voltage VAC: 230 Frequency (Hz ): 50 Battery type: Li-Ion NMC Input socket: 1 x 32A 230V IEC 60309 Socket panel: 2 x 16A 230V IEC 60309 Battery nominal capacity: 12, 5 KWh Usable energy (@ 80% DoD): 10 KWh <br...

OUT OF PRODUCTION Type of phase: Single-phase Continuous power: 10 KVA / 10 KW Maximum power (5s): 20 KVA / 20 KW VAC voltage: 230 Frequency (Hz ): 50 Battery type: Li-Ion NMC Input socket: 1 x 32A 230V IEC 60309 Socket panel: 1 x 32A 230V IEC 60309/1 x 16A 230V IEC 60309 Nominal battery capacity: 15 KWh Usable energy (@ 80% DoD): 12...

DISCONTINUED PRODUCT Type of phase: Single-phase / Three-phase Continuous power: 60 KVA / 48 KW Maximum power (5s): 150 KVA / 120 KW VAC voltage: 230/400 Frequency (Hz): 50 Battery type: Li-Ion NMC Input socket: 2 x 125A 400 / 230V IEC 60309 Socket panel: 1 x 32A 230V / 2 x 32A 400 / 230 V / 1 x 63A 400 / 230V / 1 x 125A 400 /...

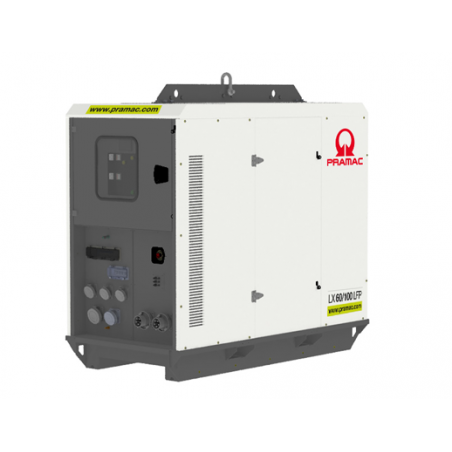

Power output (continuous): 60 kVA Peak power (5s): 120 kW Voltage: 400/230 V Frequency: 50 Hz Phases: 3 Battery specifications Battery (type): Li-Ion LFP Nominal battery voltage: 48 V Battery life (at 90% DoD): 6000 cycles Nominal battery capacity (size): 96 kWh AC-side usable energy (@90% DoD): 82 kWh System throughput: 125 A<br...
