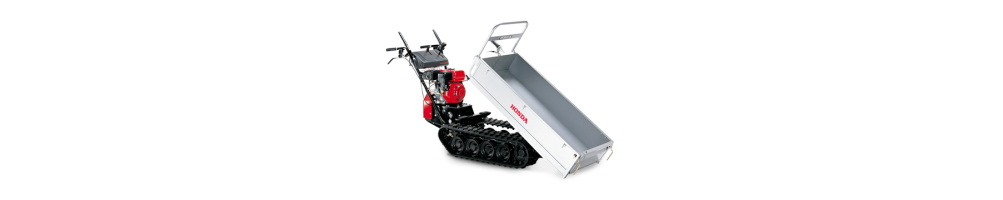

CRAWLER TROLLEY

Engine: MCH LS 208 Displacement: 208 cc Power: 4. 1 KW Engine RPM: 3600 rpm Fuel: Gasoline Transmission: Mechanical Number of Gears: 6+2 Steering: with mechanical disengagements Tipping: Manual Tipping Support: GAS Piston Displacement: Fixed Body Size: 82 x 54 x 31.4 cm Maximum slope allowed: 30% Flat load...

Engine: MCH LS208 Displacement: 208 cc Power: 4,1 KW Engine revs: 3600 rpm Fuel feed: Petrol Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical clutch Safety systems: Lever operated with roller Body size: 109x54x31,4 cm Tipping: Manual Tipping support: Gas piston Maximum slope allowed: 35% Flat...

Engine: HONDA GX160 Displacement: 163 cc Power: 3.6 KW Engine speed: 3600 rpm Fueling: Gasoline Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical disengagement Tilting: Manual Tilting support: GAS piston Displacement: Fixed Body Size: 82 x 54 x 31.4 cm Maximum slope allowed: 30% Load capacity in flat: 350...

Engine: MCH LS208 Displacement: 208 cc Power: 4,1 KW Engine revs: 3600 rpm Fuel feed: Petrol Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical clutch Safety system: Lever operated with roller Body size: 109x54x31,4 cm Tipping: Hydraulic Max hydraulic pressure: 160 bar Hydraulic flow rate: 9.6...

Engine: MCH LS208 Displacement: 208 cc Power: 4,1 KW Engine revs: 3600 rpm Fuel feed: Gasoline Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical clutch Safety systems: Lever operated with roller Body size: 103x73x49 cm Tipping: Hydraulic Max hydraulic pressure: 160 bar Hydraulic flow rate: 9.6...

Engine: HONDA GX200, OHV 4 Stroke Displacement: 196 cc Power: 4.1 KW Engine RPM: 3600 rpm Fueling: Gasoline Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical disengagements Safety systems: Lever operated with roller Body size: 103x73x49 cm Tilting: Hydraulic Maximum hydraulic pressure: 160 bar Hydraulic flow...

Engine: Honda GX200, OHV 4 strokes Displacement: 196 cc Power: 4,1 KW Engine revs: 3600 rpm Fuel: Petrol Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical disengagement Safety systems: Lever operated with roller Body size: 109x54x31,4 cm Tipping: Manual Tipping support: Gas piston Maximum slope...

Engine: HONDA GX200, OHV 4 Strokes Displacement: 196 cc Power: 4,1 KW Engine rpm: 3600 rpm Fuel: Gasoline Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical disengagement Safety systems: Lever operated with roller Body size: 109x54x31,4 cm Tipping: Hydraulic Max hydraulic pressure: 160 bar Hydraulic...

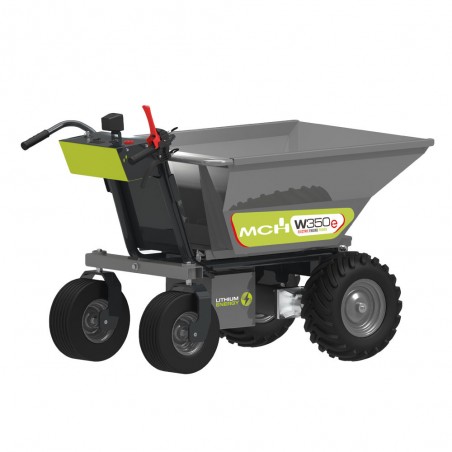

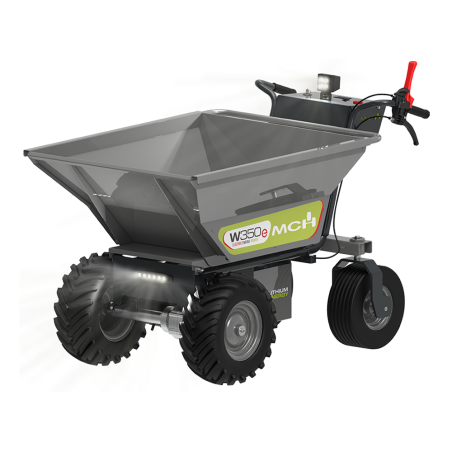

Motor: MCH Electric Mechanical Power: 1.36 Hp Power: 1.1 KW Type of Starter: Soft Start & Stop Battery Type: Lithium Voltage: 48 Vdc Current: 60 Ah Total Charging Time: 4.5 hours Autonomy: 6 to 10 hours Transmission: Mechanical Number of Gears: 6+2 Steering: with mechanical disengages Safety Systems: Lever with roller Body size:...

Motor: MCH CC Servomotor Mechanical Power: 0.82 Hp Power: 0.6 KW Start Type: Soft Start & Stop Battery Type: Lithium Voltage: 48 Vdc Current: 60 Ah Total Charging Time: 4.5 hours Autonomy: 6 to 10 hours Transmission: Mechanical Differential Number of Gears: 1+1 Steering: Autonomous with Differential Safety Systems:...

Motor: MCH CC Servomotor Mechanical Power: 0.82 Hp Power: 0.6 KW Start Type: Soft Start & Stop Battery Type: Lithium Voltage: 48 Vdc Current: 60 Ah Total Charging Time: 4.5 hours Autonomy: 6 to 10 hours Transmission: Mechanical Differential Number of Gears: 1+1 Steering: Autonomous with Differential Safety Systems:...

Motor: MCH Electric Mechanical power: 2,02 Hp Power: 1,5 KW Starting type: Soft Start & Stop Battery type: Lithium Voltage: 48 Vdc Current: 80 Ah Total recharge time: 4,5 hours Range: from 6 to 10 hours Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical release Safety systems: Roller lever Body...

Engine: MCH LS208 4-stroke Displacement: 208 cc Power: 4.1 KW Engine RPM: 3600 rpm Fueling: Gasoline Transmission: Hydrostatic Feed speed: 1 Speed Hydraulic motor type: orbitals Maximum pressure: 160 bar Pump capacity: 12.6 l/m Dumper volume: 0.21 m 3 Tilting: Hydraulic Maximum slope allowed: 20% Flat load capacity:...

Motor: MCH Electric Mechanical power: 2,02 Hp Power: 1,5 KW Starting type: Soft Start & Stop Battery type: Lithium Voltage: 48 Vdc Current: 80 Ah Total recharge time: 4,5 hours Range: from 6 to 10 hours Transmission: Mechanical Number of gears: 6+2 Steering: with mechanical release Safety systems: Roller lever Body size:...

Engine: Honda GX200, OHV 4-stroke Displacement: 196 cc Power: 4.1 KW Engine RPM: 3600 rpm Fueling: Gasoline Transmission: Hydrostatic Feed speed: 1 Speed Hydraulic motor type: orbitals Maximum pressure: 160 bar Pump capacity: 12.6 l/m Dumper volume: 0.21 m 3 Tilting: Hydraulic Maximum slope allowed: 20% Flat load...

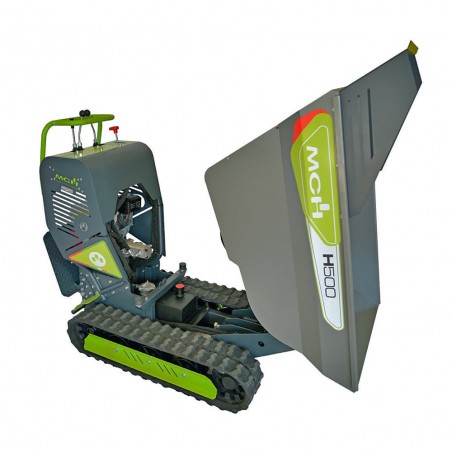

Engine: MCH LS 208 OHV 4-stroke Displacement: 208 cc Power: 4.1 KW Engine speed: 3600 rpm max. payload (flat/slope): 500 kg / 350 kg max greadability 20% net weight 395 kg overall dimensions 147.8x83.5x125 cm tipper dimensions 105x72x51cm hydraulic tipping system hydraulic system pressure - 160 bar maximum pump capacity - 12.6...

Engine: Honda GX200, OHV 4-stroke Displacement: 196 cc Power: 4.1 KW Engine RPM: 3600 rpm Fuel: Gasoline Transmission: Hydrostatic Advance Speed: 1 Speed 2.5 Km/h Hydraulic motor type: Orbital Hydraulic motor displacement: 200cc Hydraulic pump type: Double gear Displacement: Fixed Maximum pressure: 180 bar Operating...

Engine: KPC KD 178 Displacement: 296 cc Power: 4.7 KW Emission standard: Stage V Fueling: Diesel Start: Electric Transmission: Hydrostatic Feed speed: 1 Speed 2.5 Km/h Hydraulic motor type: Orbital Hydraulic motor displacement: 200cc Hydraulic pump type: Double gear Displacement: Fixed Maximum pressure: 180 bar Operating...

Engine: KPC KD 178 Displacement: 296 cc Power: 4.7 KW Emission Standard: Stage V Fueling: Diesel Start: Electric Transmission: Hydrostatic Feed speed: 1 Speed 2.5 Km/h Hydraulic motor type: Orbital Hydraulic motor displacement: 200cc Hydraulic pump type: Double gear Displacement: Fixed Maximum pressure: 180 bar Operating...

DISCONTINUED PRODUCT Engine: Honda GX270 Displacement: 270 cc Power: 6.6 KW Fueling: Gasoline Boosting: Breakaway, Self winding Transmission: Hydrostatic Maximum speed 2 Speed: 2 km/h / 3,6 km/h Hydraulic motors type: Orbital Motor cylinder. Hydraulic: 250 cc Hydraulic pump type: Single group 2 + Triple divider<br...

Engine: Honda GX270 Displacement: 270 cc Power: 6.6 KW Fueling: Gasoline Transmission: Hydrostatic Maximum speed 2 Speed: 2 km/h / 3,6 km/h Hydraulic motors type: Orbital Motor cylinder. Hydraulic: 250 cc Hydraulic pump type: Single group 2 + Triple divider Displacement: Fixed Maximum pressure: 180 bar Operating pressure: 150 bar<br...

Engine: Yanmar L70-E Displacement: 320 cc Power: 4.8 KW Engine speed: 3600 rpm Emissions regulation: Stage V Fuel feed: Diesel Transmission: Hydrostatic Forward speed: 1 Speed 2,5 Km/h Hydraulic motors type: Orbital Hydraulic motors displacement: 200cc Hydraulic pump type: Double gear Displacement: Fixed Maximum...

Engine: Yanmar L70-E Displacement: 320 cc Power: 4.8 KW Engine speed: 3600 rpm Fuel feed: Diesel Emissions regulation: Stage V Starting: Electric Transmission: Hydrostatic Forward speed: 1 Speed 2,5 Km/h Hydraulic motors type: Orbital Hydraulic motors displacement: 200cc Hydraulic pump type: Double gear Displacement:...

Product features: Upper dumper protection Dumper 0.32m³ Mudguard Track tensioning system Operator platform, foldable Tilt roller system Lifting hooks Technical data: Maximum load: 800 kg Engine: Honda GX390 Power supply: Petrol  ...

Engine: Honda GX270 Displacement: 270 cc Power: 6.6 KW Fueling: Gasoline Transmission: Hydrostatic Maximum speed 2 Speed: 2 km/h / 3,6 km/h Hydraulic motors type: Orbital Motor cylinder. Hydraulic: 250 cc Hydraulic pump type: Single group 2 + Triple divider Displacement: Fixed Maximum pressure: 180 bar Operating pressure: 150 bar<br...

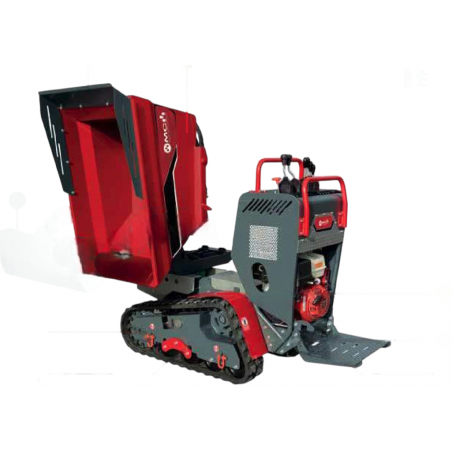

Model: MCH H780-GXE Type: Tracked carrier Maximum load capacity: 800 kg Engine: Honda GX390 Fuel: gasoline length: 78 cm Self-loading shovel Dumper 0.32m³ Upper dumper protection Fender Track tensioning system Operator platform, foldable Tilting roller system ...
