COMPRESSORS

Power: 75 KW - 100 HP Air yield: 8300 Lt/min - 498 m³/h - 293 cfm Pressure: 13 bar - 188 psi BSP: 2'' Sound pressure: 72 dB(A) Length: 1100mm Width: 1800 mm Height: 2150 mm Weight: 1720 kg

Power: 55 KW - 75 HP Max-min air flow: 9300-3700 Lt/min - 558-222 m³/h - 328-131 cfm Pressure: 7.5 bar - 109 psi BSP: 2'' Sound pressure: 70 dB(A) Length: 1100 mm Width: 1800 mm Height: 2150 mm Weight: 1686 Kg

DISCONTINUED PRODUCT

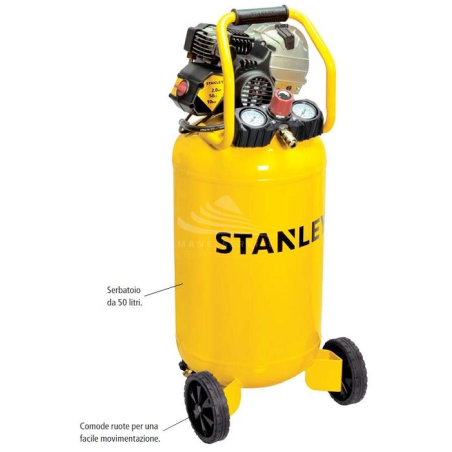

Model: HY227 Power: 2 HP / 1.5 kW Voltage: 230 V Frequency: 50 Hz Number of cylinders: 1 Speed: 3400 rpm Tank capacity: 50 L Maximum pressure: 10 bar Air intake: 222 L/min Lubricated: Yes Package dimensions: 340 x 340 x 870 mm Gross weight: 24.2 kg

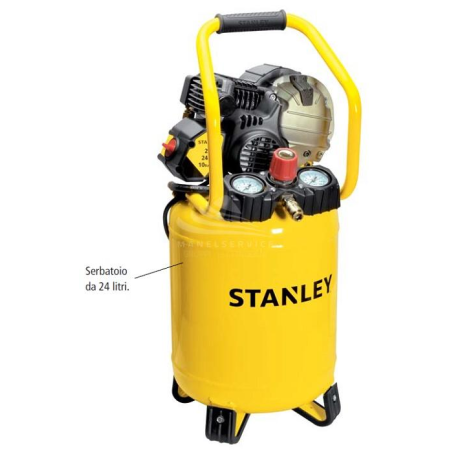

Phase Type: Single-phase Voltage: 230 V Frequency: 50 Hz Power: 2 HP / 1.5 KW Tank capacity: 24 Lt Pressure: 8 bar Intake air: 195 Lt/min Length: 554 mm Width: 252 mm Height: 545 mm Weight: 21.5 Kg

Phase Type: Single-phase Voltage: 230 V Frequency: 50 Hz Power: 2 HP / 1.5 KW Tank capacity: 50 Lt Pressure: 8 bar Intake air: 195 Lt/min Length: 765 mm Width: 330 mm Height: 720 mm Weight: 31 Kg

OUT OF PRODUCTION Phase Type: Single-phase Voltage: 230 V Frequency: 50 Hz Power: 3 HP / 1.5 KW Tank capacity: 50 Lt Pressure: 8 bar Intake air: 330 Lt/min Length: 700 mm Width: 315 mm Height: 650 mm Weight: 45 Kg

Phase Type: Single-phase Voltage: 230 V Frequency: 50 Hz Power: 3 HP / 1.5 KW Tank capacity: 100 Lt Pressure: 8 bar Intake air: 250 Lt/min Length: 1090 mm Width: 390 mm Height: 760 mm Weight: 45 Kg

Phase Type: Single-phase Supply voltage: 230 V Pumping air intake: 365 lt/min. Pumping type: belt type Maximum pressure: 10 bar Electric motor power: 3 HP Tank: Horizontal 200 lt Length: 890 mm Width: 1440 mm Height: 550 mm Net weight: 103 Kg Trailer

Voltage:400V Frequency: 50Hz Pump: BK120 Cylinder capacity: 500 l RPM: 1100 RPM Power: 7.5 KW - 10 HP Air yield: 1080 Lt/min - 38.1 cfm Pressure: 10 bar - 145 psi BSP: 2' Sound Pressure: 64 dB(A) Length: 980 mm Width: 1290 mm Height: 1060 mm Weight: 220 Kg

Engine: Honda Fuel: petrol Pump: MK113 Tank capacity: 200 l RPM: 1300 RPM Power: 6.7 KW - 9 HP Air output: 500 Lt/min - 17.7 cfm Pressure: 10 bar - 145 psi BSP: 2' Length: 1450 mm Width: 665 mm Height: 1330 mm Weight: 138 kg

Engine: Lombardini Pump: BK119 Cylinder capacity: 270 l RPM: 1400 RPM Power: 7.5 KW - 10 HP Air yield: 945 Lt/min - 33.3 cfm Pressure: 10 bar - 145 psi BSP: 2' Length: 1640 mm Width: 560 mm Height: 1330 mm Weight: 183 Kg

Phase Type: Single Phase Power supply voltage: 230 V Maximum pressure: 10 bar Tank volume: 90 l Sound emission level: 92dB(A)/7m Motor type: single-phase electric Nominal power: 2 Hp Silenced: No Sucked air: 235 l/min Pump type: single stage Lubrication: oil Number of cylinders: 2 Cooling collector: No Transmission type:...

Phase Type: Single Phase Power supply voltage: 230 V Maximum pressure: 10 bar Tank volume: 90 l Sound emission level: 94dB(A)/7m Motor type: single-phase electric Nominal power: 3 Hp Silenced: No Sucked air: 365 l/min Pump type: single stage Lubrication: oil Number of cylinders: 2 Cooling collector: No Transmission type:...

Phase type: Single-phase Supply voltage: 230 V Maximum pressure: 10 bar Tank volume: 150 l Noise emission level: 74dB(A)/7m Motor type: single-phase electric Nominal power: 3 Hp Silenced: No Air intake: 365 l/min Pump type: single stage Lubrication: oil Number of cylinders: 2 Cooling collector: No Transmission type: belt<br...

Voltage:230V Frequency:50Hz Pump: OL100 Cylinder capacity: 6 l RPM: 1450 RPM Power: 0.75KW - 1HP Air output: 105Lt/min - 3.7cfm Pressure: 8 bar - 116 psi BSP: 2' Acoustic pressure: 59 dB(A) Length: 380 mm Width: 380 mm Height: 385 mm Weight: 17.1 Kg
